Interior Trim - Lower

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Lower

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

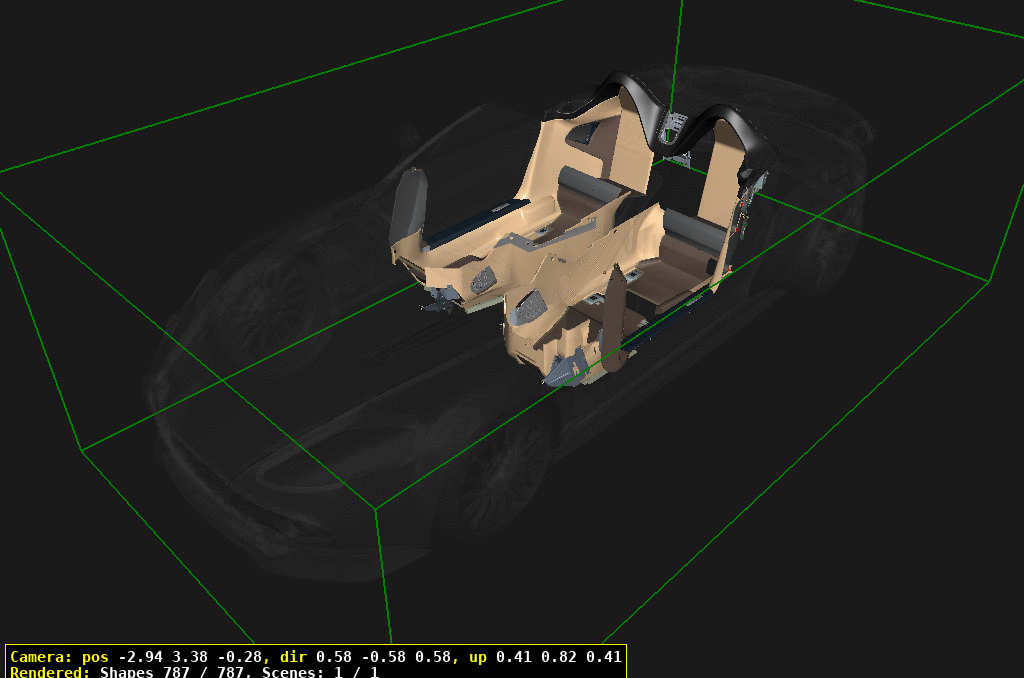

Interior Trim - Lower of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
20 ED3302349ADW
A-POST LWR ASSY LH 		- 1 Enquire
30 ED3302348ADW
A-POST LWR ASY RH 		- 1 Enquire
40 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10 		- 2 Enquire
50 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)
Pack of 20 		- 2 Enquire
60 6G33100N00AA
Adhesive Tape, Double Sided 		- A/R Enquire
70 FD33100A90AA
RH RR FLR SPRT PNL 		- 1 Enquire
80 4G43M4D4515AA
Foam Strip, Handbrake Gaiter 		- 1 Enquire
90 703747
SCREW &WASHER-M6x25 		- 2 Enquire
100 DD3319L525AA
Scuff Plate, Accelerator, Upper
LHD only 		- 1 Enquire
110 FD33100A91AA
LH RR SUPT PANEL 		- 1 Enquire
120 CD338310016
Kit, Floor Carpets, LHD
LHD Heavyweight 		- 1 Enquire
121 CD338310017
Kit, Floor Carpets, LHD
LHD Lightweight 		- 1 Enquire
122 CD338310014
Kit, Floor Carpets, RHD
RHD Heavyweight 		- 1 Enquire
123 CD338310015
Kit, Floor Carpets, RHD
RHD Lightweight 		- 1 Enquire
130 CD33044J09AA
Energy Absorber, Foot Rest
LHD 		- 1 Enquire
140 9G4312020BA
LHD FOOTREST TOP PAD ASSY
LHD Silver Pedals 		- 1 Enquire
141 CD3312020CA
Cover Plate, Foot Rest
LHD Black Pedals 		- 1 Enquire
150 CD333N328BB
FOOTREST BRKT
LHD 		- 1 Enquire
160 DD33130B53BB
Support, Floor Carpet, LH
LHD 		- 1 Enquire
161 DD33130B53AB
Support, Floor Carpet, LH
RHD 		- 1 Enquire
170 DD33130B52BB
Support, Floor Carpet, RH
LHD 		- 1 Enquire
171 DD33130B52AB
Support, Floor Carpet, RH
RHD 		- 1 Enquire
180 DD33311A76AA
Speaker Grille, Footwell, RH, Black
Black 		- 1 Enquire
181 DD33311A76BA
Speaker Grille, Footwell, RH, Iridium
Iridium 		- 1 Enquire
210 CD3310K973AEW
HLBRD ASSY LH 		- 1 Enquire
220 DD33311A77AA
Speaker Grille, Footwell, LH, Black
Black 		- 1 Enquire
221 DD33311A77BA
Speaker Grille, Footwell, LH, Iridium
Iridium 		- 1 Enquire
240 703168
NUT M6 HF PTM 8 		- 1 Enquire
270 22AB628GP
ASSY FENDER MNTG BRKT OUTER LH 		- 2 Enquire
280 FD33281B11ABW
KIT ASSY SD CRPT LHD
LHD 		- 1 Enquire
281 FD33281B10ABW
KIT ASSY SD CRPT RHD
RHD 		- 1 Enquire
290 4G43831237ABW
HANDBRAKE GAITER ASSY LHD
LHD 		- 1 Enquire
291 4G43831236ABW
HANDBRAKE GAITER ASSY RHD
RHD 		- 1 Enquire
300 GD33201A49AA
SHLD SPKR GRL PR LH 		- 1 Enquire
310 703026
Screw, M5 x 16, Hex Flange Head 		- 3 Enquire
330 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 		- 2 Enquire
340 697564
Retainer, Push On 		- 3 Enquire
350 706711
SCREW-M5x16 CSK BLK 		- 4 Enquire
360 22AB631GP
ASSY FENDER MNTG BRKT OUTER RH 		- 2 Enquire
370 DD33130B14AB
Bracket, Carpet Support 		- 2 Enquire
380 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 		- 2 Enquire
390 AD43666A40AB
CARPET FINISHER RHS COMMON 		- 2 Enquire
400 AD43666A41AB
CARPET FINISHER LHS COMMON 		- 2 Enquire
420 6G3368D11AA
Screw, M5 x 12, Cap Head 		- 4 Enquire
430 6G3368D11BA
Screw, M5 x 20, Cap Head 		- 4 Enquire
440 6G3379231AC
Screw, M3.5 x 38, Flat Hd Csk 		- 1 Enquire
500 DD3313242AGW
KIT DOOR PLT SCF 		- 1 Enquire
511 6G33SS106209AAPK
BOLT-M6x20 SKT HD(2)
Bright. Pack of 2 		- 8 Enquire
520 HD3Y132A50AA
NM PLT FRT SILL SCF
'Zagato' 		- 2 Enquire
521 00RX003
BOLT - M6X1X12 - HEX
'Villa D'Este' 		- 2 Enquire
530 703026
Screw, M5 x 16, Hex Flange Head 		- 4 Enquire
540 CD333N234AA
Bracket, Foot Rest
RHD 		- 1 Enquire
550 CD33044J08AA
Energy Absorber, Foot Rest
RHD 		- 1 Enquire
560 22AB636GP
BRKT FNDR REINF LONGI RR RH
RHD, Silver Pedals 		- 1 Enquire
561 6G3312021AA
RH F/R COVER PLATE
RHD, Black Pedals 		- 1 Enquire
600 13A5910CP
BRACKET - DOOR ECU - LH 		- 1 Enquire
610 13A5911CP
BRACKET - DOOR ECU - RH 		- 1 Enquire
620 15AC144CP
CABLE RELEASE - INTERNAL - DOOR LATCH 		- 1 Enquire
640 22AA848GP
ANTI SQUEAK TAPE 0.5MM 120X3 		- 1 Enquire
660 22AA847GP
ANTI SQUEAK TAPE 0.5MM 100X3 		- 2 Enquire
680 00RA525
SCREW - POZI - 2.5X8MM 		- 2 Enquire
690 22AA721GP
SEAL DOOR MIRROR GASKET LOWER RH 		- 2 Enquire
710 22AA720GP
SEAL DOOR MIRROR GASKET LOWER LH 		- 1 Enquire
720 13A4870CP
SEAL - DOOR MIRROR - GASKET - LOWER - RH 		- 1 Enquire
740 13A4868CP
SEAL - DOOR MIRROR - GASKET - LOWER - LH 		- 1 Enquire
750 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH 		- 1 Enquire
760 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH 		- 1 Enquire
770 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH 		- 1 Enquire
780 9D33L312A95BA
REAR QUARTER SPEAKER LHS BLACK 		- 1 Enquire
790 9D33L312A94BA
REAR QUARTER SPEAKER RHS BLACK 		- 1 Enquire
800 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
Pack of 20 		- 2 Enquire
810 11A8434CP
MIRROR GLASS ASSEMBLY - CONVEX - LH
Includes item 780 		- 1 Enquire
820 11A8438CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH
Includes item 790 		- 1 Enquire
830 700242
SCREW M5 X 16 PAN HEAD BLACK 		- 18 Enquire
840 FD3337523AA
EDGE CLIP 		- 14 Enquire
850 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH 		- 1 Enquire
860 11A8446CP
ACTUATOR - DOOR MIRROR GLASS 		- 1 Enquire
870 702587
PLASTIC TRIM PIN 8.0mm x 1.5 		- 12 Enquire
880 4G43015371AA
CAPTIVE U NUT M4 LOCKING 		- 2 Enquire
890 FD3337523AA
EDGE CLIP 		- 4 Enquire
900 11A8453CP
FRAME - DOOR MIRROR GLASS - RH 		- 1 Enquire
910 11A8454CP
FRAME - DOOR MIRROR GLASS - LH 		- 1 Enquire
920 W500002S440
Screw, M5 X 12, Hex Flange Head 		- 4 Enquire
930 702211
SCREW M5x8.0x0.80 PAN HEAD 		- 4 Enquire
940 703121
Screw, M8 x 25, Hex Flange Head 		- 4 Enquire
950 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH 		- 1 Enquire
960 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH 		- 1 Enquire
