Handles and Lock Mechanisms of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Handles and Lock Mechanisms

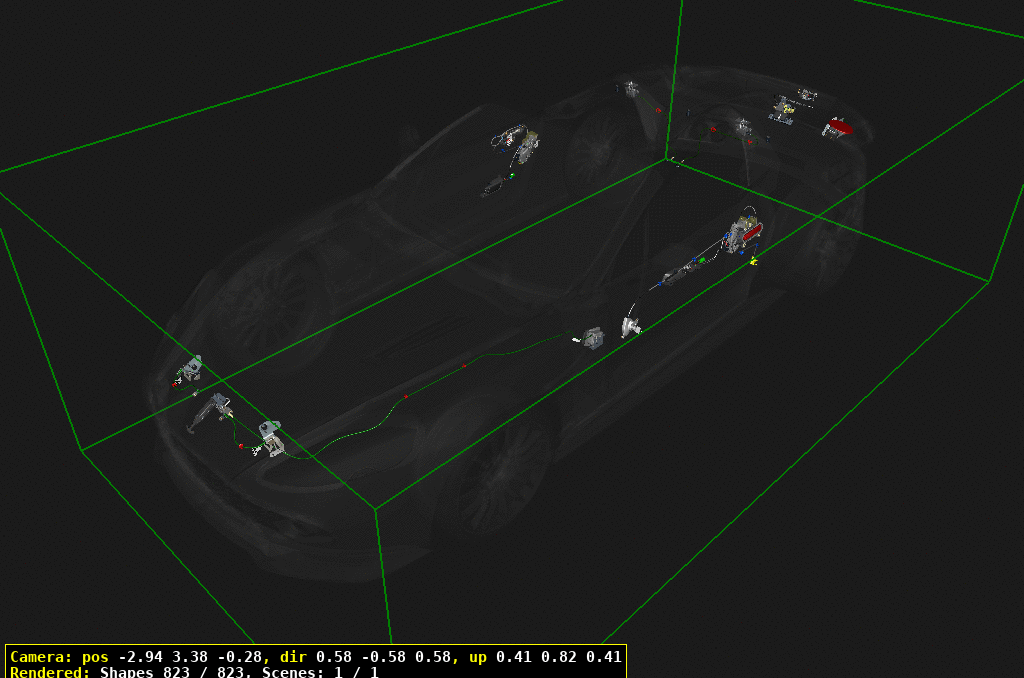

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	CD3316K662AB	Cable Abutment, Hood Secondary Release	CD3316K662AB Cable Abutment, Hood Secondary Release	-	2	Enquire
30	DD4316B768AD	LATCH ASY HOD SEC LH	DD4316B768AD LATCH ASY HOD SEC LH	-	1	Enquire
40	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) Pack of 100	-	2	Enquire
50	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	2	Enquire
60	9G436411062	Lever, Bonnet Release	9G436411062 Lever, Bonnet Release	-	1	Enquire
70	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	1	Enquire
80	DD4316B769AD	LATCH ASY HOOD SE RH	DD4316B769AD LATCH ASY HOOD SE RH	-	1	Enquire
90	DD43915A01AA	Label, Hood Latch Warning	DD43915A01AA Label, Hood Latch Warning	-	2	Enquire
100	CD3316C730AA	Bracket, Hood Release Handle Mounting	CD3316C730AA Bracket, Hood Release Handle Mounting	-	1	Enquire
110	DD4316A945AA	Striker Bar, Secondary Latch, RH	DD4316A945AA Striker Bar, Secondary Latch, RH	-	1	Enquire
120	DD4316A944AA	Striker Bar, Secondary Latch, LH	DD4316A944AA Striker Bar, Secondary Latch, LH	-	1	Enquire
130	DD43405C45AD	Cable, Secondary Latch Release	DD43405C45AD Cable, Secondary Latch Release	-	1	Enquire
140	11A3663CP	BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	11A3663CP BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	-	1	Enquire
150	4G436410063	Bonnet Latch	4G436410063 Bonnet Latch	-	1	Enquire
160	AD4316C656AC	CABLE ASSY HOOD LATC	AD4316C656AC CABLE ASSY HOOD LATC	-	1	Enquire
170	704443	Clip, Plastic, 5 x 6.5 x 2	704443 Clip, Plastic, 5 x 6.5 x 2	-	2	Enquire
180	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping	-	2	Enquire
190	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	2	Enquire
200	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	-	2	Enquire
220	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	10	Enquire
300	CD33F218A01AA	Cable Assy, Front Inside Door Handle	CD33F218A01AA Cable Assy, Front Inside Door Handle	-	2	Enquire
310	CD3322615AG	ASY INSIDE RLSE HNDL	CD3322615AG ASY INSIDE RLSE HNDL	-	1	Enquire
320	CD3322614AE	ASY INSIDE RLSE HNDL	CD3322614AE ASY INSIDE RLSE HNDL	-	1	Enquire
330	AD433710064	SWITCH ASSEMBLY- INNER DOOR	AD433710064 SWITCH ASSEMBLY- INNER DOOR	-	2	Enquire
350	CD33F22050AB	Lockset	CD33F22050AB Lockset	-	1	Enquire
370	704443	Clip, Plastic, 5 x 6.5 x 2	704443 Clip, Plastic, 5 x 6.5 x 2	-	3	Enquire
380	SY9Y9142DA	HTS BRKT	SY9Y9142DA HTS BRKT	-	2	Enquire
381	CD3322405AC	Handle Blade Assy, LH	CD3322405AC Handle Blade Assy, LH Carbon	-	1	Enquire
382	CD3322404AC	Handle Blade Assy, RH	CD3322404AC Handle Blade Assy, RH Carbon	-	1	Enquire
400	CD33221A00AA	Cable Assy, Front Door Outside Handle	CD33221A00AA Cable Assy, Front Door Outside Handle	-	2	Enquire
410	CD33226A28AB	Handle, Door, Exterior, Front	CD33226A28AB Handle, Door, Exterior, Front	-	2	Enquire
420	ED3321813AB	Latch Front Door LH	ED3321813AB Latch Front Door LH	-	1	Enquire
430	ED3321814AB	Latch Assy, Front Door, RH	ED3321814AB Latch Assy, Front Door, RH	-	1	Enquire
440	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm	-	1	Enquire
450	4G43224A72AH	DUMMY LIGHT LENS	4G43224A72AH DUMMY LIGHT LENS	-	2	Enquire
460	4G43224A68AA	Pivot Pin, Outside Handle	4G43224A68AA Pivot Pin, Outside Handle	-	2	Enquire
470	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	6	Enquire
480	GG43AA0231AA	SCW M8X34 CSK FLAT	GG43AA0231AA SCW M8X34 CSK FLAT	-	4	Enquire
500	703073	Screw, M6 x 16, Countersunk, Black	703073 Screw, M6 x 16, Countersunk, Black	-	2	Enquire
510	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	4	Enquire
520	703128	WASHER LOCK M6	703128 WASHER LOCK M6	-	2	Enquire
530	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	4	Enquire
540	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX	-	6	Enquire
550	707147	NUT-M5 HEX FLG GRD 8	707147 NUT-M5 HEX FLG GRD 8	-	2	Enquire
560	ED43226A28AA	BUMP STOP	ED43226A28AA BUMP STOP	-	2	Enquire
600	6G436710237	Handle, Emergency Release, Deck Lid Latch	6G436710237 Handle, Emergency Release, Deck Lid Latch	-	1	Enquire
610	DD4314B529AD	ACTUATOR	DD4314B529AD ACTUATOR	-	1	Enquire
620	6G436710235	Striker, Deck Lid Latch	6G436710235 Striker, Deck Lid Latch	-	1	Enquire
630	DD43F442A66AA	LATCH TAILGATE	DD43F442A66AA LATCH TAILGATE Includes item 635	-	1	Enquire
635	6G436710236	Bezel, Deck Lid Latch	6G436710236 Bezel, Deck Lid Latch	-	1	Enquire
640	22AA722GP	MLDG BASE DOOR MIRROR COVER LWR LH	22AA722GP MLDG BASE DOOR MIRROR COVER LWR LH	-	1	Enquire
650	W502670S442	Screw, 4.2 x 16, Self Tapping	W502670S442 Screw, 4.2 x 16, Self Tapping	-	3	Enquire
660	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10) Pack of 10	-	3	Enquire
670	702517	BOLT M8 x 14 PC T1 PIL 10	702517 BOLT M8 x 14 PC T1 PIL 10	-	3	Enquire
680	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
690	4G4346662AAPK	WSHR SPACING 2mm(10)	4G4346662AAPK WSHR SPACING 2mm(10) Pack of 10	-	4	Enquire
700	13A2055CP	COVER - DOOR MIRROR BASE - LOWER - RH	13A2055CP COVER - DOOR MIRROR BASE - LOWER - RH	-	1	Enquire
720	6G33F9C070AA	ACTUATOR FUEL FILLER	6G33F9C070AA ACTUATOR FUEL FILLER	-	1	Enquire
730	CD33C405B96BD	ASY FU/FL DR LATCH	CD33C405B96BD ASY FU/FL DR LATCH	-	1	Enquire
740	HD3Y405B46AA	ACT ASY FU/FILL BRKT	HD3Y405B46AA ACT ASY FU/FILL BRKT	-	1	Enquire
750	6G3340180BA	Cable, Fuel Filler Flap Release	6G3340180BA Cable, Fuel Filler Flap Release	-	1	Enquire
760	13A2049CP	COVER - DOOR MIRROR BASE - LOWER - LH	13A2049CP COVER - DOOR MIRROR BASE - LOWER - LH	-	1	Enquire
770	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	2	Enquire
780	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
790	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
800	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	8	Enquire
810	00RA140	SCREW - 3X8 - TORX	00RA140 SCREW - 3X8 - TORX	-	1	Enquire
820	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12	-	1	Enquire
830	702994	Nut, M6, Hex Head Thin	702994 Nut, M6, Hex Head Thin	-	4	Enquire
840	JY53AFU1900AA	FIR TREE CABLE TIE	JY53AFU1900AA FIR TREE CABLE TIE	-	3	Enquire
850	6G33N40452AB	Bump Stop Assembly, Deck Lid	6G33N40452AB Bump Stop Assembly, Deck Lid	-	3	Enquire
860	CG433711336	Switch Assembly, Hood Latch	CG433711336 Switch Assembly, Hood Latch	-	2	Enquire
880	6G436410121	STRIKER ASSEMBLY- BONNET	6G436410121 STRIKER ASSEMBLY- BONNET	-	2	Enquire
890	HD3Y250B85BA	M6 NYLON WASHER	HD3Y250B85BA M6 NYLON WASHER	-	2	Enquire
