Parking Brake, Rhd

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Parking Brake, RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

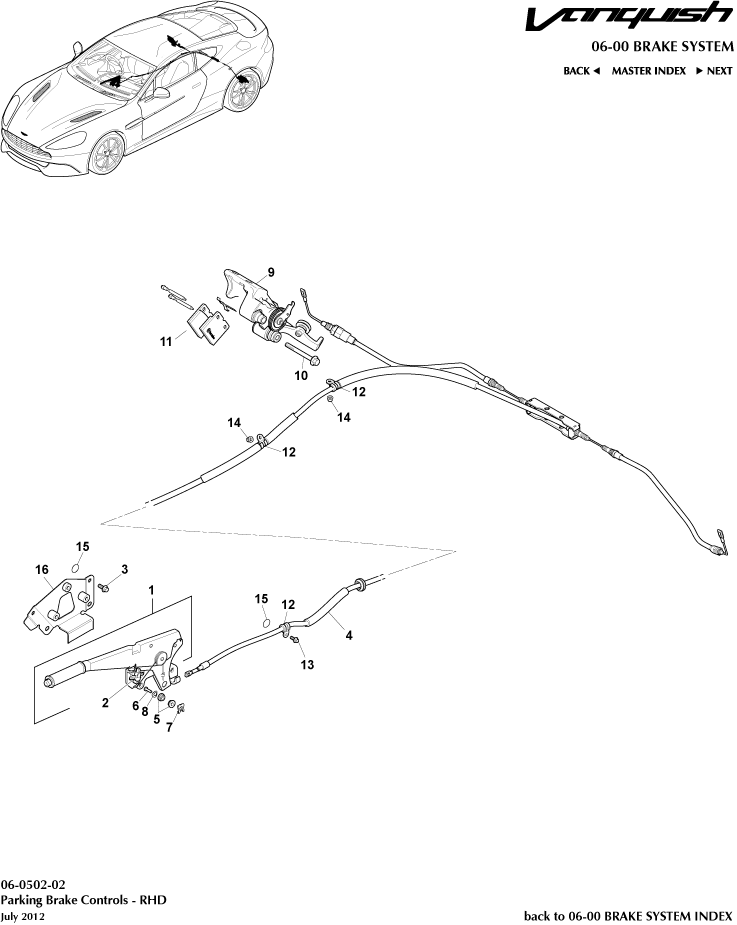

Parking Brake, RHD of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD338492BC
ASSY HBRAKE HLVR RHD
Dark Chrome Jewellery Pack 		- 1 Enquire
- AD232C465BB
Caliper, Handbrake, LH
Excludes Pads 		- 1 Enquire
- 8D332B296BA
KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER
- 		- 4 Enquire
1 4G438492BB
ASSY HBRKE HLVR RHD
Satin Chrome Jewellery Pack 		- 1 Enquire
3 703121
Screw, M8 x 25, Hex Flange Head
- 		- 6 Enquire
4 8D332853AB
Cable and Conduit
- 		- 1 Enquire
5 6G33439136AA
Trunnion, Handbrake Cable
- 		- 2 Enquire
6 7G432K605AA
Pin, Pivot Cable, Handbrake
- 		- 1 Enquire
7 8G432442AA
Spring Clip, Handbrake
- 		- 1 Enquire
8 8G4310400AA
Washer, Wave Spring, Handbrake
- 		- 1 Enquire
9 AD232C464BB
Caliper, Handbrake, RH
Excludes Pads 		- 1 Enquire
10 4G432C564CA
Bolt M10x87 Hex flange, secures EPB
- 		- 4 Enquire
11 4G432C562BA
Pads - Handbreak Caliper Axle Set
Excludes Pins and Anti Rattle Springs 		- 1 Enquire
13 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
- 		- 1 Enquire
14 703163
Nut, M6, Hex Flange Head, Locking
- 		- 2 Enquire
15 4G43L20222AA
Small Seal Patch for Door Mod
- 		- 5 Enquire
16 4G432A686BB
Bracket Assembly, Handbrake Lever, RHD
- 		- 1 Enquire
