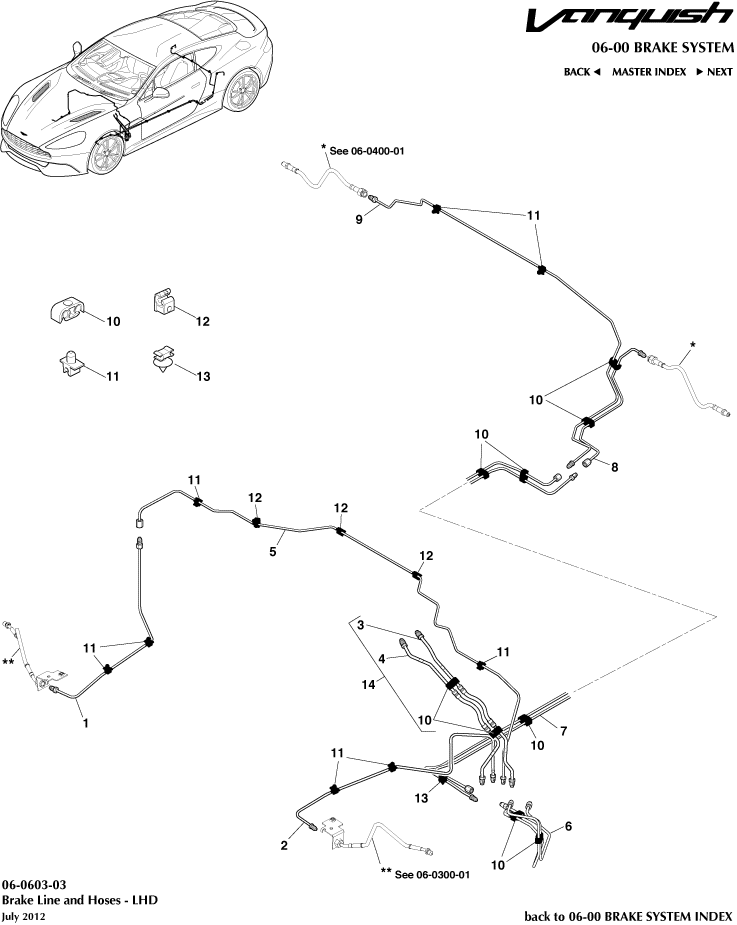

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G432263AD	TUBE ASSY - FRONT WHEEL BRAKE RH IN STOCK	4G432263AD TUBE ASSY - FRONT WHEEL BRAKE RH - IN STOCK	-	1	Enquire
2	CD332264AA	Tube Assy, Front Wheel Brake, LH	CD332264AA Tube Assy, Front Wheel Brake, LH -	-	1	Enquire
3	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 14	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 14	-	1	Enquire
5	BG332263BB	Tube assy, front RH caliper, LHD	BG332263BB Tube assy, front RH caliper, LHD -	-	1	Enquire
6	BG332A478AA	HOSE ASSY - REAR WHEEL BRAKE IN STOCK	BG332A478AA HOSE ASSY - REAR WHEEL BRAKE - IN STOCK	-	1	Enquire
8	8D332268CA	TUBE ASSY - REAR WHEEL BRAKE LH	8D332268CA TUBE ASSY - REAR WHEEL BRAKE LH -	-	1	Enquire
9	9D332267CA	Hose Assy, Rear Wheel Brake, RH	9D332267CA Hose Assy, Rear Wheel Brake, RH -	-	1	Enquire
10	4G4379125AA	CLIP - BRAKE PIPE DOUBLE IN STOCK	4G4379125AA CLIP - BRAKE PIPE DOUBLE - IN STOCK	-	9	Enquire
11	8D33ANR1864AA	CLIP - BRAKE PIPE SINGLE IN STOCK	8D33ANR1864AA CLIP - BRAKE PIPE SINGLE - IN STOCK	-	8	Enquire
12	4G4379124AA	Clip, Brake Pipe, Single	4G4379124AA Clip, Brake Pipe, Single -	-	3	Enquire
13	4G43ANR5999AA	CLIP - BRAKE PIPE DOUBLE	4G43ANR5999AA CLIP - BRAKE PIPE DOUBLE -	-	2	Enquire
14	BG332M022AB	HOSE ASSY-BRAKE MASTER CYLINDER TO MOD LHD	BG332M022AB HOSE ASSY-BRAKE MASTER CYLINDER TO MOD LHD Includes 3, 4 & 10	-	1	Enquire
