Front Brake System of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Front Brake System

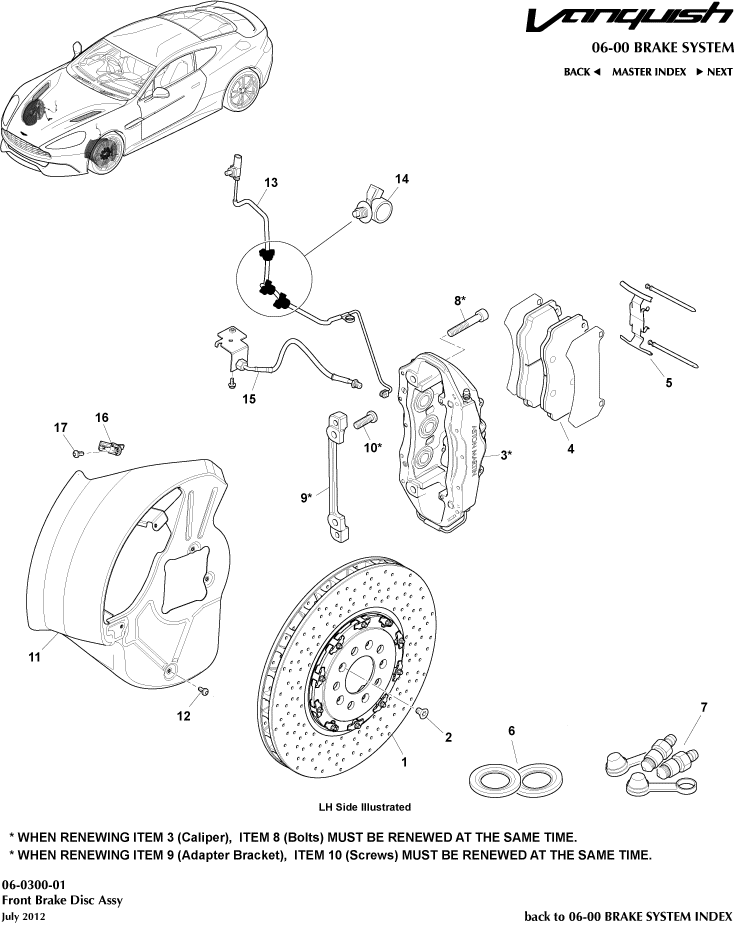

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD232C463AA	CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS	AD232C463AA CALIPER ASSY FRONT LH GREY W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C463CB	CALIPER ASSY FRONT LH BLACK W/O PADS INC BOLTS	AD232C463CB CALIPER ASSY FRONT LH BLACK W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C463DA	CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS	AD232C463DA CALIPER ASSY FRONT LH RED W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C463FA	CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS	AD232C463FA CALIPER ASSY FRONT LH YELLOW W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C463GA	CAL ASSY FR LH BLUE	AD232C463GA CAL ASSY FR LH BLUE Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462JA	CAL ASSY FR RH BLK	AD232C462JA CAL ASSY FR RH BLK Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462AA	CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS	AD232C462AA CALIPER ASSY FRONT RH GREY W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462CB	CALIPER ASSY FRONT RH BLACK W/O PADS INC BOLTS	AD232C462CB CALIPER ASSY FRONT RH BLACK W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462DA	CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS	AD232C462DA CALIPER ASSY FRONT RH RED W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462FA	CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS	AD232C462FA CALIPER ASSY FRONT RH YELLOW W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C462GA	CAL ASSY FR RH BLUE	AD232C462GA CAL ASSY FR RH BLUE Excludes Pads, Includes Bolts	-	1	Enquire
-	CD332K004AA	Shield, Front Brake Disc, RH	CD332K004AA Shield, Front Brake Disc, RH -	-	1	Enquire
-	4G432078BD	Hose, Front Wheel Brake RH	4G432078BD Hose, Front Wheel Brake RH -	-	1	Enquire
1	CD332B548CA	BR DISC &PADS SET-FT	CD332B548CA BR DISC &PADS SET-FT -	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3*	AD232C463JA	CAL ASY FR LH BLK AN	AD232C463JA CAL ASY FR LH BLK AN Excludes Pads, Includes Bolts	-	1	Enquire
4	CD332D007AA	Brake Pad Kit, Front	CD332D007AA Brake Pad Kit, Front Unbedded	-	1	Enquire
8*	8D33CD60AA	Bolt, Caliper to Adaptor Bracket ARRIVING SOON	8D33CD60AA Bolt, Caliper to Adaptor Bracket Always Replace never re-use ARRIVING SOON	-	4	Enquire
9*	ED232D204AB	Adapter Bracket, Front Caliper	ED232D204AB Adapter Bracket, Front Caliper -	-	2	Enquire
11	CD332K005AA	Shield, Front Brake Disc, LH	CD332K005AA Shield, Front Brake Disc, LH -	-	1	Enquire
12	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	10	Enquire
14	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) Pack of 100	-	6	Enquire
15	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH -	-	1	Enquire
16	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed -	-	2	Enquire
17	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor -	-	2	Enquire
