Rear Brake System of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

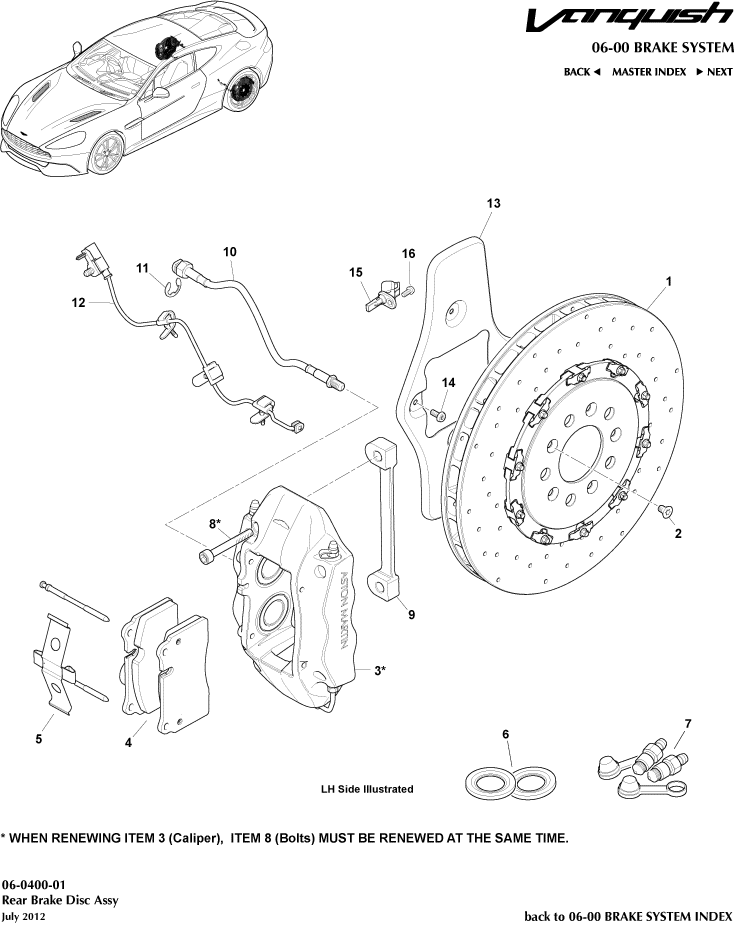

Aston Martin GT VANQUISH (2013-2018) - Rear Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD232C465AB	CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS	AD232C465AB CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C465CB	CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS	AD232C465CB CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C465DA	CALIPER ASSY REAR LH RED W/O PADS INC BOLTS	AD232C465DA CALIPER ASSY REAR LH RED W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C465FA	CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS	AD232C465FA CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C465GA	Caliper Assy, Rear LH, Blue	AD232C465GA Caliper Assy, Rear LH, Blue Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C464JA	CAL ASSY RR RH ANOD	AD232C464JA CAL ASSY RR RH ANOD Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C464AB	CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS	AD232C464AB CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C464CB	CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS	AD232C464CB CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C464DA	CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS	AD232C464DA CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C464FA	Caliper Assy, Rear, No Pads, RH, Inc Bolts	AD232C464FA Caliper Assy, Rear, No Pads, RH, Inc Bolts Excludes Pads, Includes Bolts	-	1	Enquire
-	AD232C464GA	Caliper Assy, Rear RH, Blue	AD232C464GA Caliper Assy, Rear RH, Blue Excludes Pads, Includes Bolts	-	1	Enquire
-	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH -	-	1	Enquire
1	CD332D258CA	BR DISC &PADS SET-RR	CD332D258CA BR DISC &PADS SET-RR -	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3*	AD232C465JA	CAL ASSY RR LH ANOD	AD232C465JA CAL ASSY RR LH ANOD Excludes Pads, Includes Bolts	-	1	Enquire
4	8D332C562BA	Brake Pad Kit, Rear	8D332C562BA Brake Pad Kit, Rear Unbedded	-	1	Enquire
5	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) Per Caliper	-	1	Enquire
8*	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle Always Replace, never re-use	-	4	Enquire
9	8D332B128AB	Spacer, caliper to knuckle	8D332B128AB Spacer, caliper to knuckle -	-	2	Enquire
10	6G332282AC	Hose, Rear Wheel Brake	6G332282AC Hose, Rear Wheel Brake -	-	2	Enquire
11	6G33JYC10088AB	E Clip Bowed, Nom 16mm	6G33JYC10088AB E Clip Bowed, Nom 16mm -	-	2	Enquire
13	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH -	-	1	Enquire
14	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	8	Enquire
15	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed -	-	2	Enquire
16	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor -	-	2	Enquire
