Speakers, B&O of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Speakers, B&O

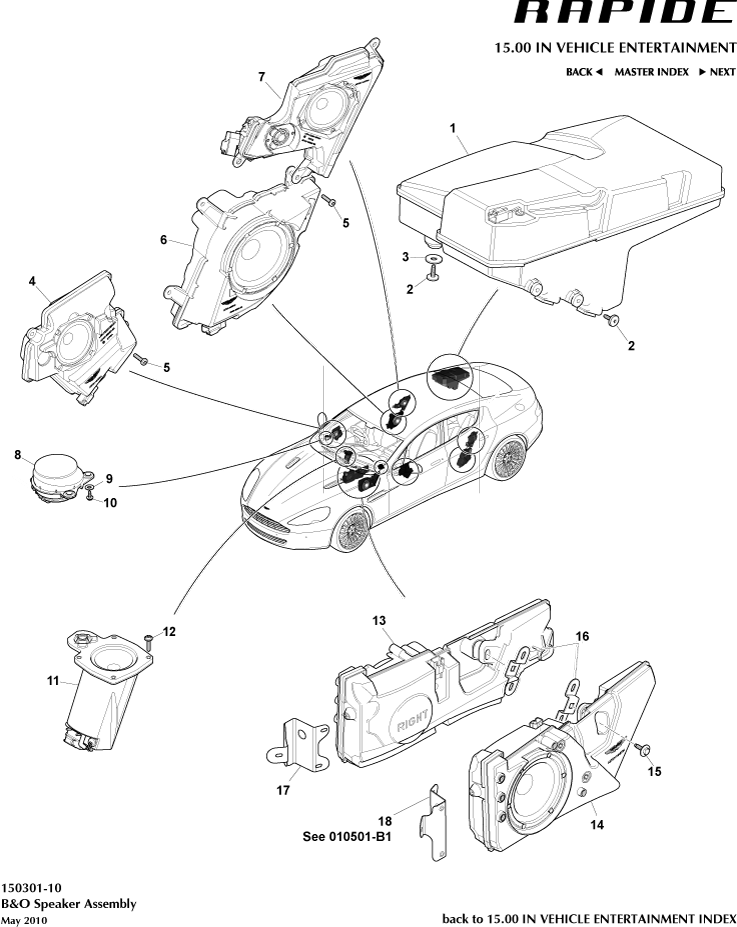

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD436696YBA	FRONT DOOR SPEAKER LH	AD436696YBA FRONT DOOR SPEAKER LH Secured by item 5 (3 per assembly)	-	1	Enquire
-	AD4346685AA	REAR DOOR WOOFER LH	AD4346685AA REAR DOOR WOOFER LH Secured by item 5 (3 per assembly)	-	1	Enquire
-	AD4346685BA	REAR DOOR SPEAKER MID LH	AD4346685BA REAR DOOR SPEAKER MID LH Secured by item 5 (3 per assembly)	-	1	Enquire
-	CD3318D801BB	Acoustic Lens Tweeter	CD3318D801BB Acoustic Lens Tweeter ->F06267, Basalt Pearl	-	2	Enquire
-	CD3318D801BC	Acoustic Lens Tweeter	CD3318D801BC Acoustic Lens Tweeter F06268->, Basalt Pearl	-	2	Enquire
-	CD4318D801AA	Acoustic Lens Tweeter	CD4318D801AA Acoustic Lens Tweeter Iridium Pearl	-	2	Enquire
-	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping per assembly - Rapide S	-	3	Enquire
1	AD4318C956AA	VH400 SUB ENCLOSURE	AD4318C956AA VH400 SUB ENCLOSURE -	-	1	Enquire
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) -	-	2	Enquire
3	6G336C778AA	ISOLATOR - OIL COOLER MOUTING	6G336C778AA ISOLATOR - OIL COOLER MOUTING -	-	2	Enquire
4	AD436696XBA	FRONT DOOR SPEAKER RH	AD436696XBA FRONT DOOR SPEAKER RH Secured by item 5 (3 per assembly)	-	1	Enquire
5	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD -	-	18	Enquire
6	AD4346684AA	REAR DOOR WOOFER RH	AD4346684AA REAR DOOR WOOFER RH Secured by item 5 (3 per assembly)	-	1	Enquire
7	AD4346684BA	REAR DOOR SPEAKER MID RH	AD4346684BA REAR DOOR SPEAKER MID RH Secured by item 5 (3 per assembly)	-	1	Enquire
8	9D3318D801AB	ACOUSTIC LENS TWEETER-BASALT	9D3318D801AB ACOUSTIC LENS TWEETER-BASALT Basalt	-	2	Enquire
9	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk per assembly	-	3	Enquire
10	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) per assembly	-	3	Enquire
15	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) per assembly	-	2	Enquire
17	9D332B100AC	Bracket, Foot Well Speaker Box, RH	9D332B100AC Bracket, Foot Well Speaker Box, RH -	-	1	Enquire
18	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH -	-	1	Enquire
