Media System, 13MY on of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Media System, 13MY on

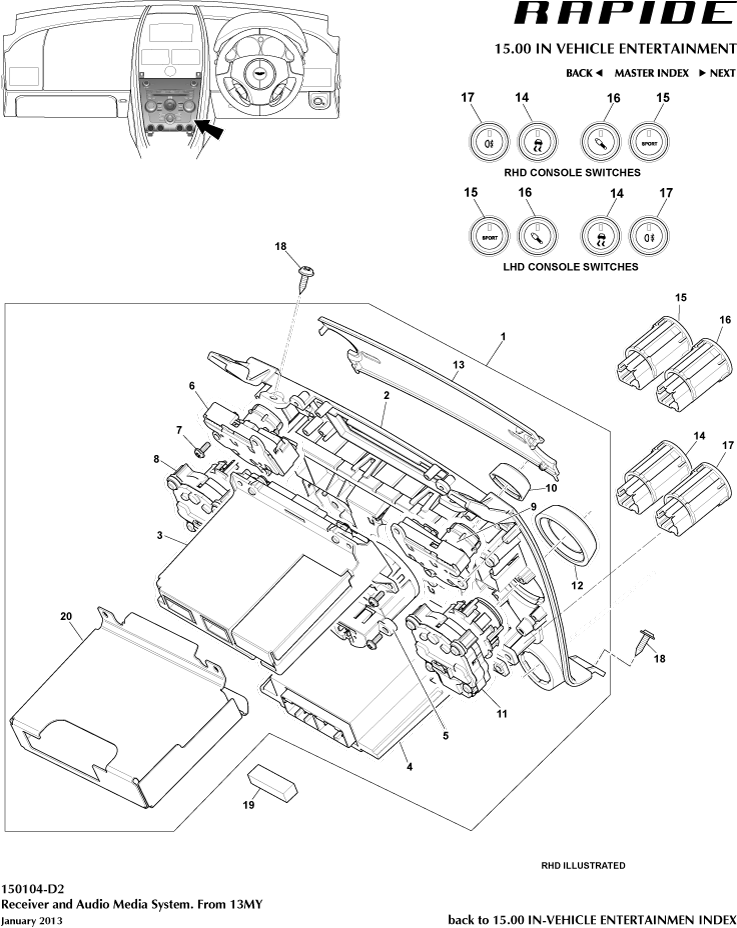

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3318C815JE	CENTRE STACK ASSY	CD3318C815JE CENTRE STACK ASSY -	-	1	Enquire
-	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX -	-	1	Enquire
-	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY -	-	1	Enquire
-	00RA282	SCREW - 12X25 - BUTTON	00RA282 SCREW - 12X25 - BUTTON -	-	1	Enquire
-	BG432C418BA	DSC CONTROL SWITCH	BG432C418BA DSC CONTROL SWITCH 14.5MY	-	1	Enquire
-	AD3314B626CB	SPORTS MODE SWITCH	AD3314B626CB SPORTS MODE SWITCH From 15MY	-	1	Enquire
-	AD3315K237BB	FOGLAMP SWITCH	AD3315K237BB FOGLAMP SWITCH From 15MY	-	1	Enquire
1	CG4318C815BD	CENTRE STACK ASSY	CG4318C815BD CENTRE STACK ASSY -	-	1	Enquire
2	CG4313D734BA	SWITCH MAIN BODY	CG4313D734BA SWITCH MAIN BODY -	-	1	Enquire
4	CG4318C612BA	Module, Centre Console ECU	CG4318C612BA Module, Centre Console ECU -	-	1	Enquire
5	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock -	-	1	Enquire
6	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 -	-	1	Enquire
7	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	14	Enquire
8	8D3318C612BB	HVAC CTRL MODULE	8D3318C612BB HVAC CTRL MODULE -	-	1	Enquire
9	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control -	-	1	Enquire
10	CG4318817BA	AUDIO CONTROL KNOB	CG4318817BA AUDIO CONTROL KNOB -	-	1	Enquire
12	CG4318783BA	HVAC CTRL KNOB	CG4318783BA HVAC CTRL KNOB -	-	2	Enquire
13	AG4304708BB	ICM LENS	AG4304708BB ICM LENS -	-	1	Enquire
14	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control -	-	1	Enquire
15	AD3314B626CA	SPORTS MODE SWITCH	AD3314B626CA SPORTS MODE SWITCH Up To 15MY	-	1	Enquire
17	AD3315K237BA	RR FOGLAMP SWITCH	AD3315K237BA RR FOGLAMP SWITCH Up To 15MY	-	1	Enquire
18	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping -	-	4	Enquire
19	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE -	-	1	Enquire
20	AG4319C076BA	RFI SHIELD	AG4319C076BA RFI SHIELD -	-	1	Enquire
