Media System, Up to 13MY of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Media System, Up to 13MY

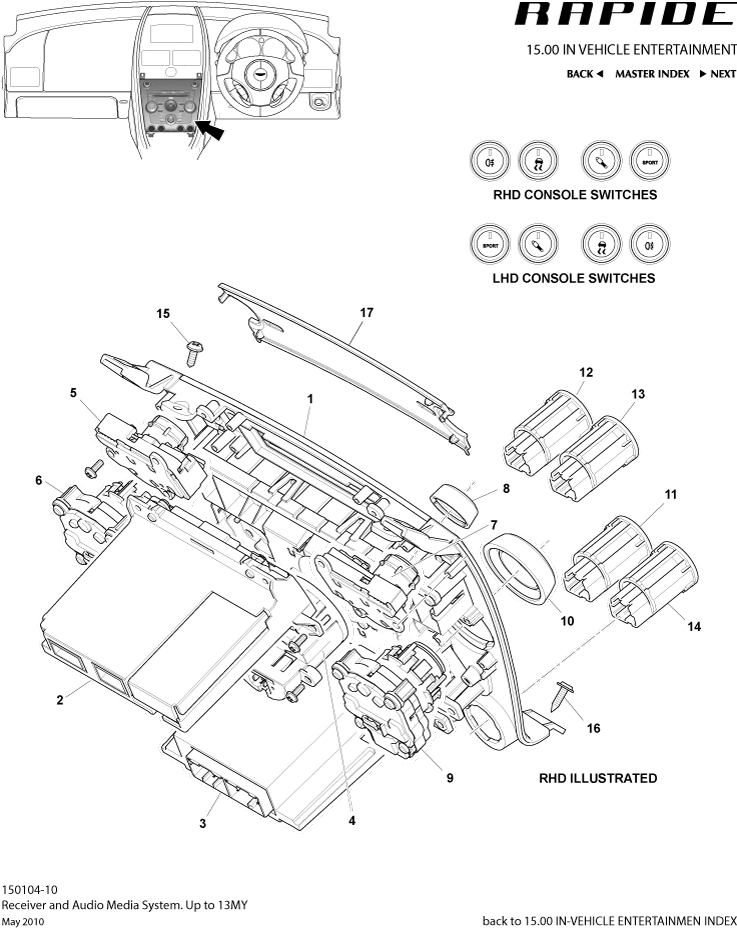

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9YSE2B623AA	EPB SWITCH	SY9YSE2B623AA EPB SWITCH RHD	-	1	Enquire
-	00RA028	BOLT - M8X25 - 10.9 - HEX	00RA028 BOLT - M8X25 - 10.9 - HEX LHD	-	1	Enquire
-	CG4313D734AA	SWITCH MAIN BODY-SLV	CG4313D734AA SWITCH MAIN BODY-SLV 12MY	-	1	Enquire
-	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY 12MY	-	1	Enquire
-	CG4318C612BA	Module, Centre Console ECU	CG4318C612BA Module, Centre Console ECU 12MY	-	1	Enquire
-	AD433710087	SWITCH KIT-GLASS RAPIDE (MADE TO ORDER)	AD433710087 SWITCH KIT-GLASS RAPIDE (MADE TO ORDER) Special order	-	1	Enquire
-	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control 11MY, Glass	-	1	Enquire
-	AD3314B626CA	SPORTS MODE SWITCH	AD3314B626CA SPORTS MODE SWITCH 11MY, Glass	-	1	Enquire
-	AD332C418CA	Switch, Active Damping	AD332C418CA Switch, Active Damping 11MY, Glass	-	1	Enquire
-	AD3315K237BA	RR FOGLAMP SWITCH	AD3315K237BA RR FOGLAMP SWITCH 11MY, Glass	-	1	Enquire
1	9G4313D734AC	SWITCH MAIN BODY SILVER	9G4313D734AC SWITCH MAIN BODY SILVER -	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE -	-	1	Enquire
3	8D3318C612AB	CENTRE CONSOLE MODULE ECU	8D3318C612AB CENTRE CONSOLE MODULE ECU -	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock -	-	1	Enquire
5	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 -	-	1	Enquire
6	8D3318C612DA	Module, Temp HVAC Rotary Control	8D3318C612DA Module, Temp HVAC Rotary Control -	-	1	Enquire
7	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control -	-	1	Enquire
8	8D3318817AC	AUDIO CONROL KNOB	8D3318817AC AUDIO CONROL KNOB -	-	2	Enquire
9	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	8D3318C612EA Module, Fan Speed HVAC Rotary Control -	-	1	Enquire
10	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB -	-	2	Enquire
12	9D3314B626BA	SPORTS MODE SWITCH	9D3314B626BA SPORTS MODE SWITCH -	-	1	Enquire
13	8D332C418CA	ACTIVE DAMPING SWTCH	8D332C418CA ACTIVE DAMPING SWTCH -	-	1	Enquire
14	6G3315K237BA	FOGLAMP SWITCH	6G3315K237BA FOGLAMP SWITCH -	-	1	Enquire
15	701660	SCREW 4.2x13 FLG T/F	701660 SCREW 4.2x13 FLG T/F -	-	2	Enquire
16	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	2	Enquire
17	AG4304708BB	ICM LENS	AG4304708BB ICM LENS -	-	1	Enquire
