Aston Martin GT RAPIDE (2010-2019) - Speakers, ASK

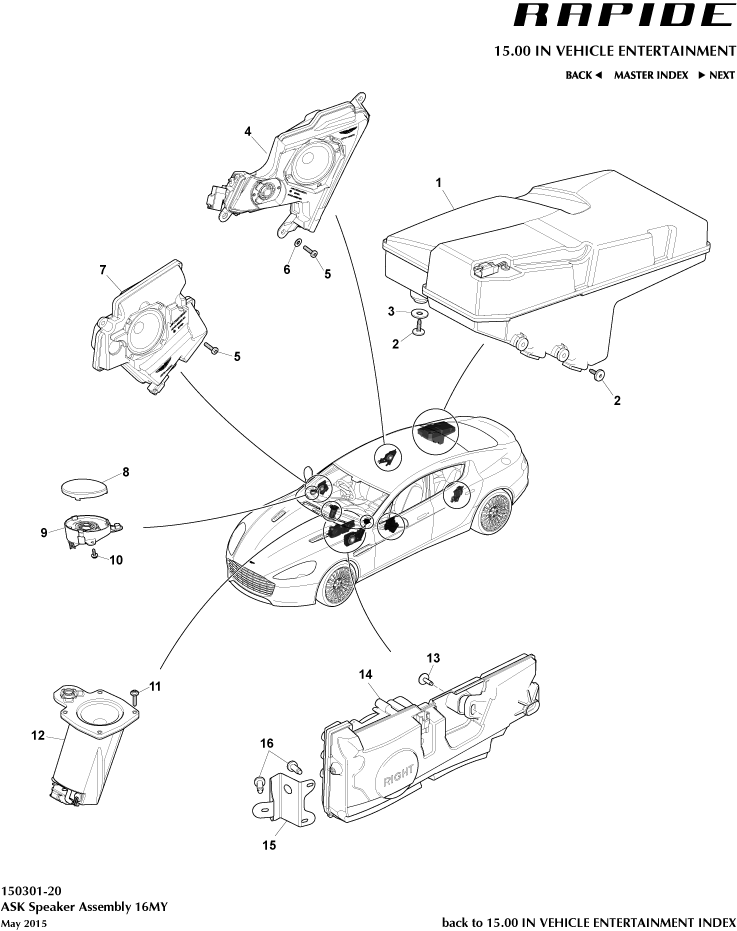

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	GD4346685BA	RR DR MID SPK LH	GD4346685BA RR DR MID SPK LH LH	-	1	Enquire
-	GD436696YBA	FRT DOOR SPKR LH	GD436696YBA FRT DOOR SPKR LH LH	-	1	Enquire
-	GD4318C863CB	IP TWEETER GR LH	GD4318C863CB IP TWEETER GR LH LH	-	1	Enquire
-	GD436696YAA	FRT F/WLL SPEAKER LH	GD436696YAA FRT F/WLL SPEAKER LH LH	-	1	Enquire
1	GD4318C956AA	SUB ENCLOSURE	GD4318C956AA SUB ENCLOSURE -	-	1	Enquire
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) -	-	2	Enquire
3	6G336C778AA	ISOLATOR - OIL COOLER MOUTING	6G336C778AA ISOLATOR - OIL COOLER MOUTING -	-	2	Enquire
4	GD4346684BA	RR DR MID SPK RH	GD4346684BA RR DR MID SPK RH RH	-	1	Enquire
5	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8 -	-	12	Enquire
6	697517	WASHER M6 LGE OD BLK	697517 WASHER M6 LGE OD BLK -	-	12	Enquire
7	GD436696XBA	FRT DOOR SPKR RH	GD436696XBA FRT DOOR SPKR RH RH	-	1	Enquire
8	GD4318C862CB	IP TWEETER GR RH	GD4318C862CB IP TWEETER GR RH RH	-	1	Enquire
9	GD4318D801AA	IP TWEETER	GD4318D801AA IP TWEETER -	-	2	Enquire
10	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	4	Enquire
11	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head -	-	4	Enquire
12	GD4370451AA	CENTRE SPEAKER	GD4370451AA CENTRE SPEAKER -	-	1	Enquire
13	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	4	Enquire
14	GD436696XAA	FRT FTWLL SPKR RH	GD436696XAA FRT FTWLL SPKR RH RH	-	1	Enquire
15	9D332B100AC	Bracket, Foot Well Speaker Box, RH	9D332B100AC Bracket, Foot Well Speaker Box, RH RH	-	1	Enquire
16	701554	Screw, M5 x 12, Pan Hd	701554 Screw, M5 x 12, Pan Hd -	-	3	Enquire
