Aston Martin GT DB9 (2004-2017) - Electrical Wiring & Protection - IP Harness

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

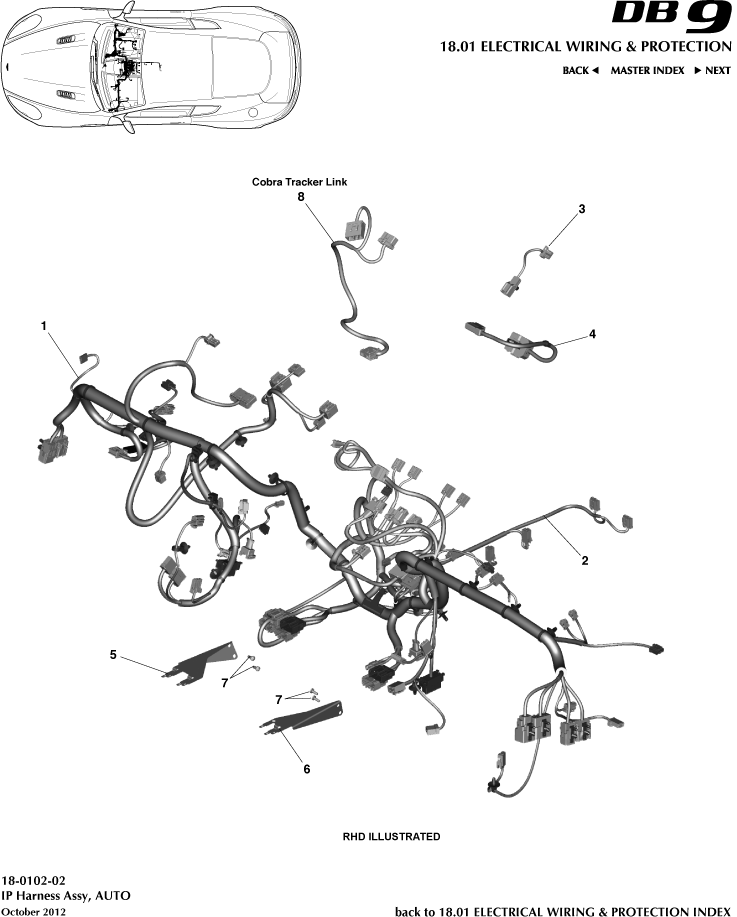

Electrical Wiring & Protection - IP Harness of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG4314401AD
LHD B&O FACIA HRNS
- 		- 1 Enquire
- DG4314K024BD
Harness Assembly, Facia, RHD, Alpine
- 		- 1 Enquire
- DG4314401BD
LHD ALPINE FACIA HRN
- 		- 1 Enquire
- GG4314B079AB
CENTRE STACK
From 16MY. Includes item 4 		- 1 Enquire
- 4G4318C951HB
Media Oriented System transport (MOST), Service Loop
Not Illustrated 		- 1 Enquire
1 DG4314K024AD
RHD B&O FACIA HRN
- 		- 1 Enquire
2 DG4314B079CC
Harness Assembly, Centre Stack, Auto
Up To 16MY 		- 1 Enquire
3 8D339137BA
Harness Assembly, Passive Anti Theft System (PATS) Link
- 		- 1 Enquire
4 CG4314D454BC
Link Harness, Garmin Sat Nav
Up to 16MY 		- 1 Enquire
5 9D3314N003AA
Inline bracket, Instrument Panel (IP), RHS
- 		- 1 Enquire
6 9D3314N003BB
Inline bracket, Instrument Panel (IP), LHS
- 		- 1 Enquire
7 22AA643GP
ASSY FINISHER RR WAIST RH
- 		- 4 Enquire
8 DD339137AB
Link Assembly, Tracker
14.5MY 		- 1 Enquire
9 HG3314B544AB
TRACKER FUSE BRKT
From 17MY 		- 1 Enquire
10 HG439137AA
TRACKER LINK
From 17MY 		- 1 Enquire
