Electrical Wiring & Protection - Engine Bay Fusebox of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Electrical Wiring & Protection - Engine Bay Fusebox

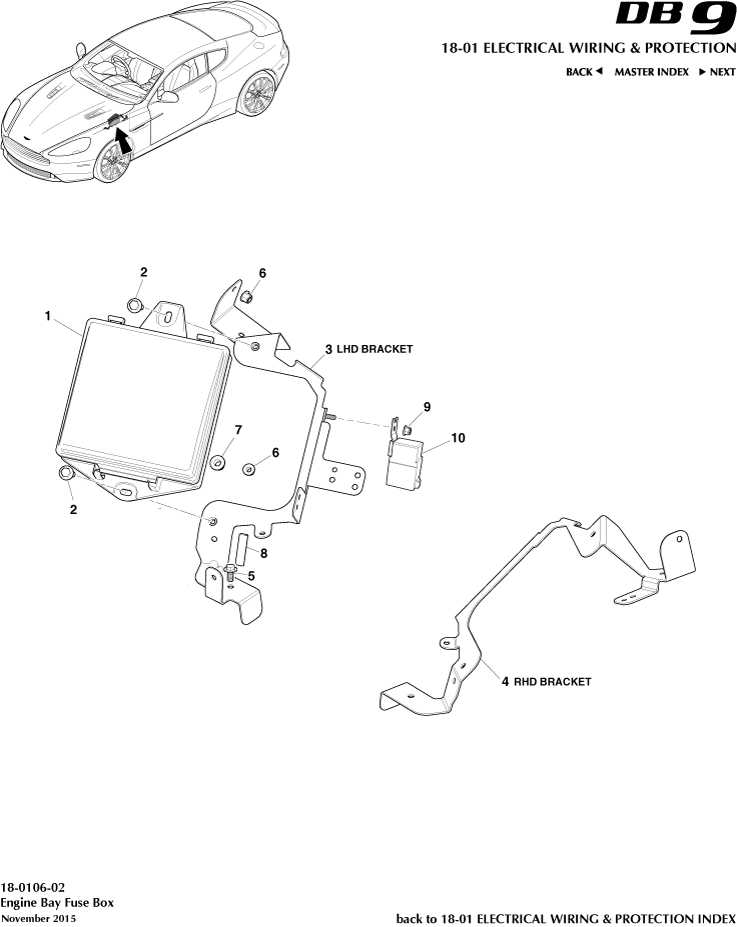

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD4314A173CA	ENG BAY F/BOX BRKT	FD4314A173CA ENG BAY F/BOX BRKT From VIN A16059. For vehicles with Air Con Gas R134a only	-	1	Enquire
-	FD4314A173CB	ENG BAY F/BOX BRKT	FD4314A173CB ENG BAY F/BOX BRKT For vehicles with Air Con Gas HFO1234a only	-	1	Enquire
-	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 From VIN B16468. For vehicles with Air Con Gas R134a only	-	1	Enquire
-	FD4314A173BB	ENG BAY F/BOX BRKT	FD4314A173BB ENG BAY F/BOX BRKT For vehicles with Air Con Gas HFO1234a only	-	1	Enquire
-	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR Fan Pack	-	1	Enquire
-	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A -	-	A/R	Enquire
-	RY63C043C90PC	IP UPR BRW PASS CRBN	RY63C043C90PC IP UPR BRW PASS CRBN -	-	A/R	Enquire
-	708885	P/SMPL-YELLOW TANG	708885 P/SMPL-YELLOW TANG -	-	A/R	Enquire
-	MY63L515A46CA	RR ROPS CVR RH	MY63L515A46CA RR ROPS CVR RH -	-	A/R	Enquire
-	708868	P/SMPL-SKYE SILVER	708868 P/SMPL-SKYE SILVER -	-	A/R	Enquire
-	708695	L/SMPL-COTE D AZUR-S	708695 L/SMPL-COTE D AZUR-S -	-	A/R	Enquire
-	708686	L/SAMPLE-OXFD TAN-SA	708686 L/SAMPLE-OXFD TAN-SA -	-	A/R	Enquire
-	HY533710002	FUSE 40 AMP-ORANGE	HY533710002 FUSE 40 AMP-ORANGE -	-	A/R	Enquire
1	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay -	-	1	Enquire
3	4G4314A173CH	ENG BAY F/BOX BRKT	4G4314A173CH ENG BAY F/BOX BRKT -	-	1	Enquire
4	DG4314A173BA	ENG BAY F/BOX BRKT	DG4314A173BA ENG BAY F/BOX BRKT -	-	1	Enquire
5	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
6	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	3	Enquire
7	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	701342PK NUT M8 HEX P/T PLAS8 PACK OF 5 Pack of 5	-	1	Enquire
8	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 -	-	1	Enquire
9	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	1	Enquire
10	6G3314N089BA	SECONDARY AIR INJECTION HIGH POWER RELAY	6G3314N089BA SECONDARY AIR INJECTION HIGH POWER RELAY -	-	1	Enquire
