Electrical Wiring & Protection - Body Harness, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Electrical Wiring & Protection - Body Harness, Volante

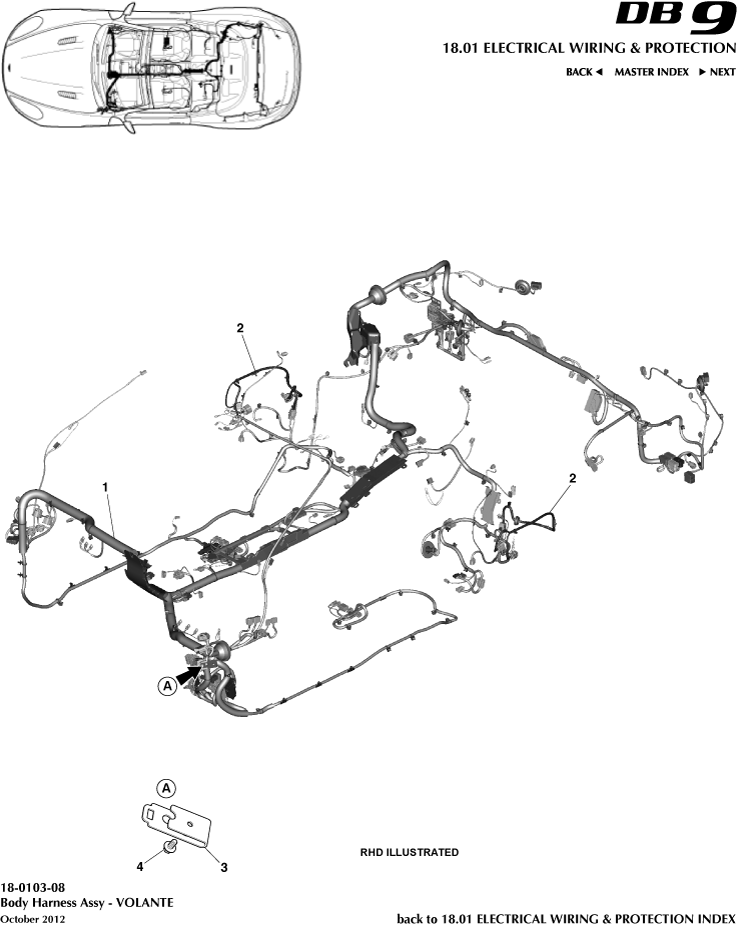

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG4314A005HA	Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O)	EG4314A005HA Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O) From 14.5MY To 16MY	-	1	Enquire
-	GG4314A005HC	RHD CONV CABIN HRNS	GG4314A005HC RHD CONV CABIN HRNS From 16MY to 17MY	-	1	Enquire
-	RY6331013ACW	PNL ASY BDY SD TM LH	RY6331013ACW PNL ASY BDY SD TM LH From 17MY	-	1	Enquire
-	DG4314A005GD	Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O)	DG4314A005GD Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O) Up to 14.5MY	-	1	Enquire
-	EG4314A005GA	Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O)	EG4314A005GA Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O) From 14.5MY To 16MY	-	1	Enquire
-	GG4314A005GC	LHD CONV CABIN HRNS	GG4314A005GC LHD CONV CABIN HRNS From 16MY	-	1	Enquire
-	DG4314A005DD	Harness Assembly, Cabin, RHD, Alpine	DG4314A005DD Harness Assembly, Cabin, RHD, Alpine Up to 14.5MY	-	1	Enquire
-	EG4314A005DA	Harness Assembly, Cabin, RHD, Alpine	EG4314A005DA Harness Assembly, Cabin, RHD, Alpine From 14.5MY To 16MY	-	1	Enquire
-	GG4314A005DC	RHD CONV CABIN HRNS	GG4314A005DC RHD CONV CABIN HRNS From 16MY to 17MY	-	1	Enquire
-	HG4314A005DA	HRNSS ASSY CBN CNV R	HG4314A005DA HRNSS ASSY CBN CNV R From 17MY	-	1	Enquire
-	DG4314A005CD	Harness Assembly, Cabin, LHD, Alpine	DG4314A005CD Harness Assembly, Cabin, LHD, Alpine Up to 14.5MY	-	1	Enquire
-	EG4314A005CA	Harness Assembly, Cabin, LHD, Alpine	EG4314A005CA Harness Assembly, Cabin, LHD, Alpine From 14.5MY To 16MY	-	1	Enquire
-	GG4314A005CC	LHD CONV CABIN ARNS	GG4314A005CC LHD CONV CABIN ARNS From 16MY	-	1	Enquire
-	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head Ground Positions	-	28	Enquire
1	DG4314A005HC	Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O)	DG4314A005HC Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O) Up to 14.5MY	-	1	Enquire
2	4G4314284AB	REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	4G4314284AB REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS -	-	2	Enquire
3	4G4314N003CG	Inline Bracket, Connector	4G4314N003CG Inline Bracket, Connector -	-	1	Enquire
4	702299	Screw, M6 x 12, Hex Flange Head	702299 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
