Electrical Switches - Centre Console Switches, to 16MY of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Electrical Switches - Centre Console Switches, to 16MY

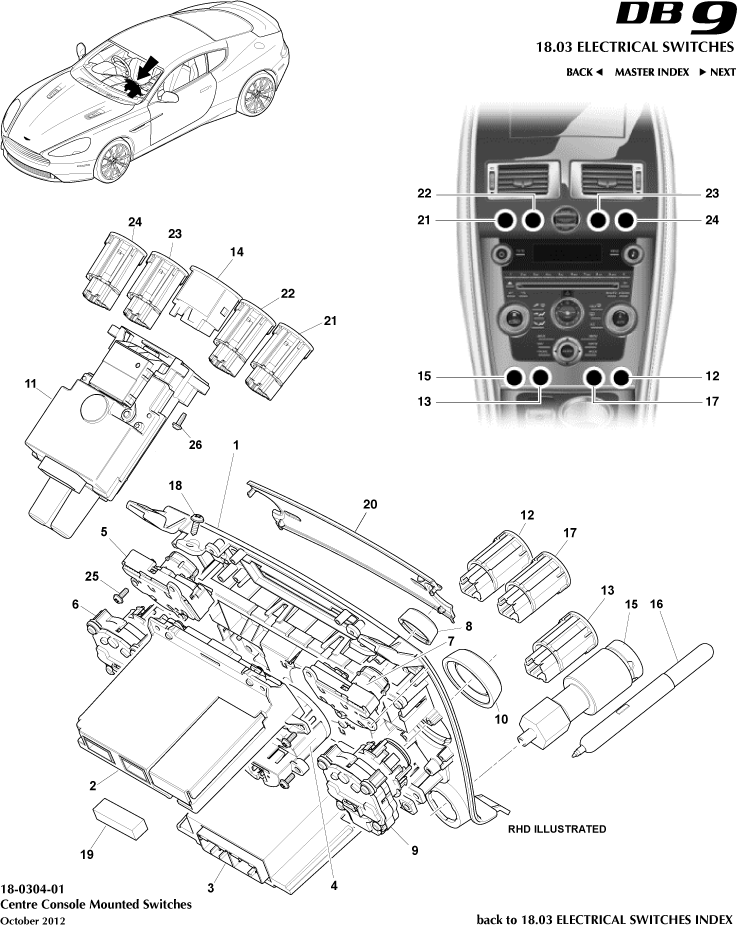

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4318C815BD	CENTRE STACK ASSY	CG4318C815BD CENTRE STACK ASSY -	-	1	Enquire
-	CD3318C815JE	CENTRE STACK ASSY	CD3318C815JE CENTRE STACK ASSY -	-	1	Enquire
-	FG3318C815AB	CENTRE STACK ASSY	FG3318C815AB CENTRE STACK ASSY -	-	1	Enquire
-	CD3313D734AA	SWITCH MAIN BODY	CD3313D734AA SWITCH MAIN BODY Up To 15MY	-	1	Enquire
-	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY From 15MY	-	1	Enquire
-	FG3313D734AA	AUDIO CTRL MODULE	FG3313D734AA AUDIO CTRL MODULE -	-	1	Enquire
-	FG3313D734AA	AUDIO CTRL MODULE	FG3313D734AA AUDIO CTRL MODULE For Black Knobs	-	1	Enquire
-	MY83600C65EDW	VAL ASY CUSH LH	MY83600C65EDW VAL ASY CUSH LH For Black Knobs	-	1	Enquire
-	FG3318817AA	AUDIO CONTROL KNOB	FG3318817AA AUDIO CONTROL KNOB -	-	2	Enquire
-	708817	P/SMPL-AMETHYST RED	708817 P/SMPL-AMETHYST RED For Black Knobs	-	1	Enquire
-	FG3318783AA	HVAC CTRL KNOB	FG3318783AA HVAC CTRL KNOB -	-	2	Enquire
-	CD3319H420AC	TRANS IGN BZL ASSY	CD3319H420AC TRANS IGN BZL ASSY Chrome	-	1	Enquire
-	AD337L021BC	PARK SWITCH AUTO	AD337L021BC PARK SWITCH AUTO 15MY	-	1	Enquire
-	AD337J175CC	REVERSE SWITCH AUTO	AD337J175CC REVERSE SWITCH AUTO 15MY	-	1	Enquire
-	AD337A247BC	NEUTRAL SW AUTO	AD337A247BC NEUTRAL SW AUTO 15MY	-	1	Enquire
-	AD337J177BC	DRIVE SWITCH AUTO	AD337J177BC DRIVE SWITCH AUTO 15MY	-	1	Enquire
1	CG4313D734AA	SWITCH MAIN BODY-SLV	CG4313D734AA SWITCH MAIN BODY-SLV -	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE -	-	1	Enquire
3	CG4318C612BA	Module, Centre Console ECU	CG4318C612BA Module, Centre Console ECU -	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock -	-	1	Enquire
8	CG4318817AA	AUDIO CONTROL KNOB	CG4318817AA AUDIO CONTROL KNOB -	-	2	Enquire
10	708652	TRIM SMPLE-LT IVORY	708652 TRIM SMPLE-LT IVORY -	-	2	Enquire
11	9G4319H386AK	TRANS IGN START/STOP	9G4319H386AK TRANS IGN START/STOP -	-	2	Enquire
12	AD332C418CA	Switch, Active Damping	AD332C418CA Switch, Active Damping -	-	1	Enquire
13	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control -	-	1	Enquire
14	9G4319H420AH	TRANS IGN BZL ASY	9G4319H420AH TRANS IGN BZL ASY Glass	-	1	Enquire
15	9G4356051BB	PEN HOLDER	9G4356051BB PEN HOLDER -	-	1	Enquire
16	9G4319G243AA	LAMY PEN	9G4319G243AA LAMY PEN -	-	1	Enquire
17	AD3314B626CA	SPORTS MODE SWITCH	AD3314B626CA SPORTS MODE SWITCH -	-	1	Enquire
18	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	4	Enquire
19	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE -	-	1	Enquire
20	AG4304708BB	ICM LENS	AG4304708BB ICM LENS -	-	1	Enquire
21	AD337L021BA	PARK SWITCH AUTO	AD337L021BA PARK SWITCH AUTO -	-	1	Enquire
22	AD337J175CA	REVERSE SWITCH AUTO	AD337J175CA REVERSE SWITCH AUTO -	-	1	Enquire
23	AD337A247BA	NEUTRAL SW AUTO	AD337A247BA NEUTRAL SW AUTO -	-	1	Enquire
24	AD337J177BA	DRIVE SWITCH AUTO	AD337J177BA DRIVE SWITCH AUTO -	-	1	Enquire
25	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	14	Enquire
26	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw -	-	4	Enquire
