Steering Column Assembly of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

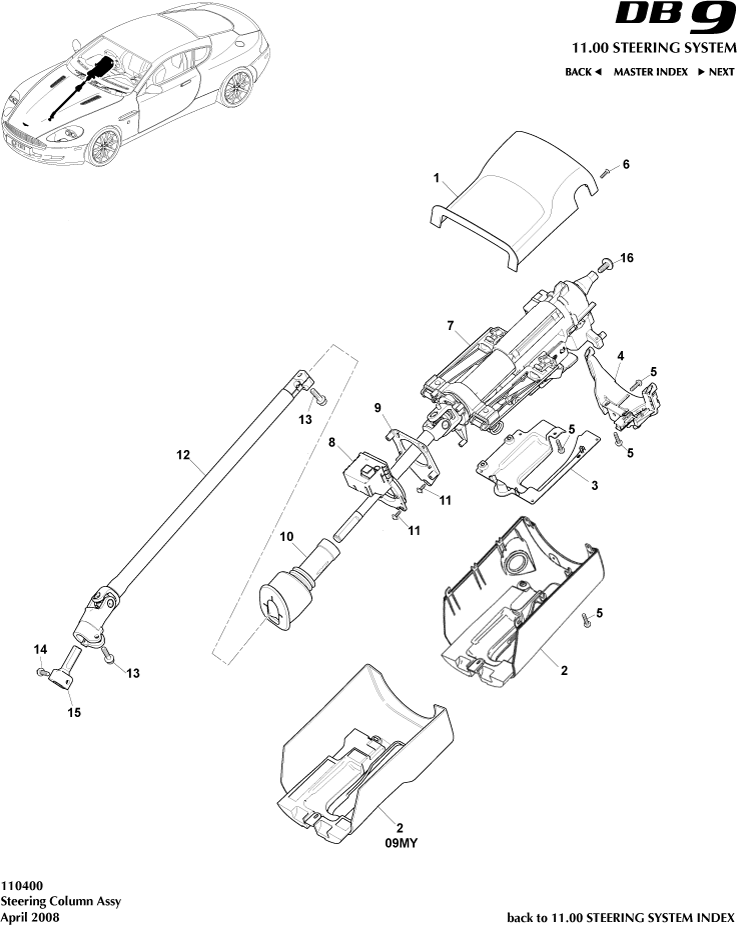

Aston Martin GT DB9 (2004-2017) - Steering Column Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	KY9Y2C588AB	FR PAD SERVICE KIT	KY9Y2C588AB FR PAD SERVICE KIT -	-	1	Enquire
-	MY8366913ADW	BK/SHL UPR ASY	MY8366913ADW BK/SHL UPR ASY 09MY	-	1	Enquire
-	RY53C043K93EAW	PASS SD LWR PNL TRIM	RY53C043K93EAW PASS SD LWR PNL TRIM MAN	-	1	Enquire
-	8D333533ADW	SHRD ASY STNG COL LW	8D333533ADW SHRD ASY STNG COL LW 09MY, MAN	-	1	Enquire
-	4G433K512BCW	STEERING COLUMN SHROUD LOWER (AUTO)	4G433K512BCW STEERING COLUMN SHROUD LOWER (AUTO) AUTO	-	1	Enquire
-	8D333K512AEW	SHRD ASY STNG COL LW	8D333K512AEW SHRD ASY STNG COL LW 09MY, AUTO	-	1	Enquire
-	8D333E721AB	Plate, steering column, load spread	8D333E721AB Plate, steering column, load spread 09MY	-	1	Enquire
-	8D333L508BC	INS NON AUTO FIL PLT	8D333L508BC INS NON AUTO FIL PLT 09MY	-	1	Enquire
-	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head 09MY	-	8	Enquire
-	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black 09MY	-	2	Enquire
-	4G433C529AB	COLUMN ASY-STRG	4G433C529AB COLUMN ASY-STRG From (V) B06366	-	1	Enquire
-	8D333C529AB	ELEC STRG COLM ASSY	8D333C529AB ELEC STRG COLM ASSY 09MY	-	1	Enquire
-	4G433D677AA	Gaiter, Steering Column, LHD	4G433D677AA Gaiter, Steering Column, LHD LHD	-	1	Enquire
-	4G433C662AC	SHFT ASY-STNG COL LW	4G433C662AC SHFT ASY-STNG COL LW From (V) B06366	-	1	Enquire
-	4G433C662AD	SHFT ASY-STNG COL LW	4G433C662AD SHFT ASY-STNG COL LW 09MY	-	1	Enquire
-	703138	BOLT M8x25 PATCH CHROME FREE	703138 BOLT M8x25 PATCH CHROME FREE 08MY From (V) A09110	-	2	Enquire
-	4G433C684AB	Bolt, M8 x 30, Hex Head Flange, Patch	4G433C684AB Bolt, M8 x 30, Hex Head Flange, Patch 09MY	-	2	Enquire
-	701351	SCREW M8x34 TRIANGULAR	701351 SCREW M8x34 TRIANGULAR -	-	1	Enquire
1	4G433C695BCW	STEERING COLUMN SHROUD UPPER	4G433C695BCW STEERING COLUMN SHROUD UPPER -	-	1	Enquire
2	4G433533BCW	STEERING COLUMN SHROUD LOWER (MAN)	4G433533BCW STEERING COLUMN SHROUD LOWER (MAN) MAN	-	1	Enquire
3	4G431110307	STEERING COLUMN LOAD SPREAD PLATE	4G431110307 STEERING COLUMN LOAD SPREAD PLATE -	-	1	Enquire
4	4G433L508AA	Insulation, fill plate	4G433L508AA Insulation, fill plate MANUAL only	-	1	Enquire
5	KY9YQ9A487AAE	ACTUATOR LH SEC AIR	KY9YQ9A487AAE ACTUATOR LH SEC AIR -	-	8	Enquire
6	701660	SCREW 4.2x13 FLG T/F	701660 SCREW 4.2x13 FLG T/F -	-	2	Enquire
7	4G433C529AA	COL ASY STNG	4G433C529AA COL ASY STNG Up to (V) B06365	-	1	Enquire
8	4G433F818AA	Sensor Assy, steering rotation	4G433F818AA Sensor Assy, steering rotation -	-	1	Enquire
9	4G43ALR3219AB	BRACKET-MOUNTING	4G43ALR3219AB BRACKET-MOUNTING -	-	1	Enquire
10	4G433D677BA	Gaiter, Steering Column, RHD	4G433D677BA Gaiter, Steering Column, RHD RHD	-	1	Enquire
11	701354	Screw & Washer, M3.5 x 13, Flange Pan Head	701354 Screw & Washer, M3.5 x 13, Flange Pan Head -	-	6	Enquire
12	4G433C662AB	SHFT ASY-STNG COL LW	4G433C662AB SHFT ASY-STNG COL LW Up to (V) B06365	-	1	Enquire
13	701352	BOLT M8x25 PATCH	701352 BOLT M8x25 PATCH 07MY	-	2	Enquire
14	702631	M8 X 25 TRIANGULAR	702631 M8 X 25 TRIANGULAR -	-	1	Enquire
15	4G433N997AC	Coupling, Steering Gear to Column	4G433N997AC Coupling, Steering Gear to Column -	-	1	Enquire
16	701355	Screw, M10 x 21.8, Pan Head, Pilot	701355 Screw, M10 x 21.8, Pan Head, Pilot -	-	1	Enquire
