Cooler, Hoses & Reservoir, RHD of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

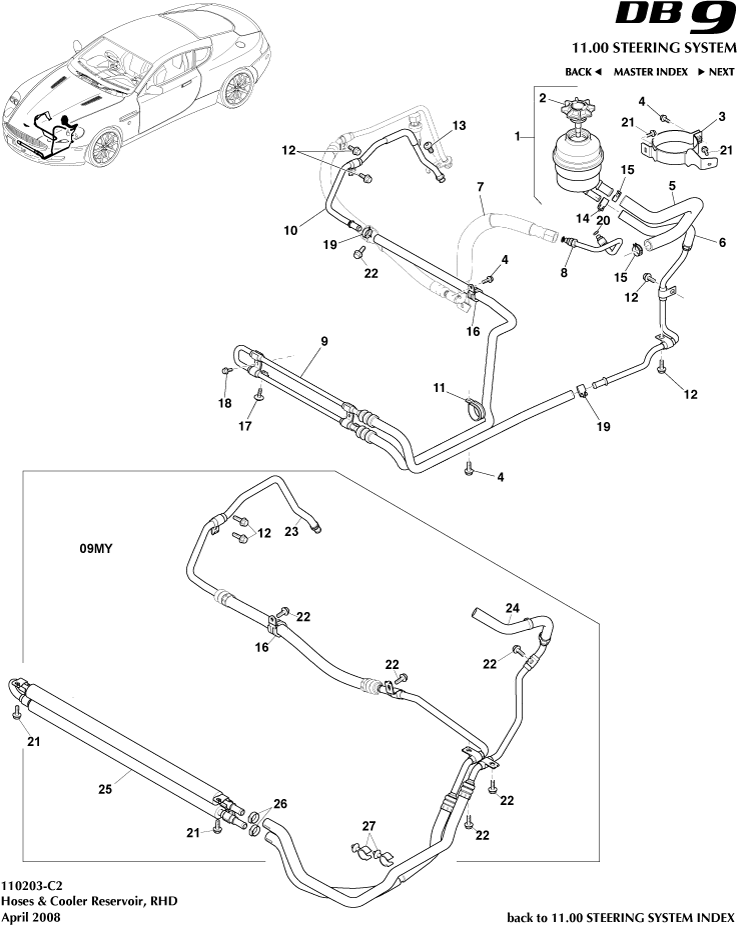

Aston Martin GT DB9 (2004-2017) - Cooler, Hoses & Reservoir, RHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110 IN STOCK	-	3	Enquire
-	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110 IN STOCK	-	6	Enquire
-	703141	SCREW M8 x 16 CHROME FREE IN STOCK	703141 SCREW M8 x 16 CHROME FREE 08MY From (V) A09110 IN STOCK	-	1	Enquire
-	61315A9D334	Switch, trailer coupling	61315A9D334 Switch, trailer coupling Not illustrated	-	1	Enquire
-	699999S	POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM	699999S POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM Up To VIN A12504, See SB-11-0300	-	A/R	Enquire
-	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	6G3319H373BA Fluid Hydraulic ASM S-Cam (Service) 1 Litre From VIN A12505, Pentosin CHF11S. See SB-11-0300	-	A/R	Enquire
1	4G433R700AA	RESVR & CAP ASY-PWR	4G433R700AA RESVR & CAP ASY-PWR -	-	1	Enquire
2	AD2334006AA	Cap, Power Steering Reservoir	AD2334006AA Cap, Power Steering Reservoir -	-	1	Enquire
3	4G433489AD	Bracket Assy, PAS Reservoir	4G433489AD Bracket Assy, PAS Reservoir -	-	1	Enquire
4	700250	BOLT M6x16	700250 BOLT M6x16 07MY	-	3	Enquire
5	4G433E525AA	RESERVOIR TO PUMP SUCTION	4G433E525AA RESERVOIR TO PUMP SUCTION Reservoir to Pump	-	1	Enquire
6	4G433A713BB	ASSY TUBE PAS RETURN - RHD	4G433A713BB ASSY TUBE PAS RETURN - RHD -	-	1	Enquire
7	4G433A719BE	Hose Assy, PAS Pressure Line, Pump to Gear, RHD	4G433A719BE Hose Assy, PAS Pressure Line, Pump to Gear, RHD Pump to GR LH	-	1	Enquire
8	4G433494AA	PUMP OUTLET TUBE - HIGH PRESSURE	4G433494AA PUMP OUTLET TUBE - HIGH PRESSURE -	-	1	Enquire
9	4G433D746BC	COOLING LOOP (RHD) POWER STEERING	4G433D746BC COOLING LOOP (RHD) POWER STEERING -	-	1	Enquire
10	4G433F558BA	RETURN PIPE GEAR TO COOLER (RHD)	4G433F558BA RETURN PIPE GEAR TO COOLER (RHD) Gear to cooler	-	1	Enquire
11	4G436C727AA	HOSE CLIP (RAYMOND 81442) IN STOCK	4G436C727AA HOSE CLIP (RAYMOND 81442) - IN STOCK	-	3	Enquire
12	700123	SCREW M8x20 HEX FLG	700123 SCREW M8x20 HEX FLG 07MY	-	6	Enquire
13	701348	SCREW M8x16	701348 SCREW M8x16 07MY	-	1	Enquire
14	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia -	-	1	Enquire
15	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R -	-	2	Enquire
16	699711	Â‘P Clip, 23 x 15 x M6	699711 Â‘P Clip, 23 x 15 x M6 -	-	2	Enquire
17	6G33FA0115AB	Screw & Washer, M6 x 20, Torx Hd	6G33FA0115AB Screw & Washer, M6 x 20, Torx Hd -	-	2	Enquire
18	700099	SCREW M6x20 HEX FLG	700099 SCREW M6x20 HEX FLG Cooling loop	-	3	Enquire
19	699994	CLAMP ASM O/FLOW	699994 CLAMP ASM O/FLOW -	-	2	Enquire
20	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass P/Steering Pump Outlet	-	2	Enquire
21	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head 4 off for 09MY IN STOCK	-	2	Enquire
22	3703203	Screw, flg, M6 x 25	3703203 Screw, flg, M6 x 25 5 off for 09MY	-	1	Enquire
23	8D333F558BB	TUB ASY-PWR STNG RTN	8D333F558BB TUB ASY-PWR STNG RTN 09MY	-	1	Enquire
24	8D333A713AB	RETURN HOSE COOLER TO RESERVOIR	8D333A713AB RETURN HOSE COOLER TO RESERVOIR 09MY	-	1	Enquire
25	8D333D746AB	COOLING LOOP POWER STEERING	8D333D746AB COOLING LOOP POWER STEERING 09MY	-	1	Enquire
26	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE 09MY	-	2	Enquire
27	4G436C727AA	HOSE CLIP (RAYMOND 81442) IN STOCK	4G436C727AA HOSE CLIP (RAYMOND 81442) 09MY IN STOCK	-	2	Enquire
