Power Steering of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

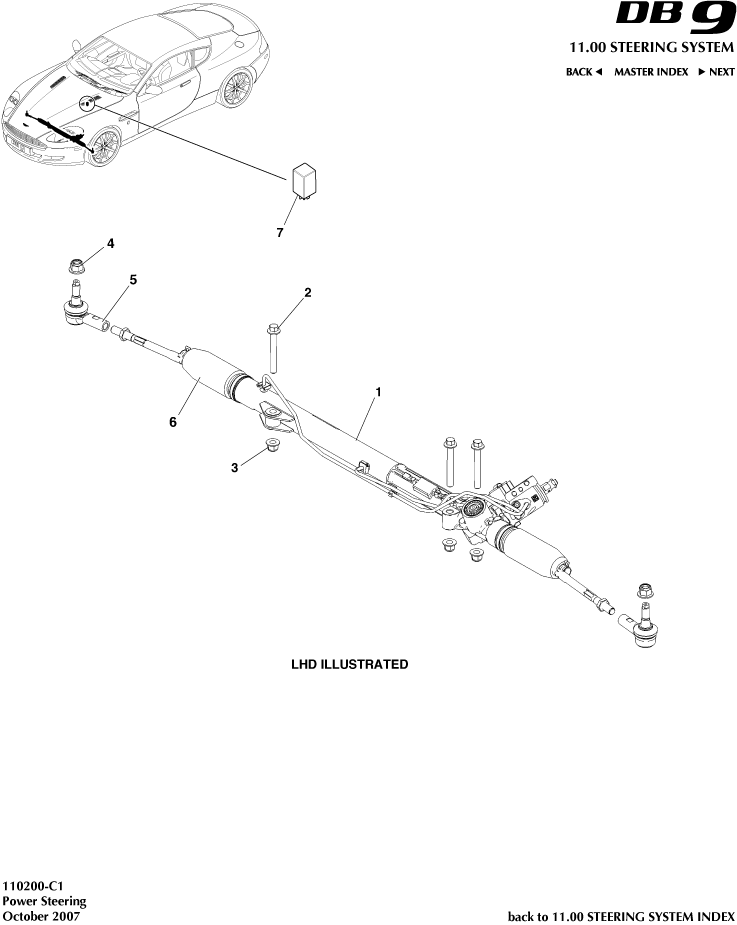

Aston Martin GT DB9 (2004-2017) - Power Steering

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AG433200AB	Steering Gear Assembly, LHD	AG433200AB Steering Gear Assembly, LHD From 6.5MY, LHD	-	1	Enquire
-	PY83SE22700AA	KIT - OIL PAN	PY83SE22700AA KIT - OIL PAN Up To 6.5MY, RHD	-	1	Enquire
-	AG433200BB	Steering Gear Assembly, RHD	AG433200BB Steering Gear Assembly, RHD From 6.5MY, RHD	-	1	Enquire
-	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE 08MY From (V) A09110	-	3	Enquire
-	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE 08MY From (V) A09110	-	3	Enquire
-	703136	NUT M14 x 1.5 NYLON INSERT CHROME FREE	703136 NUT M14 x 1.5 NYLON INSERT CHROME FREE 08MY From (V) A09110	-	2	Enquire
-	4G433N807AB	Lock-Nut, Outer Ball Joint	4G433N807AB Lock-Nut, Outer Ball Joint -	-	2	Enquire
-	6G433F826AB	STNG GR & LNKG ASY	6G433F826AB STNG GR & LNKG ASY From 6.5MY	-	1	Enquire
-	708883	P/SMPL-VIRIDIAN GRN	708883 P/SMPL-VIRIDIAN GRN -	-	1	Enquire
1	4G433200AG	STNG GR & LNKG ASY	4G433200AG STNG GR & LNKG ASY Up To 6.5MY, LHD	-	1	Enquire
2	701657	BOLT M12x90 HEX FLG	701657 BOLT M12x90 HEX FLG 07MY	-	3	Enquire
3	701183	NUT M12 HEX FLG P/T	701183 NUT M12 HEX FLG P/T 07MY	-	3	Enquire
4	701347	NUT M14x1.5 HP PTP	701347 NUT M14x1.5 HP PTP 07MY	-	2	Enquire
5	4G433289AA	Ball Joint, M14 x 1.5, Steering Outer ARRIVING SOON	4G433289AA Ball Joint, M14 x 1.5, Steering Outer - ARRIVING SOON	-	2	Enquire
6	4G433C560AA	BELLOWS KIT (SERVICE ONLY)	4G433C560AA BELLOWS KIT (SERVICE ONLY) -	-	2	Enquire
7	4G433F826AC	MODULE ASSY-POWER STEERING	4G433F826AC MODULE ASSY-POWER STEERING Up To 6.5MY	-	1	Enquire
