Cooler, Hoses & Reservoir, LHD of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Cooler, Hoses & Reservoir, LHD

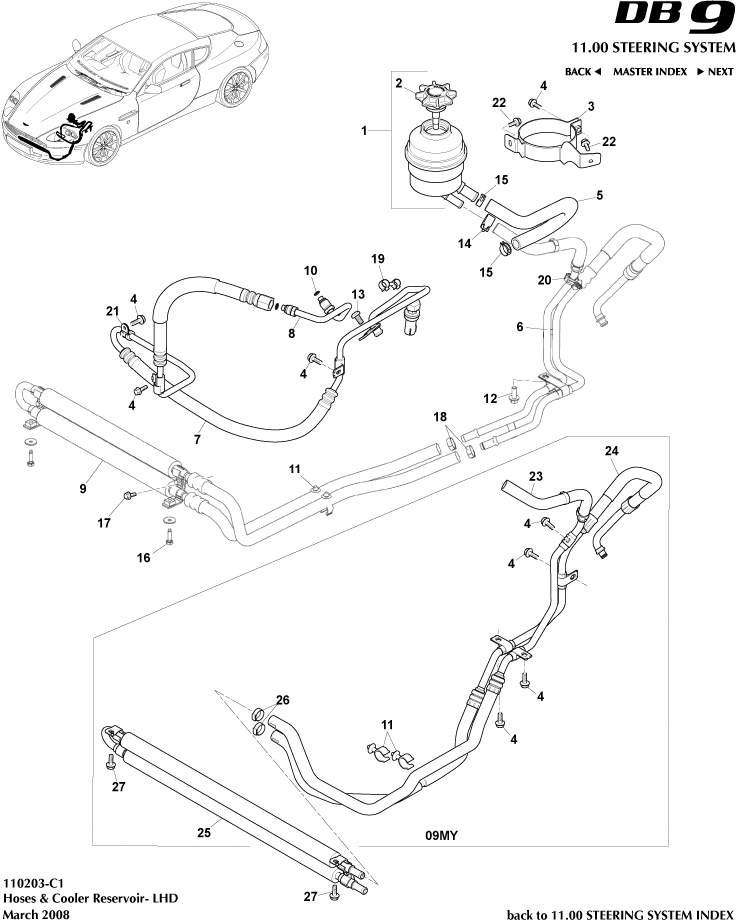

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 08MY From (V) A09110	-	3	Enquire
-	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	-	6	Enquire
-	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE 08MY From (V) A09110	-	1	Enquire
-	61315A9D334	Switch, trailer coupling	61315A9D334 Switch, trailer coupling Not illustrated	-	1	Enquire
-	699999S	POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM	699999S POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM Up To VIN A12504, See SB-11-0300	-	A/R	Enquire
-	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	6G3319H373BA Fluid Hydraulic ASM S-Cam (Service) 1 Litre From VIN A12505, Pentosin CHF11S. See SB-11-0300	-	A/R	Enquire
1	4G433R700AA	RESVR & CAP ASY-PWR	4G433R700AA RESVR & CAP ASY-PWR -	-	1	Enquire
2	AD2334006AA	Cap, Power Steering Reservoir	AD2334006AA Cap, Power Steering Reservoir -	-	1	Enquire
3	4G433489AD	Bracket Assy, PAS Reservoir	4G433489AD Bracket Assy, PAS Reservoir -	-	1	Enquire
4	700099	SCREW M6x20 HEX FLG	700099 SCREW M6x20 HEX FLG 07MY	-	3	Enquire
5	4G433E525AA	RESERVOIR TO PUMP SUCTION	4G433E525AA RESERVOIR TO PUMP SUCTION Reservoir to Pump	-	1	Enquire
6	4G433A713AC	ASSY TUBE PAS RETURN - LHD	4G433A713AC ASSY TUBE PAS RETURN - LHD -	-	1	Enquire
7	4G433A719AD	HOSE ASSY PAS PRESSURE LINE PUMP TO GEAR LHD	4G433A719AD HOSE ASSY PAS PRESSURE LINE PUMP TO GEAR LHD Pump to GR LH	-	1	Enquire
8	4G433494AA	PUMP OUTLET TUBE - HIGH PRESSURE	4G433494AA PUMP OUTLET TUBE - HIGH PRESSURE -	-	1	Enquire
9	4G433D746AC	COOLING LOOP (LHD) POWER STEERING	4G433D746AC COOLING LOOP (LHD) POWER STEERING -	-	1	Enquire
10	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass P/Steering Pump Outlet	-	2	Enquire
11	4G436C727AA	HOSE CLIP (RAYMOND 81442)	4G436C727AA HOSE CLIP (RAYMOND 81442) -	-	3	Enquire
12	700123	SCREW M8x20 HEX FLG	700123 SCREW M8x20 HEX FLG 07MY	-	6	Enquire
13	701348	SCREW M8x16	701348 SCREW M8x16 07MY	-	1	Enquire
14	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia -	-	1	Enquire
15	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R -	-	2	Enquire
16	6G33FA0115AB	Screw & Washer, M6 x 20, Torx Hd	6G33FA0115AB Screw & Washer, M6 x 20, Torx Hd -	-	2	Enquire
17	700099	SCREW M6x20 HEX FLG	700099 SCREW M6x20 HEX FLG -	-	2	Enquire
18	699994	CLAMP ASM O/FLOW	699994 CLAMP ASM O/FLOW -	-	2	Enquire
19	4G43105050AA	CLIP - DOUBLE REYMOND REF 80476	4G43105050AA CLIP - DOUBLE REYMOND REF 80476 -	-	1	Enquire
20	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	1	Enquire
21	694891	P-CLIP	694891 P-CLIP -	-	1	Enquire
22	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
23	8D333A713AB	RETURN HOSE COOLER TO RESERVOIR	8D333A713AB RETURN HOSE COOLER TO RESERVOIR 09MY	-	1	Enquire
24	8D333F558AC	Hose Return Gear to Cooler LHD	8D333F558AC Hose Return Gear to Cooler LHD 09MY	-	1	Enquire
25	8D333D746AB	COOLING LOOP POWER STEERING	8D333D746AB COOLING LOOP POWER STEERING 09MY	-	1	Enquire
26	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE 09MY	-	2	Enquire
27	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 09MY	-	2	Enquire
