Transaxle, Manual of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Transaxle, Manual

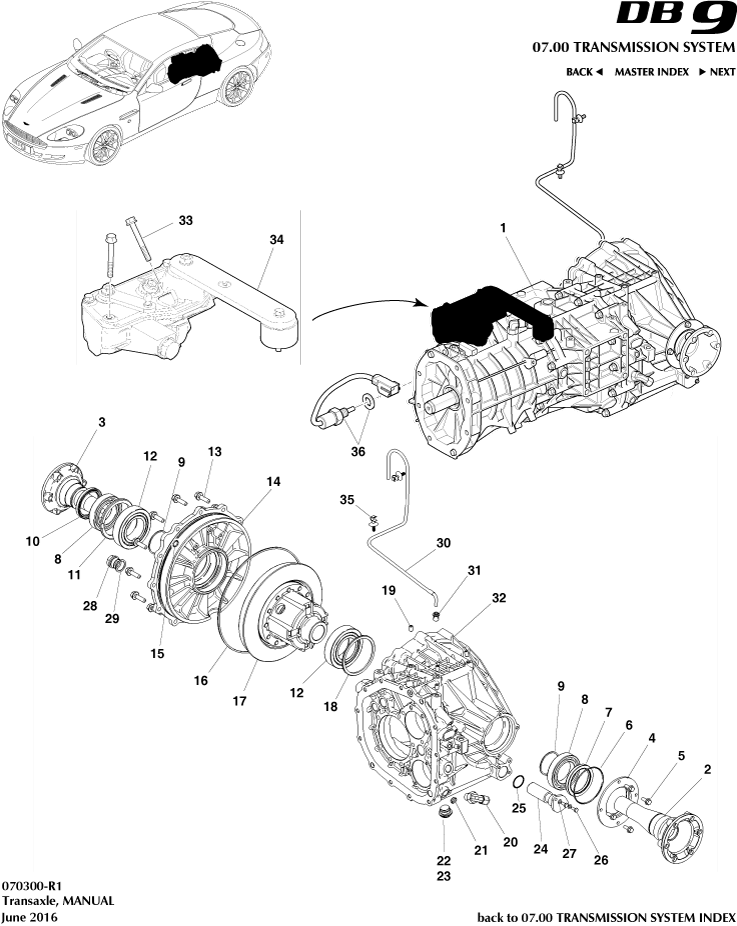

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4319G506AA	MOLYKOTE 7409 MAN SP	4G4319G506AA MOLYKOTE 7409 MAN SP -	-	1	Enquire
-	SY83973615BA	MAN PLT HDLP ANG GB	SY83973615BA MAN PLT HDLP ANG GB -	-	1	Enquire
-	6G3375106AAS	Oil, Manual Transmission, 1 ltr	6G3375106AAS Oil, Manual Transmission, 1 ltr -	-	1	Enquire
1	4G437002AD	TRANS AX ASY	4G437002AD TRANS AX ASY -	-	1	Enquire
2	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	4G432710600 OUTPUT SHAFT - LEFT SIDE DIF -	-	1	Enquire
3	4G432710601	OUTPUT SHAFT - RIGHT SIDE DIF	4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF -	-	1	Enquire
4	4G432710602	BEARING - DIF OUTPUT SHAFT LEFT HAND	4G432710602 BEARING - DIF OUTPUT SHAFT LEFT HAND -	-	1	Enquire
5	702812	Bolt, M6 x 16, Hex Flange Head	702812 Bolt, M6 x 16, Hex Flange Head -	-	4	Enquire
6	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87 -	-	1	Enquire
7	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 -	-	1	Enquire
8	4G432710603	Bearing, Differential Output Shaft	4G432710603 Bearing, Differential Output Shaft -	-	2	Enquire
9	702813	SHIM	702813 SHIM -	-	1	Enquire

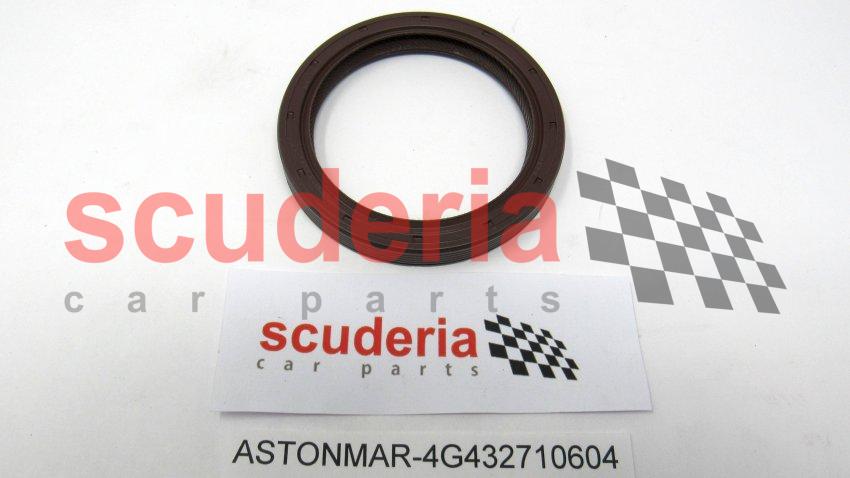

10	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 -	-	1	Enquire
11	702814	SHIM	702814 SHIM -	-	1	Enquire
12	4G432710605	Bearing, Differential Output	4G432710605 Bearing, Differential Output -	-	2	Enquire
13	702815	BOLT M8 x 30	702815 BOLT M8 x 30 -	-	12	Enquire
14	4G432710606	COVER - DIFFERENTIAL	4G432710606 COVER - DIFFERENTIAL -	-	1	Enquire
15	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92 -	-	1	Enquire
16	4G432710607	SEAL - COVER	4G432710607 SEAL - COVER -	-	1	Enquire
17	MY83SEHS000079AA	SCREW M6X33	MY83SEHS000079AA SCREW M6X33 -	-	1	Enquire
18	702816	SHIM	702816 SHIM -	-	1	Enquire
19	702817	Set Screw, M8 x 10	702817 Set Screw, M8 x 10 -	-	6	Enquire
20	SY9Y20011DA	BODYSIDE CLOSER - LH	SY9Y20011DA BODYSIDE CLOSER - LH -	-	1	Enquire
21	702818	PLUG	702818 PLUG -	-	1	Enquire
22	SY7Y020E46AB	LF SCRN END ASY RHS	SY7Y020E46AB LF SCRN END ASY RHS -	-	1	Enquire
23	7095976XL	T-SHIRT-AM-GREEN-6XL	7095976XL T-SHIRT-AM-GREEN-6XL -	-	1	Enquire

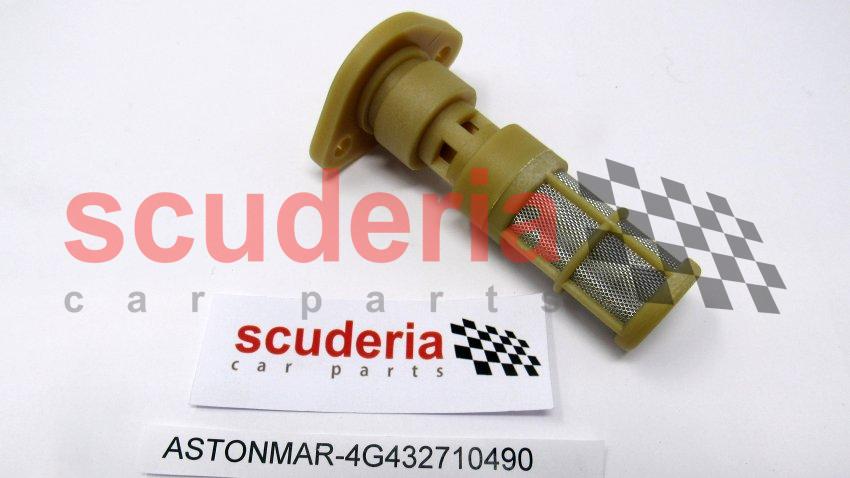

24	4G432710490	Filter, Oil	4G432710490 Filter, Oil -	-	1	Enquire
25	4G432710491	O Ring 2.62 x 20.63	4G432710491 O Ring 2.62 x 20.63 -	-	1	Enquire
26	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12 -	-	2	Enquire
27	702821	Washer, 5.3 x 0.5	702821 Washer, 5.3 x 0.5 -	-	2	Enquire
28	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22 -	-	1	Enquire
29	4G432710245	Copper Washer D/Plugg	4G432710245 Copper Washer D/Plugg -	-	1	Enquire
30	4G437A245CA	TUBE ASSY - MAN TRANSMISSION BREATHE	4G437A245CA TUBE ASSY - MAN TRANSMISSION BREATHE -	-	1	Enquire
31	MY8360528EDW	FR PANEL UPR ASSY	MY8360528EDW FR PANEL UPR ASSY -	-	1	Enquire
32	4G432710611	HOUSING-DIFFERENTIAL	4G432710611 HOUSING-DIFFERENTIAL -	-	1	Enquire
33	702822	BOLT M6 x 50	702822 BOLT M6 x 50 -	-	2	Enquire
34	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	6G337N372AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT -	-	1	Enquire
35	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe -	-	1	Enquire
36	6G338F875AA	REVERSE SWITCH AND WASHER KIT	6G338F875AA REVERSE SWITCH AND WASHER KIT -	-	1	Enquire
