Transmission Oil Cooler Pipes of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

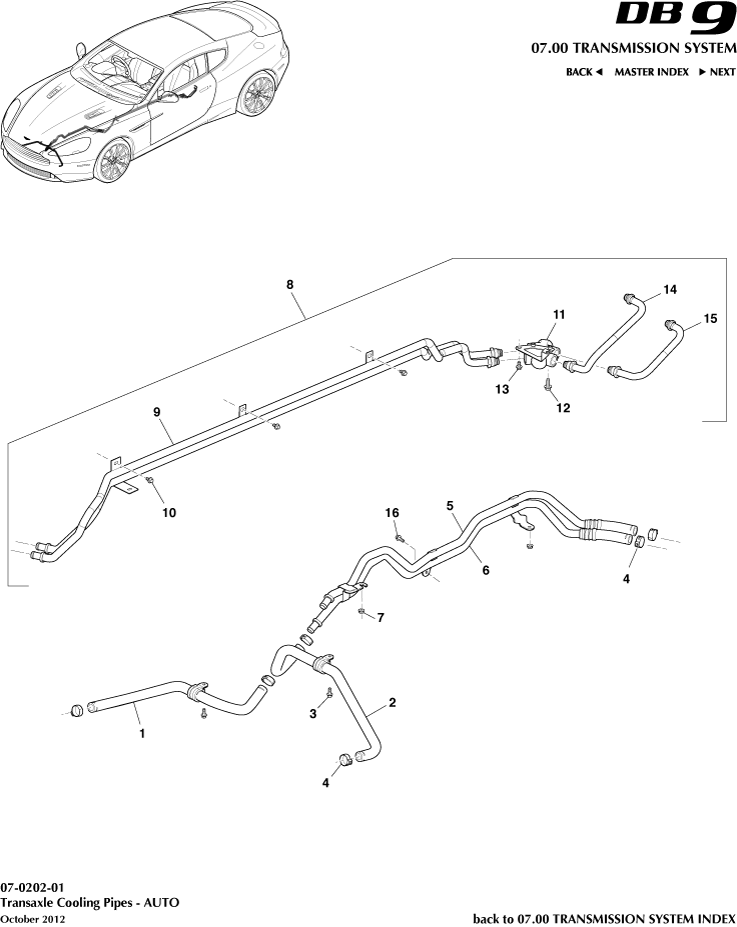

Aston Martin GT DB9 (2004-2017) - Transmission Oil Cooler Pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9D337F120BB	Hose, Transmission Oil Cooler Inlet	9D337F120BB Hose, Transmission Oil Cooler Inlet Includes P clips	-	1	Enquire
2	9D337F120AB	Hose, Transmission Oil Cooler Outlet	9D337F120AB Hose, Transmission Oil Cooler Outlet Includes P clips	-	1	Enquire
3	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	3	Enquire
5	CD337W093AC	Pipe Assembly, Engine Bay, Inlet	CD337W093AC Pipe Assembly, Engine Bay, Inlet -	-	1	Enquire
6	CD337W093BC	Pipe Assembly, Engine Bay, Outlet	CD337W093BC Pipe Assembly, Engine Bay, Outlet -	-	1	Enquire
7	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	2	Enquire
8	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	9G43321363AA OIL PIPE ASSEMBLY REAR TRANSMISSION -	-	1	Enquire
9	22AB020GP	ASSY PNL BODYSIDE RR LWR LH	22AB020GP ASSY PNL BODYSIDE RR LWR LH -	-	1	Enquire
10	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	3	Enquire
11	4G436L635AA	Thermostat, Transmission Oil Control	4G436L635AA Thermostat, Transmission Oil Control -	-	1	Enquire
12	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE -	-	1	Enquire
13	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
14	22AA531GP	ASSY PNL RR FENDER SUPPORT RH	22AA531GP ASSY PNL RR FENDER SUPPORT RH -	-	1	Enquire
15	22AA688GP	ASSY BRACKET SAB TO REAR FENDER RH	22AA688GP ASSY BRACKET SAB TO REAR FENDER RH -	-	1	Enquire
16	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	1	Enquire
