Transaxle Cooling, Auto of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Transaxle Cooling, Auto

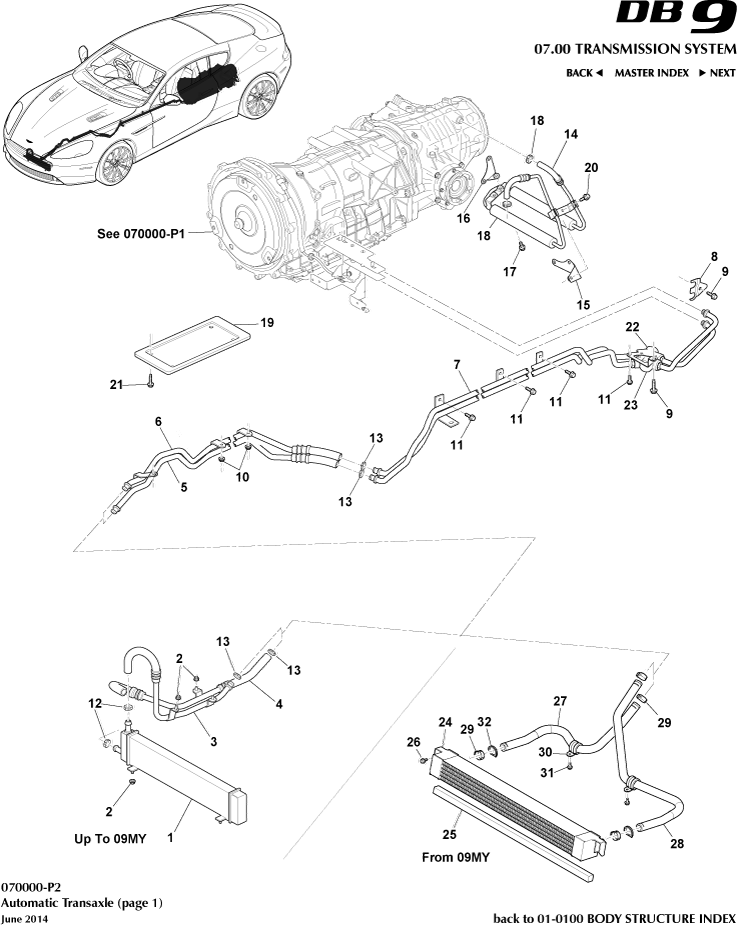

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G433111060	OIL PIPE KIT-WITHOUT OIL COOLER (USE FROM VIN 05543 to 09783)	4G433111060 OIL PIPE KIT-WITHOUT OIL COOLER (USE FROM VIN 05543 to 09783) From (V)05543 to 09783	-	1	Enquire

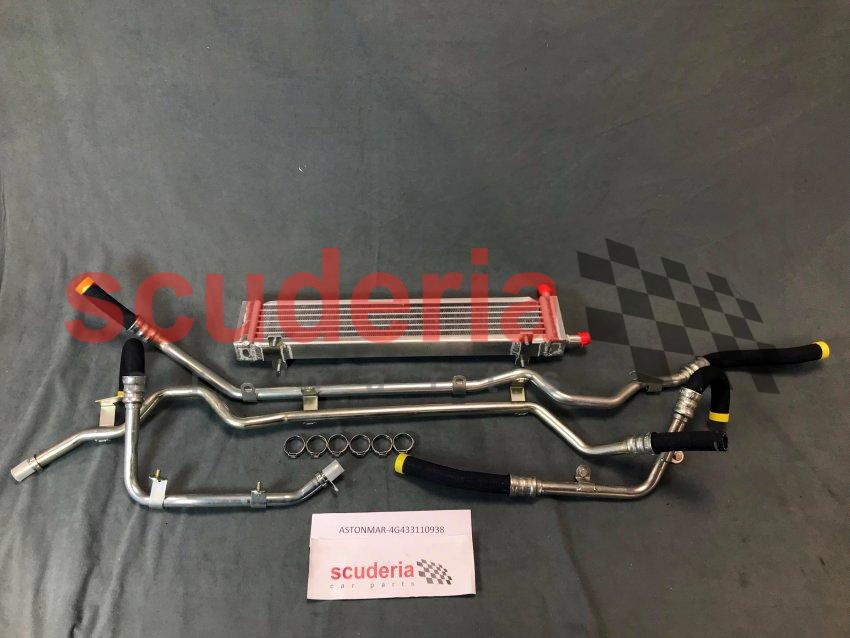

-	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	4G433110938 AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542 From VIN A09784, Contains items marked KT	-	1	Enquire
-	7G43445396AA	OIL COOLER - AUTO TRANS	7G43445396AA OIL COOLER - AUTO TRANS From (V) A09784 KT	-	1	Enquire

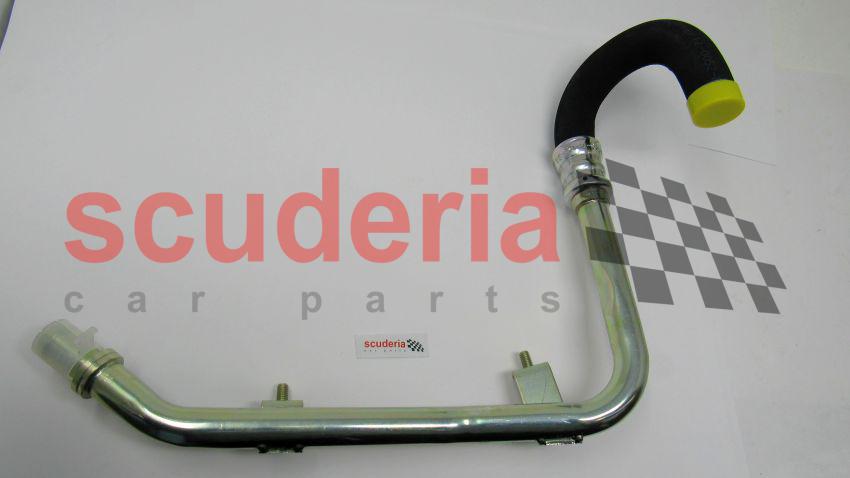

-	7G437F120BA	PIPE AIR/OIL COOLER INLET	7G437F120BA PIPE AIR/OIL COOLER INLET From (V) A09784 KT	-	1	Enquire
-	7G437F120AA	PIPE AIR/OIL COOLER OUTLET	7G437F120AA PIPE AIR/OIL COOLER OUTLET From (V) A09784 KT	-	1	Enquire
-	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET From (V) A09784 KT	-	1	Enquire
-	7G437W093AA	PIPE ENGINE BAY	7G437W093AA PIPE ENGINE BAY From (V) A09784 KT	-	1	Enquire
-	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	9G43321363AA OIL PIPE ASSEMBLY REAR TRANSMISSION From (V) A09784	-	1	Enquire
-	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE 08MY From (V) A09110	-	2	Enquire
-	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head 08MY From (V) A09110	-	3	Enquire
-	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head 08MY From (V) A09110	-	4	Enquire
-	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110	-	2	Enquire
-	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110	-	2	Enquire
1	4G43445396BC	MATRIX OIL COOLER	4G43445396BC MATRIX OIL COOLER Up to (V) A09783	-	1	Enquire
2	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	8	Enquire
3	4G437F120CB	PIPE INLET	4G437F120CB PIPE INLET Up to (V) A09783	-	1	Enquire
4	4G437F120BC	PIPE - OUTLET	4G437F120BC PIPE - OUTLET Up to (V) A09783	-	1	Enquire
5	4G437W093CC	PIPE-ENGINE BAY	4G437W093CC PIPE-ENGINE BAY Up to (V) A09783	-	1	Enquire
6	4G437W093BD	PIPE ENGINE BAY	4G437W093BD PIPE ENGINE BAY Up to (V) A09783	-	1	Enquire
7	4G43321363AC	OIL PIPE ASSEMBLY TRANS	4G43321363AC OIL PIPE ASSEMBLY TRANS Up to (V) A09783	-	1	Enquire
8	RY6311N653BA	CTR STK FLR PNL ASY	RY6311N653BA CTR STK FLR PNL ASY -	-	1	Enquire
9	701612	BOLT-M8x16 HEX FLG	701612 BOLT-M8x16 HEX FLG 07MY	-	2	Enquire
10	701170	NUT M6 HEX FLG GRD 8	701170 NUT M6 HEX FLG GRD 8 07MY	-	3	Enquire
11	701179	SCREW M6x12 HEX FLG	701179 SCREW M6x12 HEX FLG 07MY	-	4	Enquire
12	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R -	-	2	Enquire

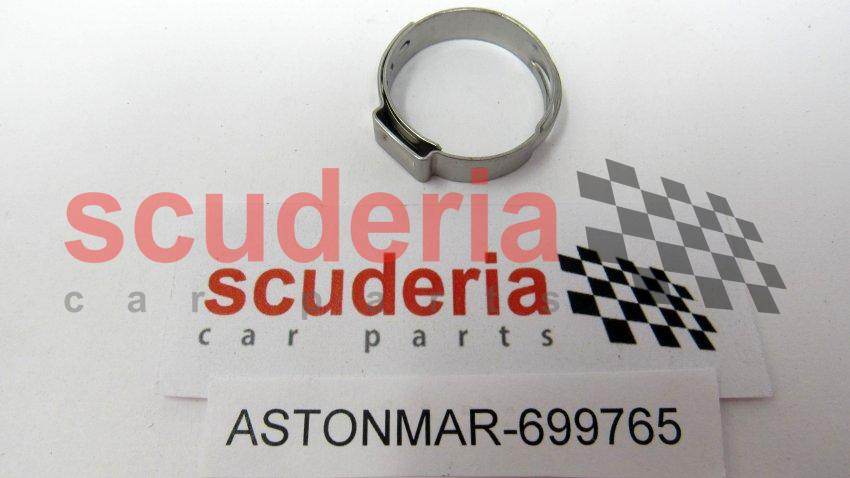

13	699765	HOSE CLAMP	699765 HOSE CLAMP KT	-	4	Enquire
14	4G437869AA	COOL AND BRACKET ASSY - TRANS OIL	4G437869AA COOL AND BRACKET ASSY - TRANS OIL -	-	1	Enquire
15	4G437B142AA	BRACKET TRANS OIL COOLER MTG	4G437B142AA BRACKET TRANS OIL COOLER MTG -	-	1	Enquire
16	4G437B142BA	BRACKET TRANS OIL COOLER MTG	4G437B142BA BRACKET TRANS OIL COOLER MTG -	-	1	Enquire
17	700250	BOLT M6x16	700250 BOLT M6x16 07MY	-	2	Enquire
18	699547	Clamp, Hose	699547 Clamp, Hose -	-	2	Enquire
19	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	4G437C309CB PLT ASY - TRANS GR SH OPG CVR -	-	1	Enquire
20	700250	BOLT M6x16	700250 BOLT M6x16 07MY	-	2	Enquire
21	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	4	Enquire
22	KY9Y32180AA	BRK CAL PAD PIN SET	KY9Y32180AA BRK CAL PAD PIN SET -	-	1	Enquire
23	4G436L635AA	Thermostat, Transmission Oil Control	4G436L635AA Thermostat, Transmission Oil Control -	-	1	Enquire
24	9G43445396AA	MATRIX OIL COOLER	9G43445396AA MATRIX OIL COOLER 09MY	-	1	Enquire
25	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper 09MY	-	1	Enquire
26	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass 09MY Oil cooler, AUTO trans	-	4	Enquire
27	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	9G437F120AA HOSE - AIR/OIL ASSY COOLER OUTLET 09MY	-	1	Enquire
28	9G437F120BA	HOSE - AIR/OIL ASSY COOLER INLET	9G437F120BA HOSE - AIR/OIL ASSY COOLER INLET 09MY	-	1	Enquire
29	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R 09MY	-	2	Enquire
30	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	9G437F120AA HOSE - AIR/OIL ASSY COOLER OUTLET 09MY	-	2	Enquire
31	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass 09MY Inlet/ Outlet hoses	-	2	Enquire
32	9G437R041AA	SEAL HOSE TRANS OIL COOLER	9G437R041AA SEAL HOSE TRANS OIL COOLER 09MY	-	2	Enquire
