Transaxle, Auto of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

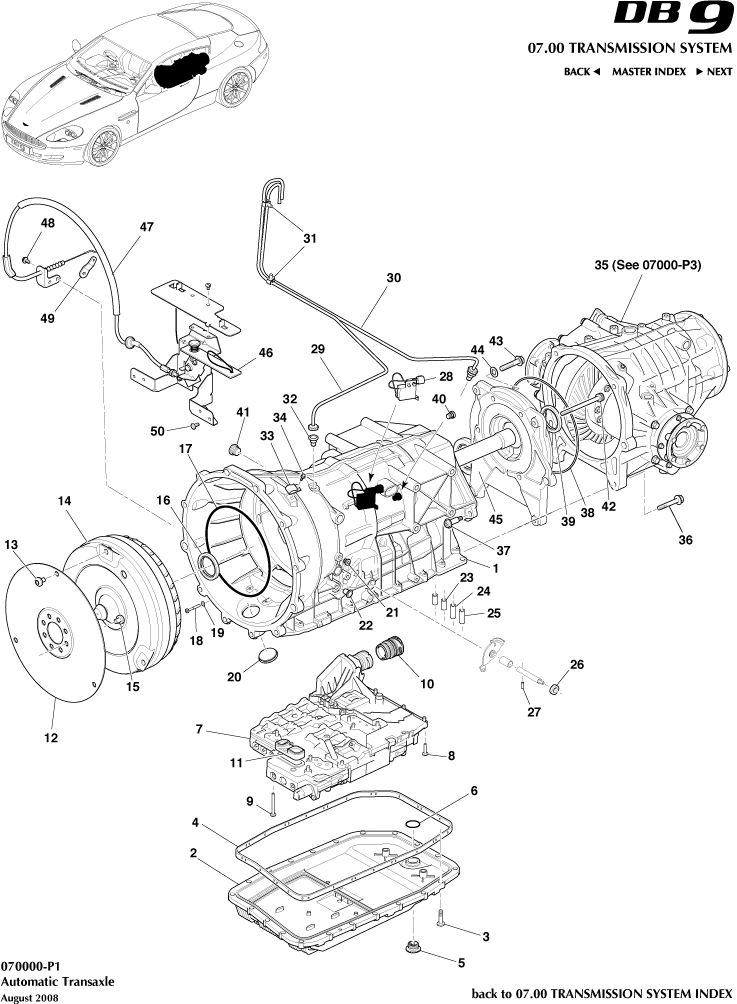

Aston Martin GT DB9 (2004-2017) - Transaxle, Auto

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G4370041AD	AUTO TRANS	8G4370041AD AUTO TRANS From 09MY - Includes item 14. You must also order item 42.	-	1	Enquire
-	4G434210272	Housing, AUTO Gearbox	4G434210272 Housing, AUTO Gearbox -	-	1	Enquire
-	8G4314C247AA	HARDWARE TRANS CONTROL MODULE (ZF 6HP26)	8G4314C247AA HARDWARE TRANS CONTROL MODULE (ZF 6HP26) 09MY	-	1	Enquire
-	4G4318801AB	RFI CAPACITOR MOUNTING PLATE	4G4318801AB RFI CAPACITOR MOUNTING PLATE -	-	1	Enquire
-	700250	BOLT M6x16	700250 BOLT M6x16 07MY	-	2	Enquire
-	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 08MY	-	2	Enquire
-	KY53L501A47CC	TONN FIN OUTER	KY53L501A47CC TONN FIN OUTER -	-	1	Enquire
-	4G434210267	OIL SEAL-TAIL SHAFT	4G434210267 OIL SEAL-TAIL SHAFT -	-	1	Enquire
-	8G437J168AC	BRKT ASSY AUTO PARK BRAKE RELEASE	8G437J168AC BRKT ASSY AUTO PARK BRAKE RELEASE 08MY	-	1	Enquire
-	9D337J168CB	BRKT ASSY AUTO PARK BRAKE RELEASE	9D337J168CB BRKT ASSY AUTO PARK BRAKE RELEASE 09MY	-	1	Enquire
-	8G437J167AD	CABLE ASSY AUTO PARK BRAKE RELEASE	8G437J167AD CABLE ASSY AUTO PARK BRAKE RELEASE 08MY	-	1	Enquire
-	498109719	RET-RR LP WIR	498109719 RET-RR LP WIR 09MY	-	1	Enquire
-	4G4319A509AAS	Fluid, Auto Transmission, 1ltr	4G4319A509AAS Fluid, Auto Transmission, 1ltr -	-	A/R	Enquire
1	KY9Y674A09BB	REAR BULKHEAD ASSY	KY9Y674A09BB REAR BULKHEAD ASSY Upto 08MY - Includes item 14. You must also order item 42.	-	1	Enquire
2	4G434210273	Oil Sump	4G434210273 Oil Sump -	-	1	Enquire
3	4G434210274	Screw, Torx Head	4G434210274 Screw, Torx Head -	-	21	Enquire
4	4G43184391AA	Transmission Sump Seal	4G43184391AA Transmission Sump Seal -	-	1	Enquire
5	4G434210277	SCREW PLUG -OIL SUMP	4G434210277 SCREW PLUG -OIL SUMP -	-	1	Enquire
6	4G437D741AA	Transmission Sump O ring	4G437D741AA Transmission Sump O ring -	-	1	Enquire
7	4G434210344	MECHOTRONIC UNIT/TCM	4G434210344 MECHOTRONIC UNIT/TCM -	-	1	Enquire
8	4G43807199DA	Screw, M6 x 20, Torx Head	4G43807199DA Screw, M6 x 20, Torx Head -	-	3	Enquire
9	4G43807199CA	Screw, M6 x 59, Torx Head	4G43807199CA Screw, M6 x 59, Torx Head -	-	7	Enquire
10	4G437F183AA	Guide Sleeve, Transmission Controller	4G437F183AA Guide Sleeve, Transmission Controller -	-	1	Enquire
11	4G437H586AA	TRANSMISSION MECHATRONIC MODULE ADAPTOR	4G437H586AA TRANSMISSION MECHATRONIC MODULE ADAPTOR -	-	1	Enquire
12	4G436K375AA	FLEX PLATE - REAR	4G436K375AA FLEX PLATE - REAR -	-	1	Enquire
13	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	4G43HYG10549AA SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK Flex plate to converter	-	3	Enquire
14	4G434210280	TORQUE CONVERTER	4G434210280 TORQUE CONVERTER -	-	1	Enquire
15	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	4G43HYG10549AA SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK Flex plate to crankshaft	-	8	Enquire
16	4G437A238AA	TRANSMISSION INPUT SHAFT SEAL	4G437A238AA TRANSMISSION INPUT SHAFT SEAL -	-	1	Enquire
17	4G43184335AA	TRANSMISSION HOUSING O RING	4G43184335AA TRANSMISSION HOUSING O RING -	-	1	Enquire
18	4G43807199BA	TORX SCREW	4G43807199BA TORX SCREW -	-	13	Enquire
19	4G437L015AA	TRANSMISSION HOUSING WASHER	4G437L015AA TRANSMISSION HOUSING WASHER -	-	13	Enquire
20	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE -	-	1	Enquire
21	4G434210276	SCREW PLUG	4G434210276 SCREW PLUG -	-	1	Enquire
22	4G4337521BA	TRANSMISSION BLANKING PLUG	4G4337521BA TRANSMISSION BLANKING PLUG -	-	1	Enquire
23	4G4329401AA	SEALING SLEEVE	4G4329401AA SEALING SLEEVE -	-	2	Enquire
24	4G4329401BA	SEALING SLEEVE	4G4329401BA SEALING SLEEVE -	-	2	Enquire
25	4G4329401CA	SEALING SLEEVE	4G4329401CA SEALING SLEEVE -	-	2	Enquire
26	4G437Z036AA	TRANSMISSION SELECTOR SHAFT SEAL	4G437Z036AA TRANSMISSION SELECTOR SHAFT SEAL -	-	1	Enquire
27	4G437Z309AC	Insulation, Transmission Case Cover	4G437Z309AC Insulation, Transmission Case Cover -	-	1	Enquire
28	4G433710250	TRANSMISSION ECU EMC CAPACITOR	4G433710250 TRANSMISSION ECU EMC CAPACITOR -	-	1	Enquire
29	4G437A245AA	TUBE ASSY - AUTO TRANSMISSION BREATHE	4G437A245AA TUBE ASSY - AUTO TRANSMISSION BREATHE -	-	1	Enquire
30	4G437A245BA	TUBE AUTOMATIC DIFFERENTIAL BREATHER	4G437A245BA TUBE AUTOMATIC DIFFERENTIAL BREATHER -	-	1	Enquire
31	701565	CLIP 4-6 DUx6.5	701565 CLIP 4-6 DUx6.5 -	-	2	Enquire
32	4G437179AA	Plug, Transmission Breather	4G437179AA Plug, Transmission Breather -	-	1	Enquire
33	4G432860AB	CLIP P LOCK DISENGAGE CABLE	4G432860AB CLIP P LOCK DISENGAGE CABLE Park brake cable	-	1	Enquire
34	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
36	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE -	-	4	Enquire
37	703182	BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE	703182 BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE -	-	1	Enquire
38	4G437J271AB	O Ring, Transmission Adapter Plate, Rear	4G437J271AB O Ring, Transmission Adapter Plate, Rear Trans. Adaptor Plate	-	1	Enquire
39	4G434210979	Oil Seal, 60 x 44 x 7mm	4G434210979 Oil Seal, 60 x 44 x 7mm -	-	1	Enquire
40	4G434210278	SCREW PLUG	4G434210278 SCREW PLUG -	-	1	Enquire
41	4G434210279	SCREW PLUG	4G434210279 SCREW PLUG -	-	1	Enquire
42	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 ALWAYS REPLACE. DO NOT RE-USE. Must be ordered with new transmission	-	1	Enquire
43	MY8366913EDW	BK/SHL UPR ASY	MY8366913EDW BK/SHL UPR ASY -	-	5	Enquire
44	RY6313068CD	FENDER CARRIER RH	RY6313068CD FENDER CARRIER RH -	-	5	Enquire
45	4G434211251	Shaft, Output	4G434211251 Shaft, Output -	-	1	Enquire
46	4G437J168AC	BRACKET - TRANS PARK LOCK DISENGAGE CABLE	4G437J168AC BRACKET - TRANS PARK LOCK DISENGAGE CABLE -	-	1	Enquire
47	4G437J167AC	CA ASY-TRANS PRK LK	4G437J167AC CA ASY-TRANS PRK LK -	-	1	Enquire
48	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	2	Enquire
49	4G437A257AB	Lever Arm, Auto Transmission to Disengage P Lock	4G437A257AB Lever Arm, Auto Transmission to Disengage P Lock -	-	1	Enquire
50	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	4	Enquire
