Brake Tube and Hose Assembly (RHD) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Brake Tube and Hose Assembly (RHD)

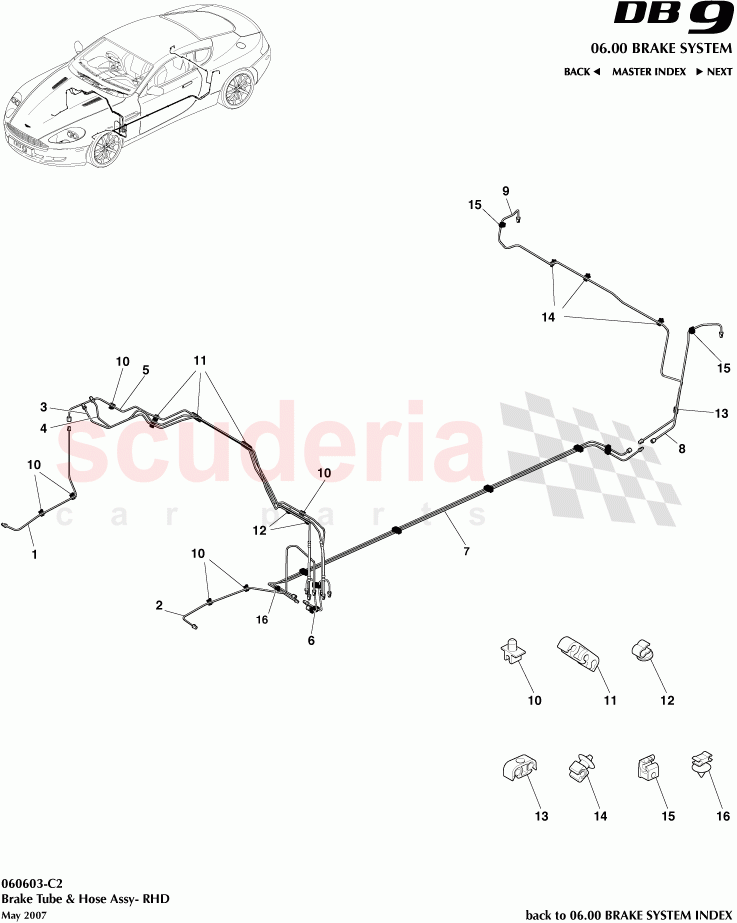

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G432263AD	TUBE ASSY - FRONT WHEEL BRAKE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432264AB	HOSE ASSEMBLY - FRONT WHEEL BRAKE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432M020BC	BKE PPE MCYL TO MOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432M019BC	BKE PPE MCYL TO MOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432263CD	TUBE ASSY - FRONT WHEEL BRAKE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332A478AB	Hose Assy, Brake, Modulator to Under Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A478BD	Hose Assy, Brake, Under Floor to Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432268CC	TUBE ASSY - REAR WHEEL BRAKE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432267CE	TUBE ASSY - REAR WHEEL BRAKE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33ANR1864AA	CLIP - BRAKE PIPE SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ADU8846AA	Clip, Brake Pipe, Triple	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ADU6075LAA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ANR3168AA	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4379124AA	Clip, Brake Pipe, Single	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ANR5999AA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G432263AD	TUBE ASSY - FRONT WHEEL BRAKE RH	4G432263AD TUBE ASSY - FRONT WHEEL BRAKE RH	-	1	Enquire
2	4G432264AB	HOSE ASSEMBLY - FRONT WHEEL BRAKE LH	4G432264AB HOSE ASSEMBLY - FRONT WHEEL BRAKE LH	-	1	Enquire
3	4G432M020BC	BKE PPE MCYL TO MOD	4G432M020BC BKE PPE MCYL TO MOD Secondary	-	1	Enquire
4	4G432M019BC	BKE PPE MCYL TO MOD	4G432M019BC BKE PPE MCYL TO MOD Primary	-	1	Enquire
5	4G432263CD	TUBE ASSY - FRONT WHEEL BRAKE RH	4G432263CD TUBE ASSY - FRONT WHEEL BRAKE RH RHD only	-	1	Enquire
6	6G332A478AB	Hose Assy, Brake, Modulator to Under Floor	6G332A478AB Hose Assy, Brake, Modulator to Under Floor	-	1	Enquire
7	4G432A478BD	Hose Assy, Brake, Under Floor to Rear	4G432A478BD Hose Assy, Brake, Under Floor to Rear	-	1	Enquire
8	4G432268CC	TUBE ASSY - REAR WHEEL BRAKE LH	4G432268CC TUBE ASSY - REAR WHEEL BRAKE LH	-	1	Enquire
9	4G432267CE	TUBE ASSY - REAR WHEEL BRAKE RH	4G432267CE TUBE ASSY - REAR WHEEL BRAKE RH	-	1	Enquire
10	8D33ANR1864AA	CLIP - BRAKE PIPE SINGLE	8D33ANR1864AA CLIP - BRAKE PIPE SINGLE	-	6	Enquire
11	4G43ADU8846AA	Clip, Brake Pipe, Triple	4G43ADU8846AA Clip, Brake Pipe, Triple	-	3	Enquire
12	4G43ADU6075LAA	CLIP - BRAKE PIPE DOUBLE	4G43ADU6075LAA CLIP - BRAKE PIPE DOUBLE	-	2	Enquire
13	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	4G4379125AA CLIP - BRAKE PIPE DOUBLE	-	8	Enquire
14	4G43ANR3168AA	CLIP - BRAKE PIPE	4G43ANR3168AA CLIP - BRAKE PIPE	-	3	Enquire
15	4G4379124AA	Clip, Brake Pipe, Single	4G4379124AA Clip, Brake Pipe, Single	-	5	Enquire
16	4G43ANR5999AA	CLIP - BRAKE PIPE DOUBLE	4G43ANR5999AA CLIP - BRAKE PIPE DOUBLE	-	1	Enquire
