Rear Brake Sub System of Aston Martin Aston Martin DB9 (2004-2012)

View All

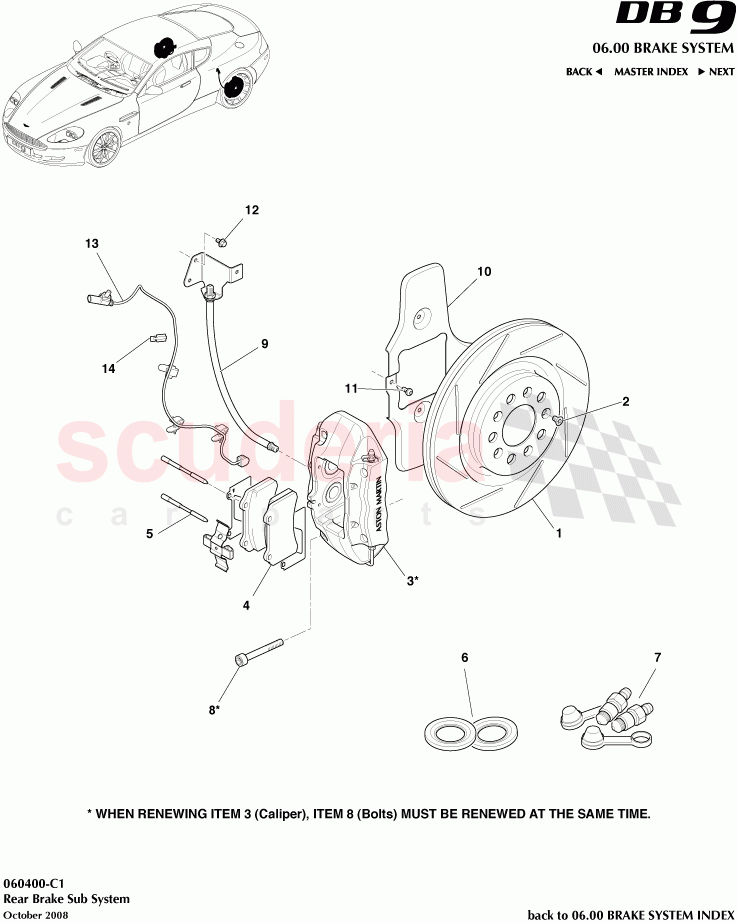

Aston Martin DB9 (2004-2012) - Rear Brake Sub System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G432810266	Rear Brake Disc	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G432C464FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS	Enquire	To Order
	7G432C465FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS	Enquire	To Order
	7G432C465EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7G432C562AA	Rear Brake Pad Kit	Enquire	ARRIVING SOON
	4G432810942	REAR BRAKE PADS & SHIM SET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G432C588BA	Pins and Spring Kit Rear Caliper	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G4332610AA	Kit, Dust Boot, Rear Caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order
	4G4333693AA	Cap, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	8G432282AB	HOSE REAR WHEEL BRAKE LH	Enquire	To Order
	8G432282BA	HOSE ASSY REAR WHEEL BRAKE RH	Enquire	To Order
	4G432282AB	HOS ASY-RR WHL BRK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D332C029AA	SHIELD - REAR BRAKE DISC LH	Enquire	To Order
	8D332C028AA	SHIELD - REAR BRAKE DISC RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

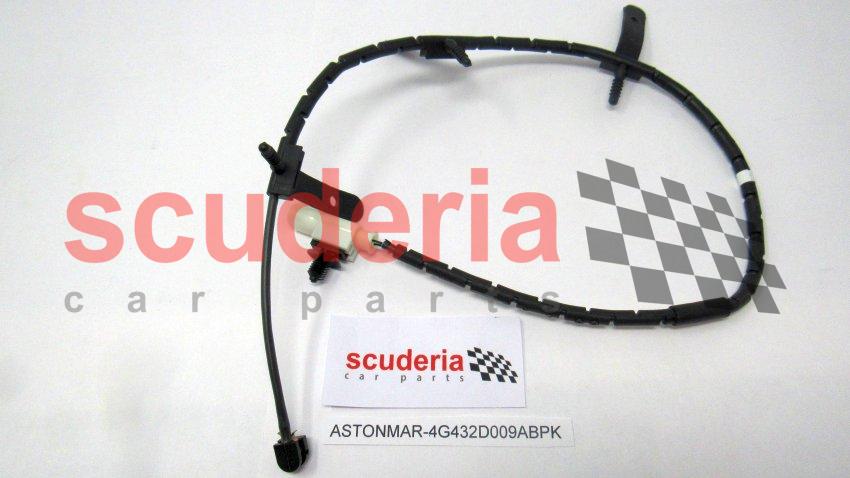

	4G432D009ABPK	Pad Wear Leads Rear (Pack of 4)	Enquire	To Order
	4G432D009ABPK	Pad Wear Leads Rear (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3790075	Cable Tie, 290mm	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G432810266	Rear Brake Disc ARRIVING SOON	4G432810266 Rear Brake Disc ARRIVING SOON	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
3	7G432C464FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS	7G432C464FA CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS 12MY	-	1	Enquire
3	7G432C465FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS	7G432C465FA CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS 12MY	-	1	Enquire
3	7G432C465EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	7G432C465EA CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	-	1	Enquire
3	7G432C465CA	CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS	7G432C465CA CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
3	7G432C464CA	CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS	7G432C464CA CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
3	7G432C465AA	CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS	7G432C465AA CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
3	7G432C464AA	CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS	7G432C464AA CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS	-	1	Enquire
3	7G432C465DA	CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS	7G432C465DA CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS	-	1	Enquire
3	7G432C464DA	CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS	7G432C464DA CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
3	4G432810942	REAR BRAKE PADS & SHIM SET ARRIVING SOON	4G432810942 REAR BRAKE PADS & SHIM SET ARRIVING SOON	-	1	Enquire
3	7G432C464EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS	7G432C464EA CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS	-	2	Enquire
4	7G432C562AA	Rear Brake Pad Kit ARRIVING SOON	7G432C562AA Rear Brake Pad Kit Per axle set ARRIVING SOON	-	1	Enquire
4	4G432810942	REAR BRAKE PADS & SHIM SET ARRIVING SOON	4G432810942 REAR BRAKE PADS & SHIM SET ARRIVING SOON	-	1	Enquire
5	4G432C588BA	Pins and Spring Kit Rear Caliper ARRIVING SOON	4G432C588BA Pins and Spring Kit Rear Caliper Per Caliper ARRIVING SOON	-	1	Enquire
6	4G4332610AA	Kit, Dust Boot, Rear Caliper	4G4332610AA Kit, Dust Boot, Rear Caliper Per Caliper	-	1	Enquire
7	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	1	Enquire
7	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
8	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL ARRIVING SOON	4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL Caliper to knuckle ARRIVING SOON	-	4	Enquire
9	8G432282AB	HOSE REAR WHEEL BRAKE LH	8G432282AB HOSE REAR WHEEL BRAKE LH 08MY onwards	-	1	Enquire
9	8G432282BA	HOSE ASSY REAR WHEEL BRAKE RH	8G432282BA HOSE ASSY REAR WHEEL BRAKE RH 08MY onwards	-	1	Enquire
9	4G432282AB	HOS ASY-RR WHL BRK	4G432282AB HOS ASY-RR WHL BRK Up to 08MY	-	1	Enquire
9	4G432282BB	HOSE ASY RR WHL BRK	4G432282BB HOSE ASY RR WHL BRK Up to 08MY	-	1	Enquire
10	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH	-	1	Enquire
10	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH	-	1	Enquire
11	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	8	Enquire
12	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
13	4G432D009ABPK	Pad Wear Leads Rear (Pack of 4)	4G432D009ABPK Pad Wear Leads Rear (Pack of 4)	-	2	Enquire
13	4G432D009ABPK	Pad Wear Leads Rear (Pack of 4)	4G432D009ABPK Pad Wear Leads Rear (Pack of 4)	-	1	Enquire
14	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm Lead to flex hose	-	2	Enquire
