Parking Brake (Manual) of Aston Martin Aston Martin DB9 (2004-2012)

View All

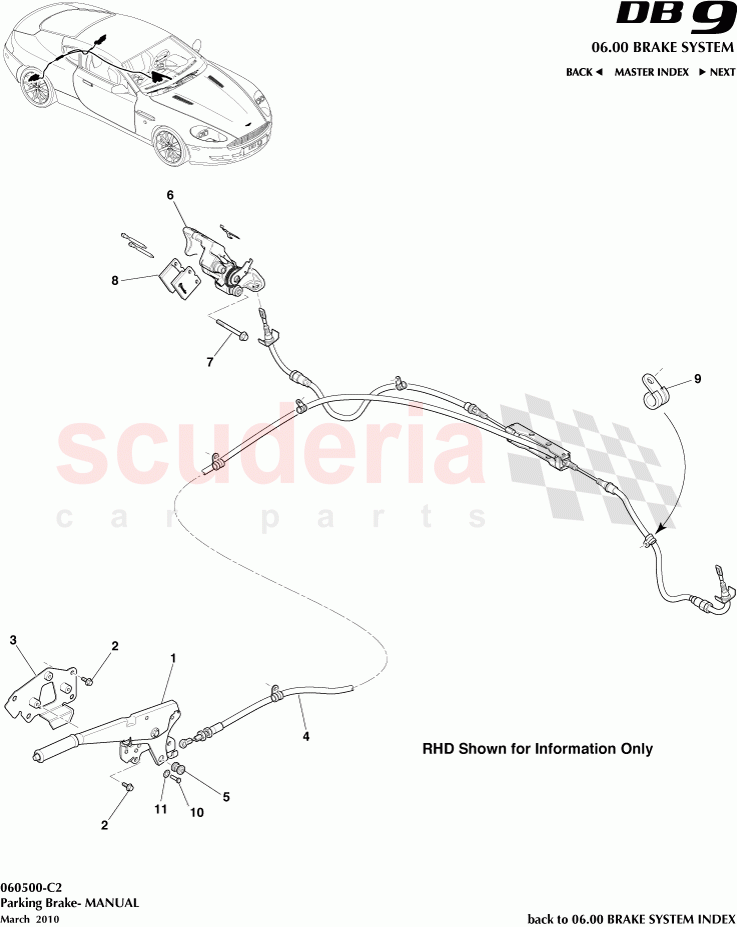

Aston Martin DB9 (2004-2012) - Parking Brake (Manual)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433011489	Handbrake Lever Assembly, LHD	Enquire	To Order
	4G433011504	Handbrake Lever Assembly, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A686AB	Bracket Assembly, Handbrake Lever, LHD	Enquire	To Order
	4G432A686BB	Bracket Assembly, Handbrake Lever, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432853AD	CABLE & CONDUIT ASSEMBLY, PARKING BRAKE	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G33439136AA	Trunnion, Handbrake Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G432C464BB	KIT HANDBRAKE CALIPER REPLACEMENT RH-PAINTED	Enquire	To Order
	7G432C465BB	KIT HANDBRAKE CALIPER REPLACEMENT LH-PAINTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C564CA	Bolt M10x87 Hex flange, secures EPB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C562BB	PADS HANDBRAKE	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	694891	P-CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G432K605AA	Pin, Pivot Cable, Handbrake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43338013AA	PLUG BLANKING (M6)	Enquire	To Order
	4G43228014AA	PLUG BLANKING (M8)	Enquire	To Order
	4G432B296BA	PINS - PAD RETAINING	Enquire	ARRIVING SOON

...and 7 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433011489	Handbrake Lever Assembly, LHD	4G433011489 Handbrake Lever Assembly, LHD Including pads	-	1	Enquire
1	4G433011504	Handbrake Lever Assembly, RHD	4G433011504 Handbrake Lever Assembly, RHD Including pads	-	1	Enquire
2	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	6	Enquire
3	4G432A686AB	Bracket Assembly, Handbrake Lever, LHD	4G432A686AB Bracket Assembly, Handbrake Lever, LHD	-	1	Enquire
3	4G432A686BB	Bracket Assembly, Handbrake Lever, RHD	4G432A686BB Bracket Assembly, Handbrake Lever, RHD	-	1	Enquire
4	4G432853AD	CABLE & CONDUIT ASSEMBLY, PARKING BRAKE ARRIVING SOON	4G432853AD CABLE & CONDUIT ASSEMBLY, PARKING BRAKE ARRIVING SOON	-	1	Enquire
5	6G33439136AA	Trunnion, Handbrake Cable	6G33439136AA Trunnion, Handbrake Cable	-	2	Enquire
6	7G432C464BB	KIT HANDBRAKE CALIPER REPLACEMENT RH-PAINTED	7G432C464BB KIT HANDBRAKE CALIPER REPLACEMENT RH-PAINTED	-	1	Enquire
6	7G432C465BB	KIT HANDBRAKE CALIPER REPLACEMENT LH-PAINTED	7G432C465BB KIT HANDBRAKE CALIPER REPLACEMENT LH-PAINTED	-	1	Enquire
7	4G432C564CA	Bolt M10x87 Hex flange, secures EPB	4G432C564CA Bolt M10x87 Hex flange, secures EPB Caliper to Hub	-	4	Enquire
8	4G432C562BB	PADS HANDBRAKE ARRIVING SOON	4G432C562BB PADS HANDBRAKE (per axle) ARRIVING SOON	-	1	Enquire
9	694891	P-CLIP	694891 P-CLIP	-	5	Enquire
10	7G432K605AA	Pin, Pivot Cable, Handbrake	7G432K605AA Pin, Pivot Cable, Handbrake	-	1	Enquire
11	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6) H/brake P clip rivnut blanking	-	1	Enquire
11	4G43228014AA	PLUG BLANKING (M8)	4G43228014AA PLUG BLANKING (M8) H/brake brkt rivnut blanking	-	4	Enquire
11	4G432B296BA	PINS - PAD RETAINING ARRIVING SOON	4G432B296BA PINS - PAD RETAINING 1 per caliper ARRIVING SOON	-	2	Enquire
11	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10	-	1	Enquire
11	4G432273AA	BLACK TPR BODY PLUG 25mm	4G432273AA BLACK TPR BODY PLUG 25mm	-	1	Enquire
11	3784688	Switch, Handbrake	3784688 Switch, Handbrake	-	1	Enquire

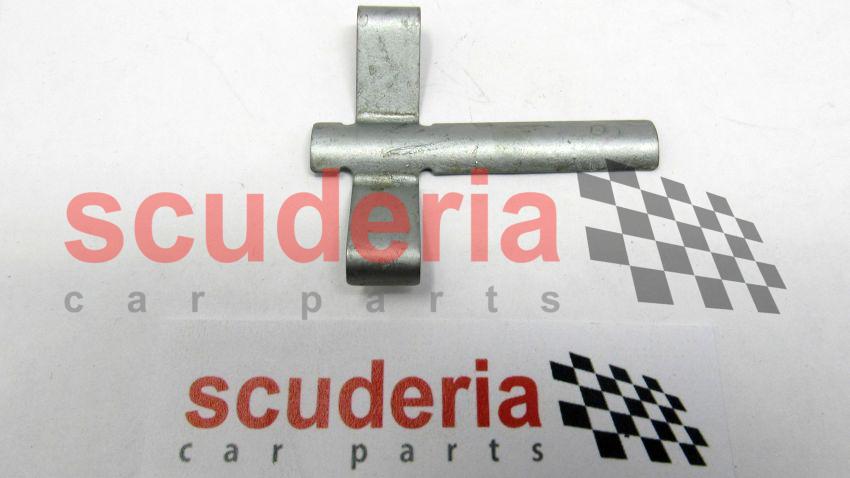

11	4G43224259BA	SPRING - ANTI RATTLE HANDBRAKE CAL RH ARRIVING SOON	4G43224259BA SPRING - ANTI RATTLE HANDBRAKE CAL RH ARRIVING SOON	-	2	Enquire
11	4G432W065AA	BOOT - SLIDING PIN	4G432W065AA BOOT - SLIDING PIN	-	2	Enquire
11	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	3	Enquire
11	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	5	Enquire
