Front Brake Sub System of Aston Martin Aston Martin DB9 (2004-2012)

View All

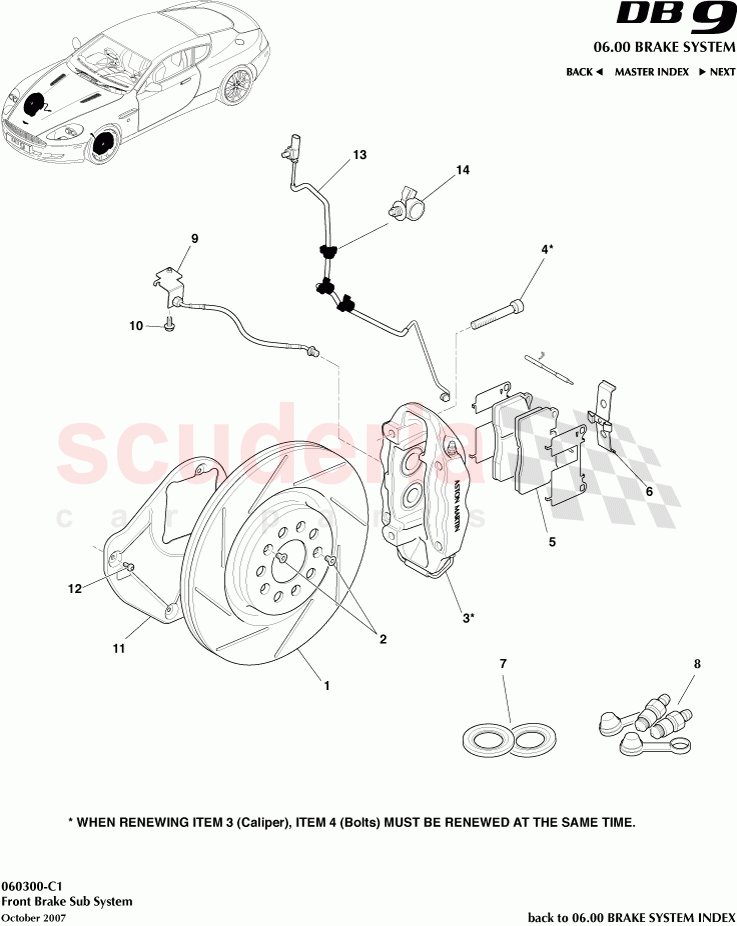

Aston Martin DB9 (2004-2012) - Front Brake Sub System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G432810265	Front Brake Disc	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C463FA	CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS	Enquire	To Order
	4G432C462FA	CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS	Enquire	To Order
	4G432C463EA	CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	7G432D007AA	Front Brake Pad Kit	Enquire	ARRIVING SOON
	4G432810941	FRONT BRAKE PADS & SHIM SET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G432C588AA	PINS AND SPRING KIT FRONT CALIPER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G4332180AA	DUST BOOT KIT FRONT CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order
	4G4333693AA	Cap, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432078AD	Hose Assembly, Front Wheel Brake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432K005AB	SHIELD FRONT BRAKE DISC LH	Enquire	To Order
	AD432K004AB	SHIELD - FRONT BRAKE DISC RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432L507AB	Pad wear Lead Front	Enquire	To Order
	4G432L507AB	Pad wear Lead Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G432810265	Front Brake Disc	4G432810265 Front Brake Disc	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
3	4G432C463FA	CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463FA CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS 12MY	-	1	Enquire
3	4G432C462FA	CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS	4G432C462FA CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS 12MY	-	1	Enquire
3	4G432C463EA	CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS	4G432C463EA CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS	-	1	Enquire
3	4G432C462EA	CALIPER ASSY SILVER - FRONT WHEEL BRAKE RH - NOT INC PADS	4G432C462EA CALIPER ASSY SILVER - FRONT WHEEL BRAKE RH - NOT INC PADS	-	1	Enquire
3	4G432C463CA	CALIPER ASSY BLACK - FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463CA CALIPER ASSY BLACK - FRONT WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
3	4G432C462CA	CALIPER ASSY BLACK - FRONT WHEEL BRAKE RH NOT INC PADS	4G432C462CA CALIPER ASSY BLACK - FRONT WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
3	4G432C463AA	CALIPER ASSY GREY - FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463AA CALIPER ASSY GREY - FRONT WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
3	4G432C462AA	CALIPER ASSY GREY - FRONT WHEEL BRAKE RH NOT INC PADS	4G432C462AA CALIPER ASSY GREY - FRONT WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
3	4G432C463DA	CALIPER ASSY RED - FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463DA CALIPER ASSY RED - FRONT WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
3	4G432C462DA	CALIPER ASSY RED - FRONT WHEEL BRAKE RH NOT INCL PADS	4G432C462DA CALIPER ASSY RED - FRONT WHEEL BRAKE RH NOT INCL PADS	-	1	Enquire
4	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL ARRIVING SOON	4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL - N.B. Do not reuse ARRIVING SOON	-	4	Enquire
5	7G432D007AA	Front Brake Pad Kit ARRIVING SOON	7G432D007AA Front Brake Pad Kit Per Axle Set ARRIVING SOON	-	1	Enquire
5	4G432810941	FRONT BRAKE PADS & SHIM SET ARRIVING SOON	4G432810941 FRONT BRAKE PADS & SHIM SET ARRIVING SOON	-	1	Enquire
6	4G432C588AA	PINS AND SPRING KIT FRONT CALIPER ARRIVING SOON	4G432C588AA PINS AND SPRING KIT FRONT CALIPER Per Caliper ARRIVING SOON	-	1	Enquire
7	4G4332180AA	DUST BOOT KIT FRONT CALIPER	4G4332180AA DUST BOOT KIT FRONT CALIPER Per Caliper	-	1	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	1	Enquire
8	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
9	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH	-	1	Enquire
10	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
11	AD432K005AB	SHIELD FRONT BRAKE DISC LH	AD432K005AB SHIELD FRONT BRAKE DISC LH	-	1	Enquire
11	AD432K004AB	SHIELD - FRONT BRAKE DISC RH	AD432K004AB SHIELD - FRONT BRAKE DISC RH	-	1	Enquire
12	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	8	Enquire
13	4G432L507AB	Pad wear Lead Front	4G432L507AB Pad wear Lead Front	-	2	Enquire
13	4G432L507AB	Pad wear Lead Front	4G432L507AB Pad wear Lead Front	-	1	Enquire
14	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100)	-	6	Enquire
