Infotainment Head Unit of Aston Martin Aston Martin Cygnet

View All

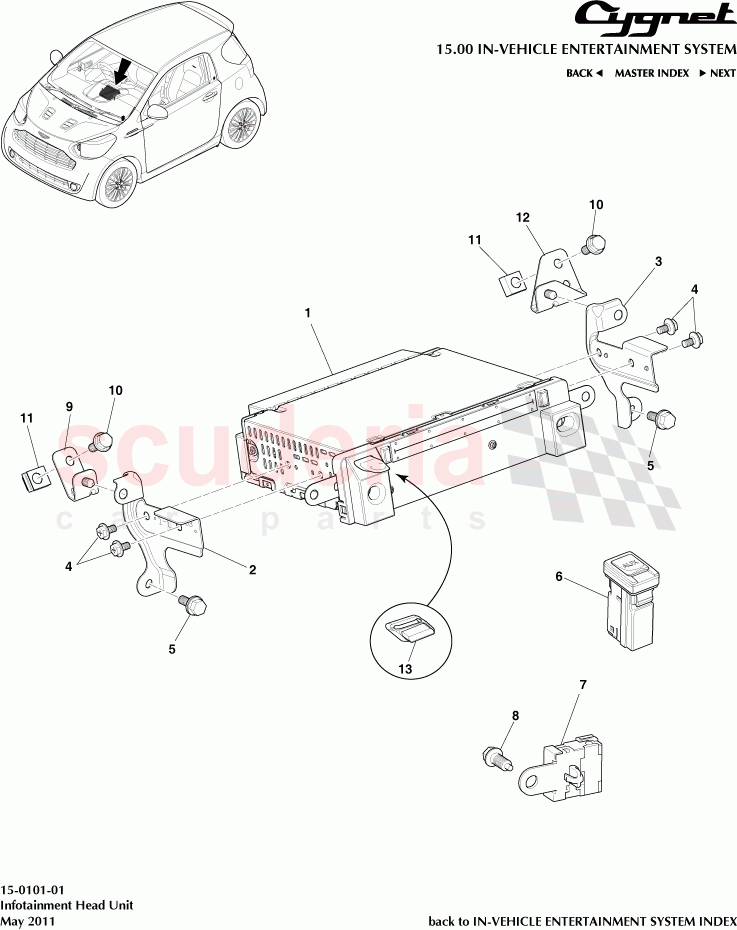

Aston Martin Cygnet - Infotainment Head Unit

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8612074010A0	Receiver Assy, Radio, CREAM/WHITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8621274010	Bracket, Radio No 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8621174010	Bracket, Radio No 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9015350010	Screw, Audio 3D Changer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90119W0030	Bolt, with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	861900D010	Adapter Assy, Stereo Jack No 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9098004189	Condenser, Radio Setting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011906915	Screw, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y8842AB	Bracket Assy, CD Unit Fixing LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9018305103	Nut, Edge M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y8843AB	Bracket Assy, CD Unit Fixing RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2YMA018ABA	CD Eject Button	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8612074010B0	Receiver Assy, Radio, PLUM	8612074010B0 Receiver Assy, Radio, PLUM	-	1	Enquire
-	8612074010C0	Receiver Assy, Radio, BLACK	8612074010C0 Receiver Assy, Radio, BLACK	-	1	Enquire
-	8612074010E0	Receiver Assy, Radio, BROWN	8612074010E0 Receiver Assy, Radio, BROWN	-	1	Enquire
-	8612074020BO	Receiver Assy, Radio, PLUM	8612074020BO Receiver Assy, Radio, PLUM Japanese Frequency	-	1	Enquire
1	8612074010A0	Receiver Assy, Radio, CREAM/WHITE	8612074010A0 Receiver Assy, Radio, CREAM/WHITE	-	1	Enquire
2	8621274010	Bracket, Radio No 2	8621274010 Bracket, Radio No 2	-	1	Enquire
3	8621174010	Bracket, Radio No 1	8621174010 Bracket, Radio No 1	-	1	Enquire
4	9015350010	Screw, Audio 3D Changer	9015350010 Screw, Audio 3D Changer	-	4	Enquire
5	90119W0030	Bolt, with Washer	90119W0030 Bolt, with Washer	-	2	Enquire
6	861900D010	Adapter Assy, Stereo Jack No 1	861900D010 Adapter Assy, Stereo Jack No 1	-	1	Enquire
7	9098004189	Condenser, Radio Setting	9098004189 Condenser, Radio Setting	-	1	Enquire
8	9011906915	Screw, RHD	9011906915 Screw, RHD	-	1	Enquire
9	AY2Y8842AB	Bracket Assy, CD Unit Fixing LH	AY2Y8842AB Bracket Assy, CD Unit Fixing LH	-	1	Enquire
10	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	2	Enquire
11	9018305103	Nut, Edge M6	9018305103 Nut, Edge M6	-	2	Enquire
12	AY2Y8843AB	Bracket Assy, CD Unit Fixing RH	AY2Y8843AB Bracket Assy, CD Unit Fixing RH	-	1	Enquire
13	AY2YMA018ABA	CD Eject Button	AY2YMA018ABA CD Eject Button	-	1	Enquire
