Find Your Part

Air Distribution Ducts of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Air Distribution Ducts

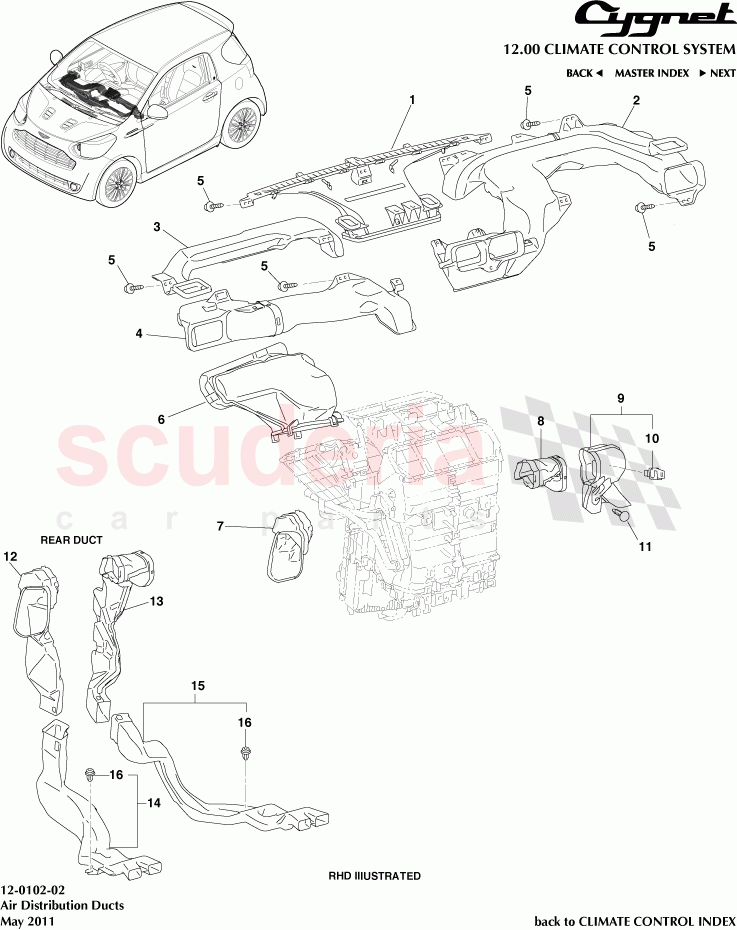

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5595074010	Nozzel Assy, Defroster	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5508574020	Duct Sub-Assy, Heater to Register, No.2, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5597274020	Duct, Side Defroster Nozzel, No.2, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5508474020	Duct Sub-Assy, Heater to Register, No.1, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9356855014	Screw, Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8720174110	Duct Sub-Assy, Air, No.4, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8720174030	Duct Sub-Assy, Air, No.1, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8720174020	Duct Sub-Assy, Air, No.2, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8720174170	Duct Sub-Assy, Air, No.3, RHD, MAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8862550130	Thermistor, Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046708186C0	Clip, Black, for Air Duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8720174100	Duct Sub-Assy, Air, No.1, COLD AREA SPEC, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8720174090	Duct Sub-Assy, Air, No.2, COLD AREA SPEC, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8723074010	Duct, Air, Rear No.2, COLD AREA SPEC, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8722074010	Duct, Air, Rear No.1, COLD AREA SPEC, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90467W0009	Clip	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5508574010	Duct Sub-Assy, Heater to Register, No.2, LHD	5508574010 Duct Sub-Assy, Heater to Register, No.2, LHD	-	1	Enquire
-	5597274010	Duct, Side Defroster Nozzel, No.2, LHD	5597274010 Duct, Side Defroster Nozzel, No.2, LHD	-	1	Enquire
-	5508474010	Duct Sub-Assy, Heater to Register, No.1, LHD	5508474010 Duct Sub-Assy, Heater to Register, No.1, LHD	-	1	Enquire
-	8720174120	Duct Sub-Assy, Air, No.4, LHD	8720174120 Duct Sub-Assy, Air, No.4, LHD	-	1	Enquire
-	8720174080	Duct Sub-Assy, Air, No.1, LHD	8720174080 Duct Sub-Assy, Air, No.1, LHD	-	1	Enquire
-	8720174070	Duct Sub-Assy, Air, No.2, LHD	8720174070 Duct Sub-Assy, Air, No.2, LHD	-	1	Enquire
-	8720174010	Duct Sub-Assy, Air, No.3, RHD, AUTO	8720174010 Duct Sub-Assy, Air, No.3, RHD, AUTO CVT	-	1	Enquire
-	8720174180	Duct Sub-Assy, Air, No.3, LHD, MAN	8720174180 Duct Sub-Assy, Air, No.3, LHD, MAN Manual	-	1	Enquire
-	8720174060	Duct Sub-Assy, Air, No.3, LHD, AUTO	8720174060 Duct Sub-Assy, Air, No.3, LHD, AUTO CVT	-	1	Enquire
1	5595074010	Nozzel Assy, Defroster	5595074010 Nozzel Assy, Defroster	-	1	Enquire
2	5508574020	Duct Sub-Assy, Heater to Register, No.2, RHD	5508574020 Duct Sub-Assy, Heater to Register, No.2, RHD	-	1	Enquire
3	5597274020	Duct, Side Defroster Nozzel, No.2, RHD	5597274020 Duct, Side Defroster Nozzel, No.2, RHD	-	1	Enquire
4	5508474020	Duct Sub-Assy, Heater to Register, No.1, RHD	5508474020 Duct Sub-Assy, Heater to Register, No.1, RHD	-	1	Enquire
5	9356855014	Screw, Tapping	9356855014 Screw, Tapping	-	11	Enquire
6	8720174110	Duct Sub-Assy, Air, No.4, RHD	8720174110 Duct Sub-Assy, Air, No.4, RHD	-	1	Enquire
7	8720174030	Duct Sub-Assy, Air, No.1, RHD	8720174030 Duct Sub-Assy, Air, No.1, RHD	-	1	Enquire
8	8720174020	Duct Sub-Assy, Air, No.2, RHD	8720174020 Duct Sub-Assy, Air, No.2, RHD	-	1	Enquire
9	8720174170	Duct Sub-Assy, Air, No.3, RHD, MAN	8720174170 Duct Sub-Assy, Air, No.3, RHD, MAN Manual	-	1	Enquire
10	8862550130	Thermistor, Cooler	8862550130 Thermistor, Cooler	-	1	Enquire
11	9046708186C0	Clip, Black, for Air Duct	9046708186C0 Clip, Black, for Air Duct	-	1	Enquire
12	8720174100	Duct Sub-Assy, Air, No.1, COLD AREA SPEC, LHD	8720174100 Duct Sub-Assy, Air, No.1, COLD AREA SPEC, LHD Cold Area Spec	-	1	Enquire
13	8720174090	Duct Sub-Assy, Air, No.2, COLD AREA SPEC, LHD	8720174090 Duct Sub-Assy, Air, No.2, COLD AREA SPEC, LHD Cold Area Spec	-	1	Enquire
14	8723074010	Duct, Air, Rear No.2, COLD AREA SPEC, LHD	8723074010 Duct, Air, Rear No.2, COLD AREA SPEC, LHD Cold Area Spec	-	1	Enquire
15	8722074010	Duct, Air, Rear No.1, COLD AREA SPEC, LHD	8722074010 Duct, Air, Rear No.1, COLD AREA SPEC, LHD Cold Area Spec	-	1	Enquire
16	90467W0009	Clip	90467W0009 Clip	-	2	Enquire
