Aston Martin Cygnet - AC Compressor and Lines

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8832074030 Compressor Assy, Cooler Enquire To Order
Photo Part No Description Price (each) Stock
8841074030 Clutch Assy, Magnet Enquire To Order
Photo Part No Description Price (each) Stock
9009904349 Bolt, Washer Enquire To Order
Photo Part No Description Price (each) Stock
9009907063 Snap Ring Enquire To Order
Photo Part No Description Price (each) Stock
9009907114 Snap Ring Enquire To Order
Photo Part No Description Price (each) Stock
8833514020 Washer, Magnet Clutch Enquire To Order
Photo Part No Description Price (each) Stock
8889174030 Cover, Cooler Enquire To Order
Photo Part No Description Price (each) Stock
9415180600 Nut Enquire To Order
Photo Part No Description Price (each) Stock
8844474030 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
9167180816 Bolt, Flange Enquire To Order
Photo Part No Description Price (each) Stock
8844074010 Pulley Assy Enquire To Order
Photo Part No Description Price (each) Stock
8866474010 Bolt, Idler Enquire To Order
Photo Part No Description Price (each) Stock
8868874050 Bracket, Cooler Compressor Enquire To Order
Photo Part No Description Price (each) Stock
9331915008 Screw, W/Washer Enquire To Order
Photo Part No Description Price (each) Stock
9011908C78 Bolt, W/Washer Enquire To Order
Photo Part No Description Price (each) Stock
9012608061 Stud, Hexalobular Enquire To Order
Photo Part No Description Price (each) Stock
9415180800 Nut, Transmission Control Cable Enquire To Order
Photo Part No Description Price (each) Stock
8846074010 Condenser Assy, Cooler Enquire To Order
Photo Part No Description Price (each) Stock
8847417010 Dryer, Cooler Enquire To Order
Photo Part No Description Price (each) Stock
8871074030 Tube Assy, Air Conditioner Enquire To Order
Photo Part No Description Price (each) Stock
8871933020 Sensor, Air Conditioner Pressure Enquire To Order
Photo Part No Description Price (each) Stock
8837530280 Cap, Service Valve, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
8837430010 Valve, Service, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
90105W0033 Bolt, Flange Enquire To Order
Photo Part No Description Price (each) Stock
91551A0618 Bolt, Flange Enquire To Order
Photo Part No Description Price (each) Stock
8871574010 Pipe, Cooler Refrigerant Discharge Enquire To Order
Photo Part No Description Price (each) Stock
8871874010 Clamp, Piping Enquire To Order
Photo Part No Description Price (each) Stock
8870374030 Hose Sub-Assy, Discharge Enquire To Order
Photo Part No Description Price (each) Stock
90119W0030 Bolt, with Washer Enquire To Order
Photo Part No Description Price (each) Stock
8870474030 Hose Sub-Assy, Suction Enquire To Order
Photo Part No Description Price (each) Stock
8870774030 Pipe Sub-Assy, Suction Enquire To Order
Photo Part No Description Price (each) Stock
8837530290 Cap, Service Valve, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
8837430010 Valve, Service, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
8851574010 Valve, Cooler Expansion Enquire To Order
View All

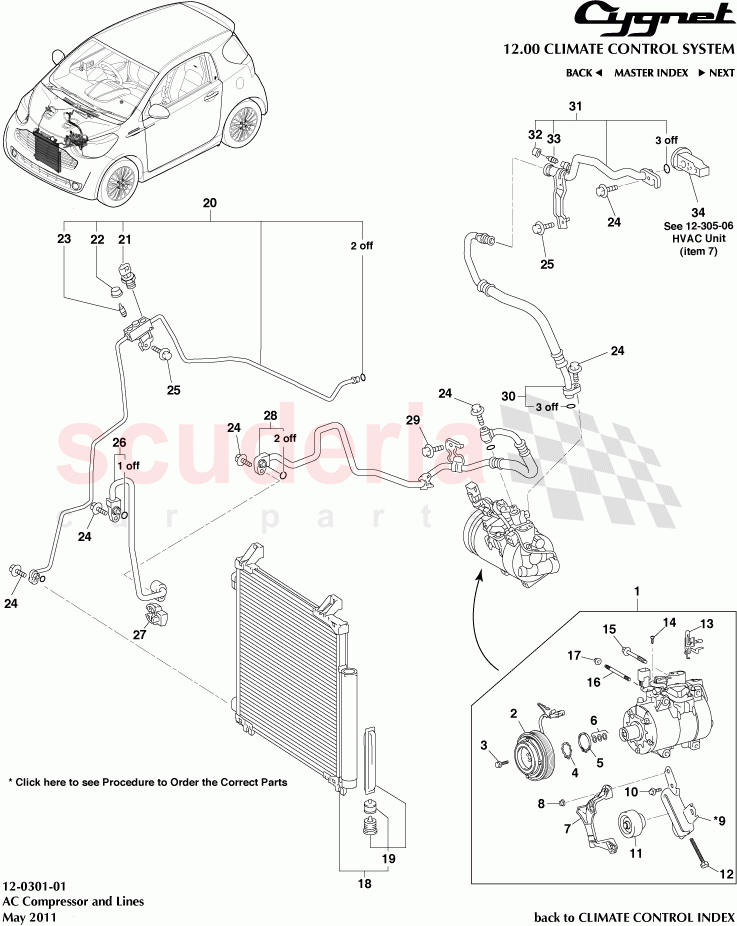

AC Compressor and Lines of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8844474060
Bracket
*From 05/2011 		- 1 Enquire
- 8870374031
Hose Sub-Assy, Discharge
From 05/2011 		- 1 Enquire
- 8851568010
Valve, Cooler Expansion
From 10/2010 		- 1 Enquire
1 8832074030
Compressor Assy, Cooler 		- 1 Enquire
2 8841074030
Clutch Assy, Magnet 		- 1 Enquire
3 9009904349
Bolt, Washer 		- 1 Enquire
4 9009907063
Snap Ring 		- 1 Enquire
5 9009907114
Snap Ring 		- 1 Enquire
6 8833514020
Washer, Magnet Clutch 		- 3 Enquire
7 8889174030
Cover, Cooler 		- 1 Enquire
8 9415180600
Nut 		- 1 Enquire
9 8844474030
Bracket
*09/2010 to 05/2011 		- 1 Enquire
10 9167180816
Bolt, Flange 		- 3 Enquire
11 8844074010
Pulley Assy 		- 1 Enquire
12 8866474010
Bolt, Idler 		- 1 Enquire
13 8868874050
Bracket, Cooler Compressor 		- 1 Enquire
14 9331915008
Screw, W/Washer 		- 1 Enquire
15 9011908C78
Bolt, W/Washer 		- 2 Enquire
16 9012608061
Stud, Hexalobular 		- 2 Enquire
17 9415180800
Nut, Transmission Control Cable 		- 2 Enquire
18 8846074010
Condenser Assy, Cooler 		- 1 Enquire
19 8847417010
Dryer, Cooler 		- 1 Enquire
20 8871074030
Tube Assy, Air Conditioner 		- 1 Enquire
21 8871933020
Sensor, Air Conditioner Pressure 		- 1 Enquire
22 8837530280
Cap, Service Valve, No.2 		- 1 Enquire
23 8837430010
Valve, Service, No.2 		- 1 Enquire
24 90105W0033
Bolt, Flange 		- 5 Enquire
25 91551A0618
Bolt, Flange 		- 3 Enquire
26 8871574010
Pipe, Cooler Refrigerant Discharge 		- 3 Enquire
27 8871874010
Clamp, Piping 		- 1 Enquire
28 8870374030
Hose Sub-Assy, Discharge
05/2009 to 04/2011 		- 1 Enquire
29 90119W0030
Bolt, with Washer 		- 1 Enquire
30 8870474030
Hose Sub-Assy, Suction 		- 1 Enquire
31 8870774030
Pipe Sub-Assy, Suction 		- 1 Enquire
32 8837530290
Cap, Service Valve, No.1 		- 1 Enquire
33 8837430010
Valve, Service, No.2 		- 1 Enquire
34 8851574010
Valve, Cooler Expansion
11/2008 to 10/2010 		- 1 Enquire
