Aston Martin Cygnet - Restraint Electronics

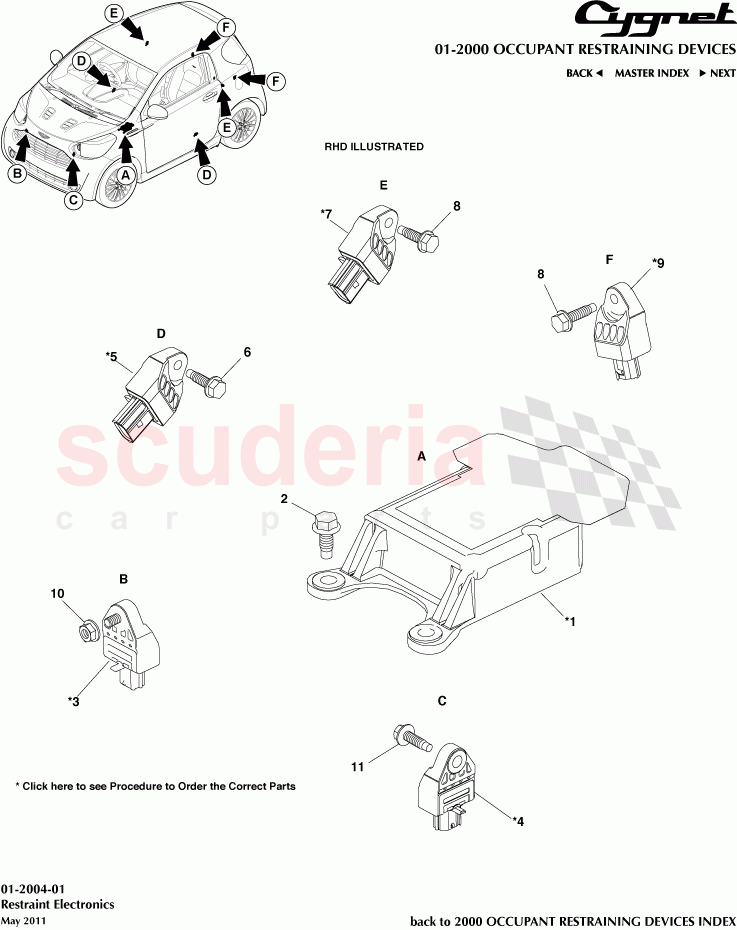

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8917074030	Sensor Assy, Air Bag, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011908C48	Bolt, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8917369205	Sensor, Air Bag Front, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8917379015	Sensor, Air Bag Front, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983174010	Sensor, Air Bag Side, Door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155380620	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983133020	Sensor, Air Bag Side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155380618	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983148020	Sensor, Air Bag Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9415180640	Nut, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91553A0625	Bolt, Flange	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8917074130	Sensor Assy, Air Bag, RHD	8917074130 Sensor Assy, Air Bag, RHD *From 08/2010	-	1	Enquire
-	8917074040	Sensor Assy, Air Bag, LHD	8917074040 Sensor Assy, Air Bag, LHD *To 08/2010	-	1	Enquire
-	8917074140	Sensor Assy, Air Bag, LHD	8917074140 Sensor Assy, Air Bag, LHD *From 08/2010	-	1	Enquire
-	8917379055	Sensor, Air Bag Front, RHS	8917379055 Sensor, Air Bag Front, RHS *From 08/2010	-	1	Enquire
-	8917379065	Sensor, Air Bag Front, LHS	8917379065 Sensor, Air Bag Front, LHS *From 08/2010	-	1	Enquire
-	8983160040	Sensor, Air Bag Side, Door	8983160040 Sensor, Air Bag Side, Door *From 08/2010, 1 per side	-	2	Enquire
-	8983175010	Sensor, Air Bag Side	8983175010 Sensor, Air Bag Side *From 08/2010, 1 per side	-	2	Enquire
-	8983121010	Sensor, Air Bag Rear	8983121010 Sensor, Air Bag Rear *From 08/2010	-	2	Enquire
1	8917074030	Sensor Assy, Air Bag, RHD	8917074030 Sensor Assy, Air Bag, RHD *To 08/2010	-	1	Enquire
2	9011908C48	Bolt, W/Washer	9011908C48 Bolt, W/Washer	-	3	Enquire
3	8917369205	Sensor, Air Bag Front, RHS	8917369205 Sensor, Air Bag Front, RHS *To 08/2010	-	1	Enquire
4	8917379015	Sensor, Air Bag Front, LHS	8917379015 Sensor, Air Bag Front, LHS *To 08/2010	-	1	Enquire
5	8983174010	Sensor, Air Bag Side, Door	8983174010 Sensor, Air Bag Side, Door *To 08/2010, 1 per side	-	2	Enquire
6	9155380620	Bolt, Flange	9155380620 Bolt, Flange 1 per side	-	2	Enquire
7	8983133020	Sensor, Air Bag Side	8983133020 Sensor, Air Bag Side *To 08/2010, 1 per side	-	2	Enquire
8	9155380618	Bolt, Flange	9155380618 Bolt, Flange 1 per sensor	-	4	Enquire
9	8983148020	Sensor, Air Bag Rear	8983148020 Sensor, Air Bag Rear *To 08/2010	-	2	Enquire
10	9415180640	Nut, Flange	9415180640 Nut, Flange	-	1	Enquire
11	91553A0625	Bolt, Flange	91553A0625 Bolt, Flange	-	1	Enquire
