Coolant lines of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

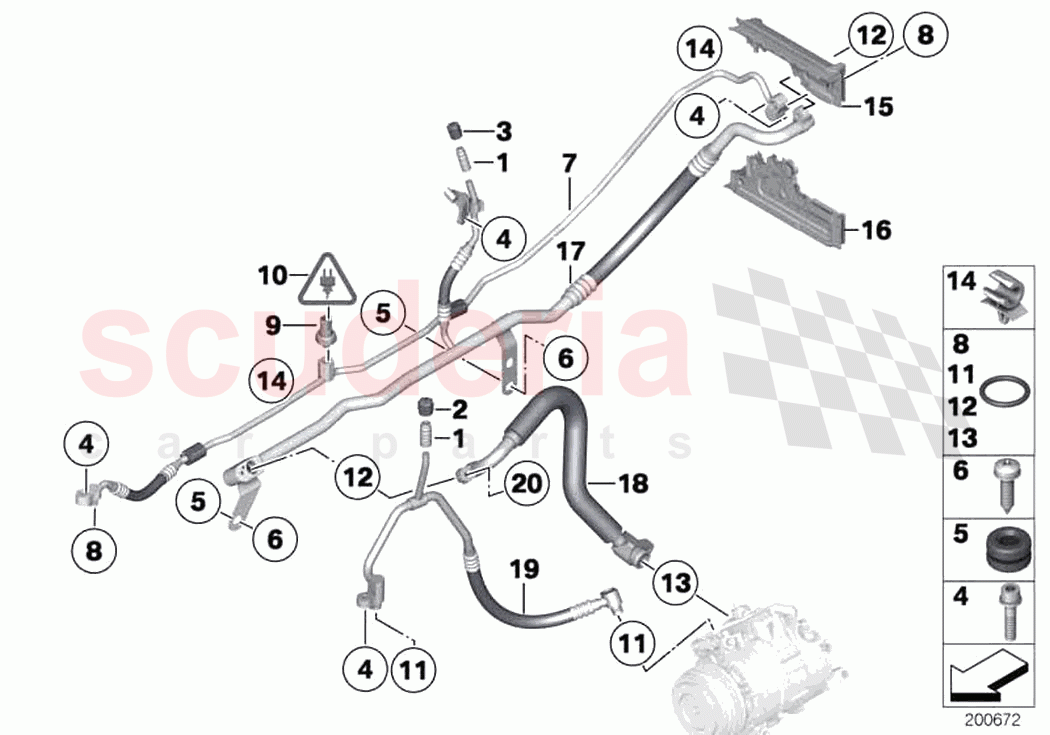

Rolls Royce Wraith RR5(2017-2023) - Coolant lines

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64536922944	Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64538387438	Sealing cap, pressure line	Enquire	To Order
	7149287979	Sealing cap, pressure line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64538387437	Sealing cap, suction line	Enquire	To Order
	7149287978	Sealing cap, suction line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905558	Internal Torx screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64128374551	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149115235	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509168375	Pressure pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64508374959	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539323658	Pressure sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64508375741	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64538375742	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64508363041	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539167145	Pipe clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509127397	Grommet, upper section	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539119426	Grommet bottom part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509168377	Suction pipe	Enquire	To Order
	64539381092	Suction pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509168371	Suction pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509168372	Pressure hose assy	Enquire	To Order
	64539381091	Pressure hose assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905720	Fillister head with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64536922944	Valve	64536922944 Valve R134A/R1234YF	-	2	Enquire
2	64538387438	Sealing cap, pressure line	64538387438 Sealing cap, pressure line R134A	-	1	Enquire
2	7149287979	Sealing cap, pressure line	7149287979 Sealing cap, pressure line R1234YF	-	1	Enquire
3	64538387437	Sealing cap, suction line	64538387437 Sealing cap, suction line R134A	-	1	Enquire
3	7149287978	Sealing cap, suction line	7149287978 Sealing cap, suction line R1234YF	-	1	Enquire
4	7129905558	Internal Torx screw with washer	7129905558 Internal Torx screw with washer M6X25-U1-8.8	-	5	Enquire
5	64128374551	Grommet	64128374551 Grommet	-	3	Enquire
6	7149115235	Fillister head screw with collar	7149115235 Fillister head screw with collar	-	3	Enquire
7	64509168375	Pressure pipe	64509168375 Pressure pipe	-	1	Enquire
8	64508374959	Gasket ring	64508374959 Gasket ring 9,5X2,5	-	2	Enquire
9	64539323658	Pressure sensor	64539323658 Pressure sensor	-	1	Enquire
11	64508375741	Gasket ring	64508375741 Gasket ring D=10,8 MM	-	2	Enquire
12	64538375742	Gasket ring	64538375742 Gasket ring D=13,7 MM	-	2	Enquire
13	64508363041	Gasket ring	64508363041 Gasket ring D=23 MM	-	1	Enquire
14	64539167145	Pipe clip	64539167145 Pipe clip D=10MM	-	1	Enquire
15	64509127397	Grommet, upper section	64509127397 Grommet, upper section	-	1	Enquire
16	64539119426	Grommet bottom part	64539119426 Grommet bottom part	-	1	Enquire
17	64509168377	Suction pipe	64509168377 Suction pipe	-	1	Enquire
17	64539381092	Suction pipe	64539381092 Suction pipe	-	1	Enquire
18	64509168371	Suction pipe	64509168371 Suction pipe	-	1	Enquire
19	64509168372	Pressure hose assy	64509168372 Pressure hose assy from 10.2015	-	1	Enquire
19	64539381091	Pressure hose assy	64539381091 Pressure hose assy to 10.2015	-	1	Enquire
20	7119905720	Fillister head with washer	7119905720 Fillister head with washer M8X30-U1-ZNS3	-	1	Enquire
