Find Your Part

View All

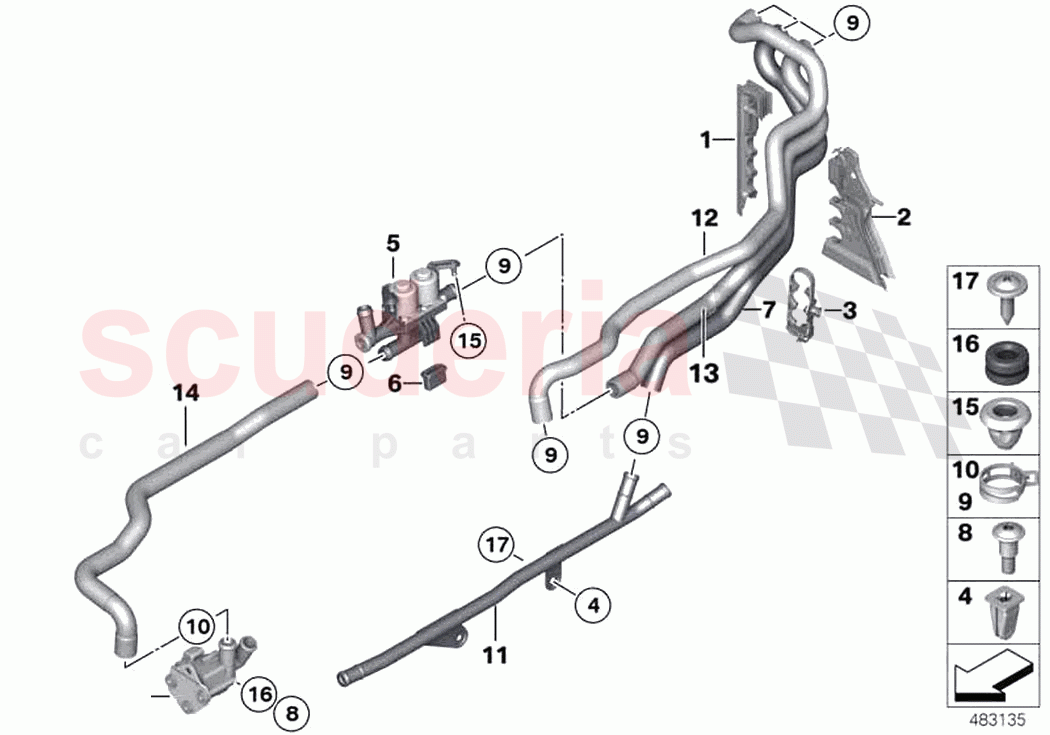

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64119144101	Grommet, upper section	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64119119425	Grommet bottom part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64119178439	Hose clamp, triple	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63171367868	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64118391475	Rubber mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64219208814	Hose return	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149115235	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64213405930	Spring ring shell	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64213405913	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64219208818	Coolant return pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64219208817	Water hose inlet 2.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64219208816	Water hose inlet 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64219208815	Water hose inlet 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64119226852	Rubber mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64128374551	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147146367	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64119230237	Additional water pump	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64119144101	Grommet, upper section	64119144101 Grommet, upper section	-	1	Enquire
2	64119119425	Grommet bottom part	64119119425 Grommet bottom part	-	1	Enquire
3	64119178439	Hose clamp, triple	64119178439 Hose clamp, triple	-	1	Enquire
4	63171367868	Expanding nut	63171367868 Expanding nut ST 4.8 WEISS	-	2	Enquire
5	64539119164	Water valve	64539119164 Water valve from 06.2013	-	1	Enquire
5	64219310349	Water valve	64219310349 Water valve	-	1	Enquire
6	64118391475	Rubber mounting	64118391475 Rubber mounting	-	1	Enquire
7	64219208814	Hose return	64219208814 Hose return	-	1	Enquire
8	7149115235	Fillister head screw with collar	7149115235 Fillister head screw with collar	-	1	Enquire
9	64213405930	Spring ring shell	64213405930 Spring ring shell D=25MM	-	7	Enquire
10	64213405913	Hose clamp	64213405913 Hose clamp D=27MM	-	1	Enquire
11	64219208818	Coolant return pipe	64219208818 Coolant return pipe	-	1	Enquire
12	64219208817	Water hose inlet 2.2	64219208817 Water hose inlet 2.2	-	1	Enquire
13	64219208816	Water hose inlet 2.1	64219208816 Water hose inlet 2.1	-	1	Enquire
14	64219208815	Water hose inlet 1	64219208815 Water hose inlet 1	-	1	Enquire
15	64119226852	Rubber mounting	64119226852 Rubber mounting	-	6	Enquire
16	64128374551	Grommet	64128374551 Grommet	-	2	Enquire
17	7147146367	Fillister head screw	7147146367 Fillister head screw L=18MM	-	2	Enquire
18	64119230237	Additional water pump	64119230237 Additional water pump	-	1	Enquire
