Find Your Part

View All

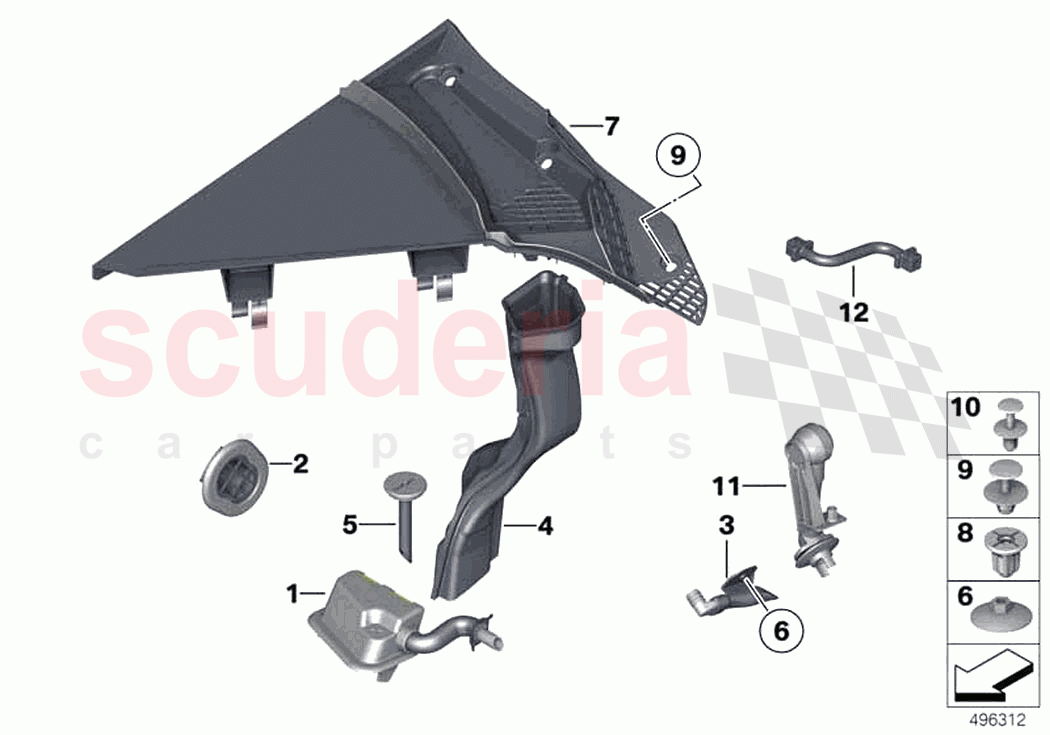

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64316987613	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64319188343	Water drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64319188344	Water drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147261260	Clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138353086	Push-type nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61131382239	Expanding rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51471911992	Expanding rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64119187291	Emergency water drain hose	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64316987609	Grommet, floor, left	64316987609 Grommet, floor, left	-	1	Enquire
1	64316987610	Grommet, floor, right	64316987610 Grommet, floor, right	-	1	Enquire
2	64316987613	Grommet	64316987613 Grommet	-	2	Enquire
3	64119115395	Condensate drain, left	64119115395 Condensate drain, left	-	1	Enquire
3	64119115396	Condensate drain, right	64119115396 Condensate drain, right	-	1	Enquire
4	64319188343	Water drain	64319188343 Water drain	-	1	Enquire
5	64319188344	Water drain	64319188344 Water drain	-	1	Enquire
6	7147261260	Clip nut	7147261260 Clip nut 5X9 D=30 SW10	-	2	Enquire
7	64316987617	Cover	64316987617 Cover	-	1	Enquire
7	64316987618	Cover	64316987618 Cover	-	1	Enquire
8	61138353086	Push-type nut	61138353086 Push-type nut	-	1	Enquire
9	61131382239	Expanding rivet	61131382239 Expanding rivet	-	1	Enquire
10	51471911992	Expanding rivet	51471911992 Expanding rivet D = 8MM	-	3	Enquire
11	64119164383	Condensate drain, left	64119164383 Condensate drain, left	-	1	Enquire
11	64119164384	Condensate drain, right	64119164384 Condensate drain, right	-	1	Enquire
12	64119187291	Emergency water drain hose	64119187291 Emergency water drain hose LL/RL	-	1	Enquire
