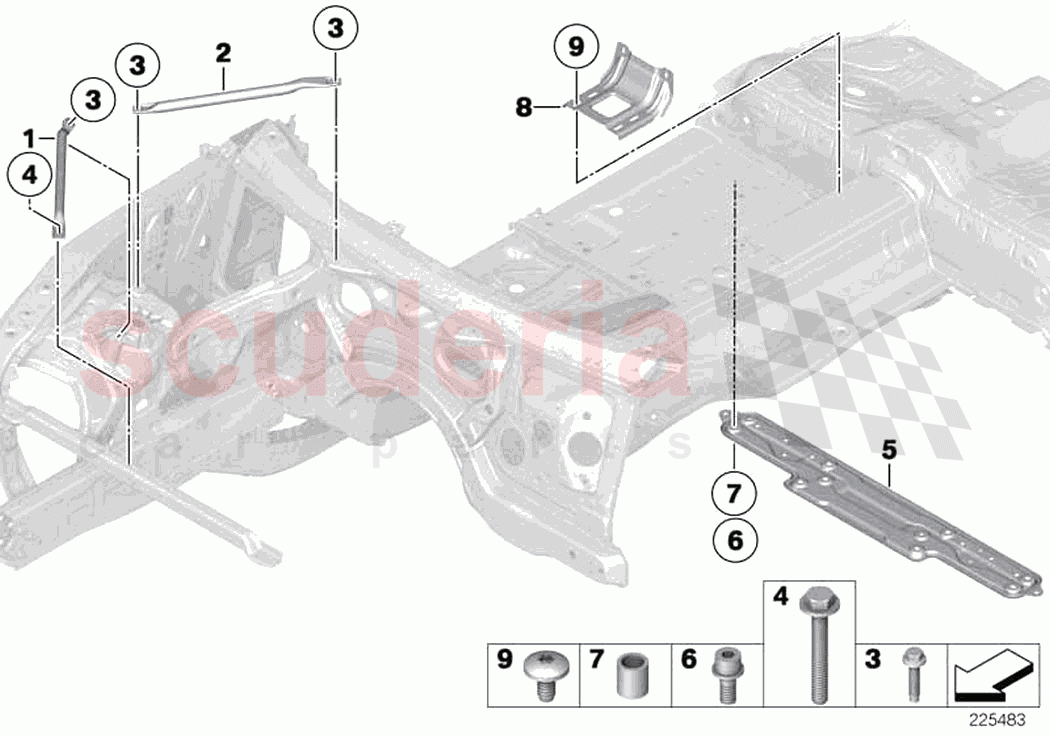

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7147029829	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903947	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617209856	Connecting member, rear tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904835	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007203905	Spacer bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617211020	Support floor panel, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51219130334	Torx-bolt with washer	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51717245617	Cross-brace, front left	51717245617 Cross-brace, front left	-	1	Enquire
1	51717245618	Cross-brace, front right	51717245618 Cross-brace, front right	-	1	Enquire
2	51617201171	Cross-brace, rear left	51617201171 Cross-brace, rear left	-	1	Enquire
2	51617201172	Cross-brace, rear right	51617201172 Cross-brace, rear right	-	1	Enquire
3	7147029829	Hex Bolt	7147029829 Hex Bolt M10X47	-	-	Enquire
4	7119903947	Hex Bolt with washer	7119903947 Hex Bolt with washer M8X75-Z1-ZNS3	-	-	Enquire
5	51617209856	Connecting member, rear tunnel	51617209856 Connecting member, rear tunnel	-	1	Enquire
6	7129904835	ISA screw	7129904835 ISA screw M8X30-U1-8.8	-	10	Enquire
7	41007203905	Spacer bush	41007203905 Spacer bush	-	10	Enquire
8	51617211020	Support floor panel, rear	51617211020 Support floor panel, rear	-	1	Enquire
9	51219130334	Torx-bolt with washer	51219130334 Torx-bolt with washer M6X12	-	6	Enquire
