Door trim panel of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

Rolls Royce Wraith RR5(2017-2023) - Door trim panel

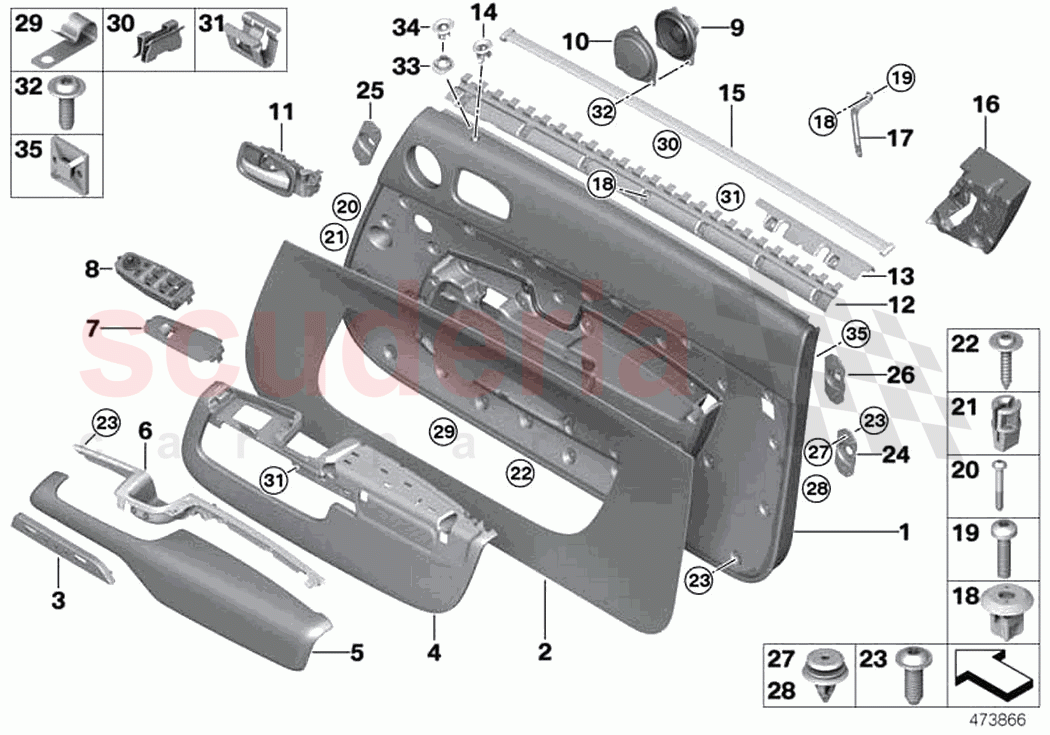

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51417370121	Door trim panel left	Enquire	To Order
	51417370122	Door trim panel right	Enquire	To Order
	51417487219	Door trim panel left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417372513	Door mirror, leather, left	Enquire	To Order
	51417372514	Door mirror, leather, right	Enquire	To Order
	51417401771	Door mirror, wood, left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417362759	Covering left	Enquire	To Order
	51417362760	Covering right	Enquire	To Order
	51417362765	Covering left	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417370123	Map pocket, left	Enquire	To Order
	51417370124	Map pocket, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417370125	Armrest, left	Enquire	To Order
	51417370126	Armrest, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417365623	Chrome strip, left	Enquire	To Order
	51417365624	Chrome strip, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417349029	Trim, power window switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61319313179	Switch, window lifter, driver's side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417220260	Speaker cover, mid-range speaker	Enquire	To Order
	51417463669	Speaker cover, mid-range speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51226956875	Door handle, inside left	Enquire	To Order
	51226956876	Door handle inner right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158057	Attachment strip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417306851	Attachment strip, short, left	Enquire	To Order
	51417306852	Attachment strip, short, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417350748	Cover, locking button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417391803	Chrome strip, left	Enquire	To Order
	51417391804	Chrome strip, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417314317	Crash pad, left	Enquire	To Order
	51417314318	Crash pad, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417263613	Bar left	Enquire	To Order
	51417263614	Bar right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147265039	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147277470	Torx bolt for plastic material	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146979835	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51418267067	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149185673	Oval-head screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149149273	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158059	Retainer, A version	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158060	Retainer, B version	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158061	Retainer, C version	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51418224781	Clip with sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147394952	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51217231100	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149184240	S-clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149172157	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147193038	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417380868	Trim, locking button, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417380867	Trim, locking button, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417471775	Set cable clip	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51417370121	Door trim panel left	51417370121 Door trim panel left COLOUR NEUTRAL	-	1	Enquire
1	51417370122	Door trim panel right	51417370122 Door trim panel right COLOUR NEUTRAL	-	1	Enquire
1	51417487219	Door trim panel left	51417487219 Door trim panel left COLOUR NEUTRAL	-	1	Enquire
1	51417487220	Door trim panel right	51417487220 Door trim panel right COLOUR NEUTRAL	-	1	Enquire
2	51417372513	Door mirror, leather, left	51417372513 Door mirror, leather, left COLOUR NEUTRAL	-	1	Enquire
2	51417372514	Door mirror, leather, right	51417372514 Door mirror, leather, right COLOUR NEUTRAL	-	1	Enquire
2	51417401771	Door mirror, wood, left	51417401771 Door mirror, wood, left	-	1	Enquire
2	51477401772	Door mirror, wood, right	51477401772 Door mirror, wood, right	-	1	Enquire
2	51417327529	Door mirror, wood, left	51417327529 Door mirror, wood, left QUOTE VENEER	-	1	Enquire
2	51417327530	Door mirror, wood, right	51417327530 Door mirror, wood, right QUOTE VENEER	-	1	Enquire
3	51417362759	Covering left	51417362759 Covering left QUOTE VENEER	-	1	Enquire
3	51417362760	Covering right	51417362760 Covering right QUOTE VENEER	-	1	Enquire
3	51417362765	Covering left	51417362765 Covering left QUOTE VENEER	-	1	Enquire
3	51417362766	Covering right	51417362766 Covering right QUOTE VENEER	-	1	Enquire
3	51417462979	Trim, seat function, left	51417462979 Trim, seat function, left TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417462980	Trim, seat function, right	51417462980 Trim, seat function, right TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417462981	Trim, seat function, left	51417462981 Trim, seat function, left TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417462982	Trim, seat function, right	51417462982 Trim, seat function, right TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417362761	Covering left	51417362761 Covering left QUOTE VENEER	-	1	Enquire
3	51417362762	Covering right	51417362762 Covering right QUOTE VENEER	-	1	Enquire
3	51417362763	Covering left	51417362763 Covering left QUOTE VENEER	-	1	Enquire
3	51417362764	Covering right	51417362764 Covering right QUOTE VENEER	-	1	Enquire
3	51417462977	Trim, seat function, left	51417462977 Trim, seat function, left TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417462978	Trim, seat function, right	51417462978 Trim, seat function, right TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417462983	Trim, seat function, left	51417462983 Trim, seat function, left TECHNICAL FIBRE; from 10.2016	-	1	Enquire
3	51417462984	Trim, seat function, right	51417462984 Trim, seat function, right TECHNICAL FIBRE; from 10.2016	-	1	Enquire
4	51417370123	Map pocket, left	51417370123 Map pocket, left COLOUR NEUTRAL	-	1	Enquire
4	51417370124	Map pocket, right	51417370124 Map pocket, right COLOUR NEUTRAL	-	1	Enquire
5	51417370125	Armrest, left	51417370125 Armrest, left COLOUR NEUTRAL	-	1	Enquire
5	51417370126	Armrest, right	51417370126 Armrest, right COLOUR NEUTRAL	-	1	Enquire
6	51417365623	Chrome strip, left	51417365623 Chrome strip, left	-	1	Enquire
6	51417365624	Chrome strip, right	51417365624 Chrome strip, right	-	1	Enquire
7	51417349029	Trim, power window switch	51417349029 Trim, power window switch	-	1	Enquire
8	61319313179	Switch, window lifter, driver's side	61319313179 Switch, window lifter, driver's side	-	1	Enquire
10	51417220260	Speaker cover, mid-range speaker	51417220260 Speaker cover, mid-range speaker	-	2	Enquire
10	51417463669	Speaker cover, mid-range speaker	51417463669 Speaker cover, mid-range speaker STAINLESS STEEL	-	2	Enquire
11	51226956875	Door handle, inside left	51226956875 Door handle, inside left BLUE CHROME	-	1	Enquire
11	51226956876	Door handle inner right	51226956876 Door handle inner right BLUE CHROME	-	1	Enquire
12	51419158057	Attachment strip	51419158057 Attachment strip	-	2	Enquire
13	51417306851	Attachment strip, short, left	51417306851 Attachment strip, short, left	-	1	Enquire
13	51417306852	Attachment strip, short, right	51417306852 Attachment strip, short, right	-	1	Enquire
14	51417350748	Cover, locking button	51417350748 Cover, locking button	-	2	Enquire
15	51417391803	Chrome strip, left	51417391803 Chrome strip, left	-	1	Enquire
15	51417391804	Chrome strip, right	51417391804 Chrome strip, right	-	1	Enquire
16	51417314317	Crash pad, left	51417314317 Crash pad, left	-	1	Enquire
16	51417314318	Crash pad, right	51417314318 Crash pad, right	-	1	Enquire
17	51417263613	Bar left	51417263613 Bar left	-	1	Enquire
17	51417263614	Bar right	51417263614 Bar right	-	1	Enquire
18	7147265039	Expanding nut	7147265039 Expanding nut	-	2	Enquire
19	7147277470	Torx bolt for plastic material	7147277470 Torx bolt for plastic material 5.2X20 ISA	-	2	Enquire
20	7146979835	Fillister head screw with collar	7146979835 Fillister head screw with collar ISA 35X5	-	8	Enquire
21	51418267067	Expanding nut	51418267067 Expanding nut 8X11,7X2	-	8	Enquire
22	7149185673	Oval-head screw with washer	7149185673 Oval-head screw with washer DELTA PT4X20	-	4	Enquire
23	7149149273	Fillister head screw	7149149273 Fillister head screw 5X14	-	-	Enquire
24	51419158059	Retainer, A version	51419158059 Retainer, A version	-	9	Enquire
25	51419158060	Retainer, B version	51419158060 Retainer, B version	-	1	Enquire
26	51419158061	Retainer, C version	51419158061 Retainer, C version	-	1	Enquire
27	51418224781	Clip with sealing ring	51418224781 Clip with sealing ring GRAU	-	3	Enquire
28	7147394952	Clip	7147394952 Clip	-	8	Enquire
29	51217231100	Clip	51217231100 Clip	-	2	Enquire
30	7149184240	S-clamp	7149184240 S-clamp	-	2	Enquire
31	7149172157	Clamp	7149172157 Clamp	-	12	Enquire
32	7147193038	Torx-bolt with washer	7147193038 Torx-bolt with washer ISA M4X12	-	5	Enquire
33	51417380868	Trim, locking button, bottom	51417380868 Trim, locking button, bottom	-	2	Enquire
34	51417380867	Trim, locking button, top	51417380867 Trim, locking button, top	-	2	Enquire
35	51417471775	Set cable clip	51417471775 Set cable clip	-	10	Enquire
