Name: Mounting parts roofliner
Rating: 5.0 (1 reviews)

View All

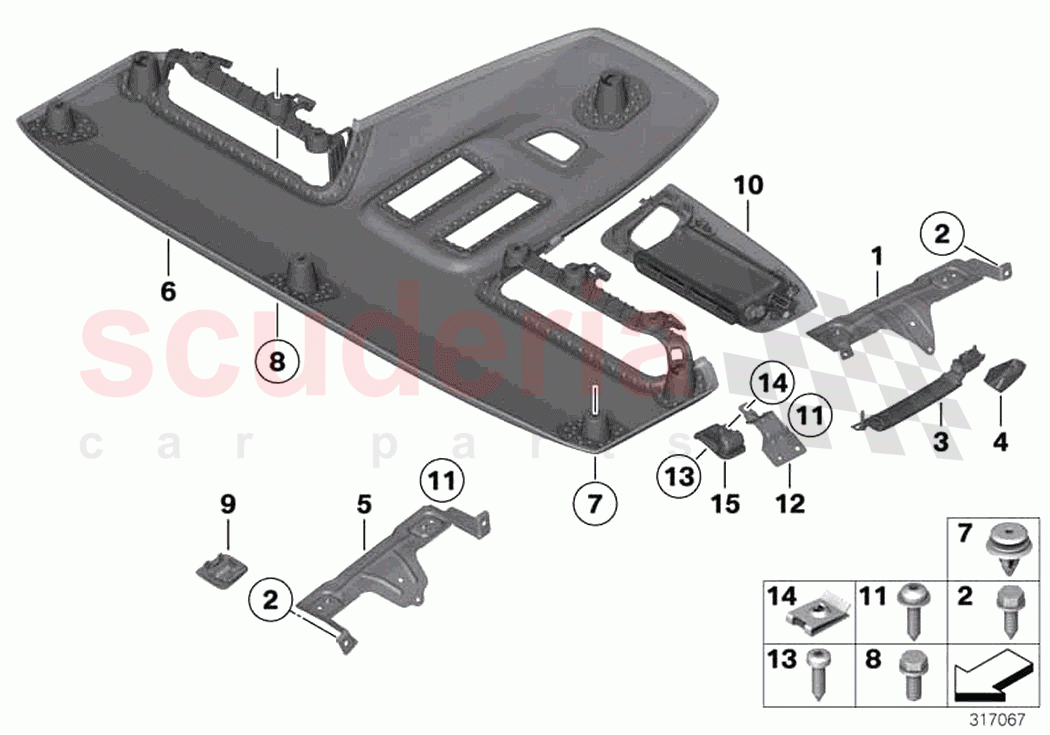

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7149144231	Fillister head self-tapping screw	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	51447221159	Handle covering	$87.09	To Order

Photo	Part No	Description	Price (each)	Stock
	51167301681	Bracket, front left grab handle	$206.42	To Order
	51167301682	Bracket, front right grab handle	$206.42	To Order

Photo	Part No	Description	Price (each)	Stock
	51447366360	Cover, microphone	$38.22	To Order

Photo	Part No	Description	Price (each)	Stock
	51167301683	Bracket clothing hook	$24.14	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905134	Sheet metal screw, silver	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	7143428236	Sheet metal nut, self-locking	$0.60	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	7149144231	Fillister head self-tapping screw	7149144231 Fillister head self-tapping screw ST4,8X20MM	$4.25	2
3	51449224946	Handle	51449224946 Handle COLOUR NEUTRAL	$1,000.00	2
3	51449206652	Handle	51449206652 Handle SEASHELL	$323.09	2
3	51447218499	Handle	51447218499 Handle SCHWARZ	$416.65	2
4	51447221159	Handle covering	51447221159 Handle covering CHROME	$87.09	8
5	51167301681	Bracket, front left grab handle	51167301681 Bracket, front left grab handle	$206.42	1
5	51167301682	Bracket, front right grab handle	51167301682 Bracket, front right grab handle	$206.42	1
9	51447366360	Cover, microphone	51447366360 Cover, microphone CHROM	$38.22	2
12	51167301683	Bracket clothing hook	51167301683 Bracket clothing hook	$24.14	2
13	7119905134	Sheet metal screw, silver	7119905134 Sheet metal screw, silver ST4,8X19	$1.00	2
14	7143428236	Sheet metal nut, self-locking	7143428236 Sheet metal nut, self-locking 3,4	$0.60	2
15	51169150403	Clothing-hook	51169150403 Clothing-hook SEASHELL	$302.03	2
15	51169150390	Clothing-hook	51169150390 Clothing-hook BLACK	$124.94	2
15	51167328976	Coat hook	51167328976 Coat hook COLOUR NEUTRAL	$302.03	2
