SIDE PANEL/TAIL TRIM of Rolls Royce Rolls Royce Phantom Coupe

View All

Rolls Royce Phantom Coupe - SIDE PANEL/TAIL TRIM

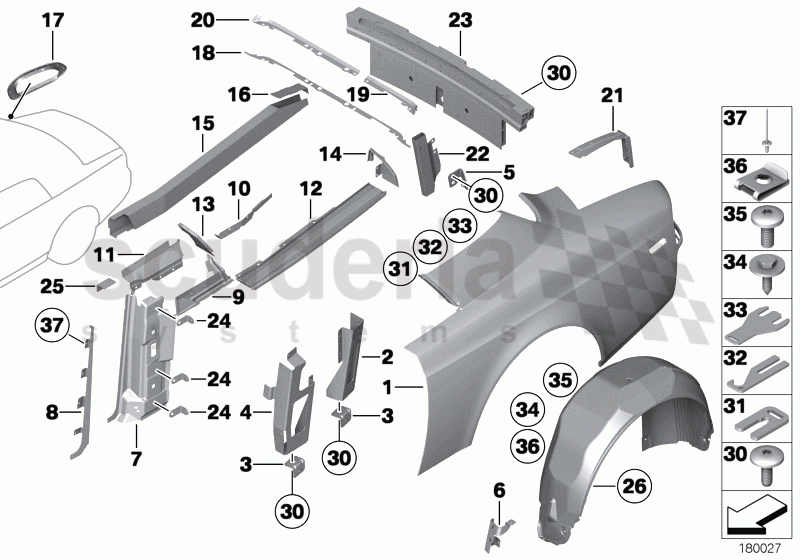

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41317237447	LEFT REAR SIDE PANEL	Enquire	To Order
	41317237448	RIGHT REAR SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357137935	Side panel bracket, rear left 2	Enquire	To Order
	41357137936	Side panel bracket, rear right 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357116276	FENDER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357137933	Side panel bracket, rear left 1	Enquire	To Order
	41357137934	Side panel bracket, rear right 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138239	Holder, side panel, rear left 3	Enquire	To Order
	41217138240	Holder, side panel, rear right 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138233	Side panel bracket, front left 4	Enquire	To Order
	41217138234	Side panel bracket, front right 4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217118567	Column B exterior, left	Enquire	To Order
	41217118568	Column B exterior, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138236	Holder, side panel, B-pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217233169	Connection, B-pillar, top left	Enquire	To Order
	41217233170	Connection, B-pillar, top right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147237439	Mounting bracket, C-pillar, front left	Enquire	To Order
	41147237440	Mounting bracket, C-pillar, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41317237445	Closing plate, channel, left	Enquire	To Order
	41317237446	Closing plate, channel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357236995	Seal, side panel, rear left	Enquire	To Order
	41357236996	Seal, side panel, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357236997	Seal, front, side panel, rear left	Enquire	To Order
	41357236998	Seal, front, side panel, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357236999	Seal, rear, side panel, rear left	Enquire	To Order
	41357237000	Seal, rear, side panel, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117236991	Frame side member, side panel, rear left	Enquire	To Order
	41117236992	Frame side member, side panel,rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217236993	Closing plate, longitudinal member, left	Enquire	To Order
	41217236994	Closing plate, longitudinal member,right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357237472	Mounting frame, filler bowl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41347138205	Shim plate, rear trim panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007138203	LEFT TAIL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357138204	RIGHT TAIL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117137941	Support for frame side member, left	Enquire	To Order
	41117137942	Support for frame side member, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41347138206	TAIL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138236	Holder, side panel, B-pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217201891	Bracket, lateral trim panel, left	Enquire	To Order
	41217201892	Bracket, lateral trim panel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717031963	Cover, wheel housing, rear left	Enquire	To Order
	51717031964	Cover, wheel housing, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order
	7147075867	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138241	Spacer plate	Enquire	To Order
	41217138242	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217079533	Spacer plate	Enquire	To Order
	41217079534	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41127138215	Spacer plate	Enquire	To Order
	41127138216	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147129161	Hex head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146986937	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904227	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107042164	Blind rivet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41317237447	LEFT REAR SIDE PANEL	41317237447 LEFT REAR SIDE PANEL	-	-	Enquire
1	41317237448	RIGHT REAR SIDE PANEL	41317237448 RIGHT REAR SIDE PANEL	-	-	Enquire
2	41357137935	Side panel bracket, rear left 2	41357137935 Side panel bracket, rear left 2	-	-	Enquire
2	41357137936	Side panel bracket, rear right 2	41357137936 Side panel bracket, rear right 2	-	-	Enquire
3	41357116276	FENDER BRACKET	41357116276 FENDER BRACKET	-	-	Enquire
4	41357137933	Side panel bracket, rear left 1	41357137933 Side panel bracket, rear left 1	-	-	Enquire
4	41357137934	Side panel bracket, rear right 1	41357137934 Side panel bracket, rear right 1	-	-	Enquire
5	41217138239	Holder, side panel, rear left 3	41217138239 Holder, side panel, rear left 3	-	-	Enquire
5	41217138240	Holder, side panel, rear right 3	41217138240 Holder, side panel, rear right 3	-	-	Enquire
6	41217138233	Side panel bracket, front left 4	41217138233 Side panel bracket, front left 4	-	-	Enquire
6	41217138234	Side panel bracket, front right 4	41217138234 Side panel bracket, front right 4	-	-	Enquire
7	41217118567	Column B exterior, left	41217118567 Column B exterior, left	-	-	Enquire
7	41217118568	Column B exterior, right	41217118568 Column B exterior, right	-	-	Enquire
8	41217138236	Holder, side panel, B-pillar	41217138236 Holder, side panel, B-pillar	-	-	Enquire
9	41217233169	Connection, B-pillar, top left	41217233169 Connection, B-pillar, top left	-	-	Enquire
9	41217233170	Connection, B-pillar, top right	41217233170 Connection, B-pillar, top right	-	-	Enquire
10	41147237439	Mounting bracket, C-pillar, front left	41147237439 Mounting bracket, C-pillar, front left	-	-	Enquire
10	41147237440	Mounting bracket, C-pillar, front right	41147237440 Mounting bracket, C-pillar, front right	-	-	Enquire
11	41317237445	Closing plate, channel, left	41317237445 Closing plate, channel, left	-	-	Enquire
11	41317237446	Closing plate, channel, right	41317237446 Closing plate, channel, right	-	-	Enquire
12	41357236995	Seal, side panel, rear left	41357236995 Seal, side panel, rear left	-	-	Enquire
12	41357236996	Seal, side panel, rear right	41357236996 Seal, side panel, rear right	-	-	Enquire
13	41357236997	Seal, front, side panel, rear left	41357236997 Seal, front, side panel, rear left	-	-	Enquire
13	41357236998	Seal, front, side panel, rear right	41357236998 Seal, front, side panel, rear right	-	-	Enquire
14	41357236999	Seal, rear, side panel, rear left	41357236999 Seal, rear, side panel, rear left	-	-	Enquire
14	41357237000	Seal, rear, side panel, rear right	41357237000 Seal, rear, side panel, rear right	-	-	Enquire
15	41117236991	Frame side member, side panel, rear left	41117236991 Frame side member, side panel, rear left	-	-	Enquire
15	41117236992	Frame side member, side panel,rear right	41117236992 Frame side member, side panel,rear right	-	-	Enquire
16	41217236993	Closing plate, longitudinal member, left	41217236993 Closing plate, longitudinal member, left	-	-	Enquire
16	41217236994	Closing plate, longitudinal member,right	41217236994 Closing plate, longitudinal member,right	-	-	Enquire
17	41357237472	Mounting frame, filler bowl	41357237472 Mounting frame, filler bowl	-	-	Enquire
18	41347138205	Shim plate, rear trim panel	41347138205 Shim plate, rear trim panel	-	-	Enquire
19	41007138203	LEFT TAIL TRIM	41007138203 LEFT TAIL TRIM	-	-	Enquire
20	41357138204	RIGHT TAIL TRIM	41357138204 RIGHT TAIL TRIM	-	-	Enquire
22	41117137941	Support for frame side member, left	41117137941 Support for frame side member, left	-	-	Enquire
22	41117137942	Support for frame side member, right	41117137942 Support for frame side member, right	-	-	Enquire
23	41347138206	TAIL TRIM	41347138206 TAIL TRIM	-	-	Enquire
24	41217138236	Holder, side panel, B-pillar	41217138236 Holder, side panel, B-pillar	-	-	Enquire
25	41217201891	Bracket, lateral trim panel, left	41217201891 Bracket, lateral trim panel, left	-	-	Enquire
25	41217201892	Bracket, lateral trim panel, right	41217201892 Bracket, lateral trim panel, right	-	-	Enquire
26	51717031963	Cover, wheel housing, rear left	51717031963 Cover, wheel housing, rear left	-	-	Enquire
26	51717031964	Cover, wheel housing, rear right	51717031964 Cover, wheel housing, rear right	-	-	Enquire
30	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	-	Enquire
30	7147075867	Torx bolt	7147075867 Torx bolt ISA M6X22	-	-	Enquire
31	41217138241	Spacer plate	41217138241 Spacer plate 1,5MM	-	-	Enquire
31	41217138242	Spacer plate	41217138242 Spacer plate 0,5MM	-	-	Enquire
32	41217079533	Spacer plate	41217079533 Spacer plate 0,5MM	-	-	Enquire
32	41217079534	Spacer plate	41217079534 Spacer plate 10MM	-	-	Enquire
33	41127138215	Spacer plate	41127138215 Spacer plate 0,5MM	-	-	Enquire
33	41127138216	Spacer plate	41127138216 Spacer plate 10MM	-	-	Enquire
34	7147129161	Hex head screw	7147129161 Hex head screw ST 4.8X18	-	-	Enquire
35	7146986937	Torx bolt	7146986937 Torx bolt ISA M6X15	-	-	Enquire
36	7129904227	Body nut	7129904227 Body nut ST 4,8-8-ZNS	-	-	Enquire
37	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	-	-	Enquire
