Rolls Royce Phantom Coupe - ENGINE HOOD MECHANISM

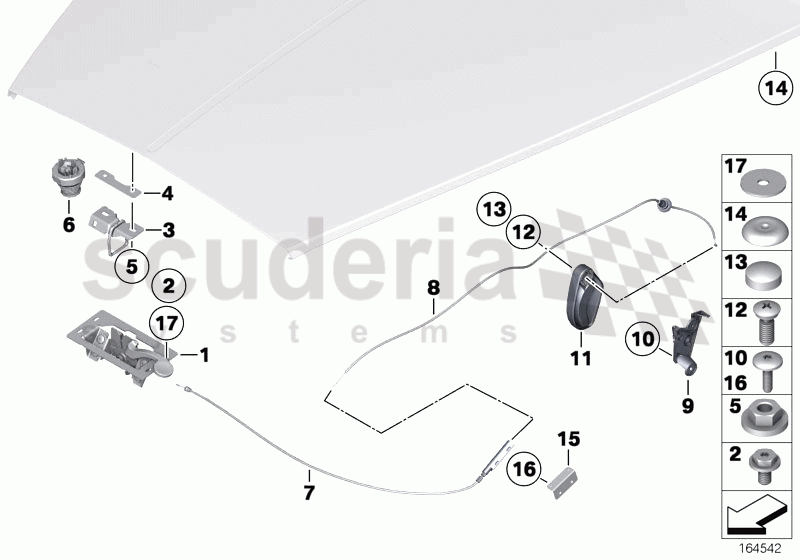

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51237175314	Bonnet lock with retaining hook	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903995	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237165534	Catch bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237188388	Separating shim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146953538	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237003115	ejector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237165531	Bowden cable, front	Enquire	To Order
	51237199368	Bowden cable, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237197493	Bowden cable, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237065119	Holder, bonnet actuator	Enquire	To Order
	51437065118	Bracket, hood catch end support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905261	Torx-countersunk screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51437059119	Lever f engine hood mechanism	Enquire	To Order
	51437059120	Lever f engine hood mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959892	Phillips head screw for plastic material	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51181823474	Covering cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147140850	Blind plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237067922	Bracket, Bowden cable connection, bonnet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217209752	Gasket	Enquire	To Order
	41217209753	Gasket	Enquire	To Order
	51237209647	Gasket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51237175314	Bonnet lock with retaining hook	51237175314 Bonnet lock with retaining hook	-	-	Enquire
2	7119903995	Hex Bolt	7119903995 Hex Bolt M6X20-U2-8.8	-	-	Enquire
3	51237165534	Catch bracket	51237165534 Catch bracket	-	-	Enquire
4	51237188388	Separating shim	51237188388 Separating shim	-	-	Enquire
5	7146953538	Hex nut with plate	7146953538 Hex nut with plate M6	-	-	Enquire
6	51237003115	ejector	51237003115 ejector	-	-	Enquire
7	51237165531	Bowden cable, front	51237165531 Bowden cable, front	-	-	Enquire
7	51237199368	Bowden cable, front	51237199368 Bowden cable, front	-	-	Enquire
8	51237197493	Bowden cable, rear	51237197493 Bowden cable, rear	-	-	Enquire
9	51237065119	Holder, bonnet actuator	51237065119 Holder, bonnet actuator	-	-	Enquire
9	51437065118	Bracket, hood catch end support	51437065118 Bracket, hood catch end support	-	-	Enquire
10	7129905261	Torx-countersunk screw	7129905261 Torx-countersunk screw M6X16 MK ZNS3	-	-	Enquire
11	51437059119	Lever f engine hood mechanism	51437059119 Lever f engine hood mechanism	-	-	Enquire
11	51437059120	Lever f engine hood mechanism	51437059120 Lever f engine hood mechanism	-	-	Enquire
12	7146959892	Phillips head screw for plastic material	7146959892 Phillips head screw for plastic material TS 5X13	-	-	Enquire
13	51181823474	Covering cap	51181823474 Covering cap SCHWARZ	-	-	Enquire
14	7147140850	Blind plug	7147140850 Blind plug D=20MM	-	-	Enquire
15	51237067922	Bracket, Bowden cable connection, bonnet	51237067922 Bracket, Bowden cable connection, bonnet	-	-	Enquire
16	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	-	Enquire
17	41217209752	Gasket	41217209752 Gasket 8X18MM	-	-	Enquire
17	41217209753	Gasket	41217209753 Gasket 8X16MM	-	-	Enquire
17	51237209647	Gasket	51237209647 Gasket 6X15MM	-	-	Enquire
