FRONT BODY BRACKET of Rolls Royce Rolls Royce Phantom Coupe

View All

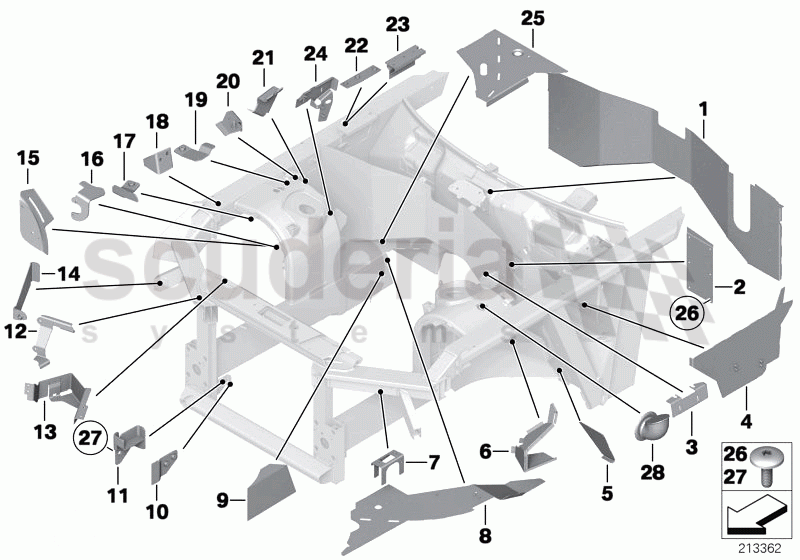

Rolls Royce Phantom Coupe - FRONT BODY BRACKET

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41137116922	Partition, units compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717072500	Cover, bulkhead	Enquire	To Order
	51717072501	Cover, bulkhead	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41137116188	WATER VALVE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117079541	Reinforcement, bulkhead left	Enquire	To Order
	41117079542	Reinforcement, bulkhead right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147116201	LEFT SUPPORTING STRUT REINFORCEMENT	Enquire	To Order
	41147116202	RIGHT SUPPORTING STRUT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217079561	Side panel closing plate, left	Enquire	To Order
	41217079562	Side panel closing plate, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41137079551	Bracket, hydraulic unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117079543	Support, engine carrier bottom left	Enquire	To Order
	41117079544	Support, engine carrier bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117116167	Support, engine carrier front left	Enquire	To Order
	41117116168	Support, engine carrier front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117195373	Support f radiator bottom left	Enquire	To Order
	41117195374	Support f radiator bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717072503	Bracket, radiator bottom left	Enquire	To Order
	51717072504	Bracket, radiator bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007079552	Bracket, washer fluid reservoir, inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007118558	Filler pipe bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007079553	Bracket, washer fluid reservoir, outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117079549	Holder, bearing block, top left	Enquire	To Order
	41117079550	Holder, bearing block, top right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147116163	Bracket, level sensor, left	Enquire	To Order
	41147116164	Bracket, level sensor, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357079555	Side panel bracket, front left 1	Enquire	To Order
	41357079556	Side panel bracket, front right 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007137855	Take-up, V-strut, left	Enquire	To Order
	41007137856	Take-up, V-strut, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357079557	Side panel bracket, front left 2	Enquire	To Order
	41357079558	Side panel bracket, front right 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41137195375	Bracket for intake silencer, left	Enquire	To Order
	41137195376	Bracket for intake silencer, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41137079559	Microfilter bracket, left	Enquire	To Order
	41137195378	Microfilter bracket, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117079545	Threaded plate, bonnet hinge, left.	Enquire	To Order
	41117079546	Threaded plate, bonnet hinge, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117079547	Holder, hinge, bonnet, left	Enquire	To Order
	41117079548	Holder, hinge, bonnet, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41137195309	Bracket, B+ lead	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117116171	LEFT ENGINE SUPPORT REINFORCEMENT	Enquire	To Order
	41117116172	Reinforcement, engine support right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64318370067	WATER OUTLET VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41137116922	Partition, units compartment	41137116922 Partition, units compartment	-	-	Enquire
2	51717072500	Cover, bulkhead	51717072500 Cover, bulkhead	-	-	Enquire
2	51717072501	Cover, bulkhead	51717072501 Cover, bulkhead	-	-	Enquire
3	41137116188	WATER VALVE BRACKET	41137116188 WATER VALVE BRACKET	-	-	Enquire
4	41117079541	Reinforcement, bulkhead left	41117079541 Reinforcement, bulkhead left	-	-	Enquire
4	41117079542	Reinforcement, bulkhead right	41117079542 Reinforcement, bulkhead right	-	-	Enquire
5	41147116201	LEFT SUPPORTING STRUT REINFORCEMENT	41147116201 LEFT SUPPORTING STRUT REINFORCEMENT	-	-	Enquire
5	41147116202	RIGHT SUPPORTING STRUT REINFORCEMENT	41147116202 RIGHT SUPPORTING STRUT REINFORCEMENT	-	-	Enquire
6	41217079561	Side panel closing plate, left	41217079561 Side panel closing plate, left	-	-	Enquire
6	41217079562	Side panel closing plate, right	41217079562 Side panel closing plate, right	-	-	Enquire
7	41137079551	Bracket, hydraulic unit	41137079551 Bracket, hydraulic unit	-	-	Enquire
8	41117079543	Support, engine carrier bottom left	41117079543 Support, engine carrier bottom left	-	-	Enquire
8	41117079544	Support, engine carrier bottom right	41117079544 Support, engine carrier bottom right	-	-	Enquire
9	41117116167	Support, engine carrier front left	41117116167 Support, engine carrier front left	-	-	Enquire
9	41117116168	Support, engine carrier front right	41117116168 Support, engine carrier front right	-	-	Enquire
10	41117195373	Support f radiator bottom left	41117195373 Support f radiator bottom left	-	-	Enquire
10	41117195374	Support f radiator bottom right	41117195374 Support f radiator bottom right	-	-	Enquire
11	51717072503	Bracket, radiator bottom left	51717072503 Bracket, radiator bottom left	-	-	Enquire
11	51717072504	Bracket, radiator bottom right	51717072504 Bracket, radiator bottom right	-	-	Enquire
12	41007079552	Bracket, washer fluid reservoir, inner	41007079552 Bracket, washer fluid reservoir, inner	-	-	Enquire
13	41007118558	Filler pipe bracket	41007118558 Filler pipe bracket	-	-	Enquire
14	41007079553	Bracket, washer fluid reservoir, outer	41007079553 Bracket, washer fluid reservoir, outer	-	-	Enquire
15	41117079549	Holder, bearing block, top left	41117079549 Holder, bearing block, top left	-	-	Enquire
15	41117079550	Holder, bearing block, top right	41117079550 Holder, bearing block, top right	-	-	Enquire
16	41147116163	Bracket, level sensor, left	41147116163 Bracket, level sensor, left	-	-	Enquire
16	41147116164	Bracket, level sensor, right	41147116164 Bracket, level sensor, right	-	-	Enquire
17	41357079555	Side panel bracket, front left 1	41357079555 Side panel bracket, front left 1	-	-	Enquire
17	41357079556	Side panel bracket, front right 1	41357079556 Side panel bracket, front right 1	-	-	Enquire
18	41007137855	Take-up, V-strut, left	41007137855 Take-up, V-strut, left	-	-	Enquire
18	41007137856	Take-up, V-strut, right	41007137856 Take-up, V-strut, right	-	-	Enquire
19	41357079557	Side panel bracket, front left 2	41357079557 Side panel bracket, front left 2	-	-	Enquire
19	41357079558	Side panel bracket, front right 2	41357079558 Side panel bracket, front right 2	-	-	Enquire
20	41137195375	Bracket for intake silencer, left	41137195375 Bracket for intake silencer, left	-	-	Enquire
20	41137195376	Bracket for intake silencer, right	41137195376 Bracket for intake silencer, right	-	-	Enquire
21	41137079559	Microfilter bracket, left	41137079559 Microfilter bracket, left	-	-	Enquire
21	41137195378	Microfilter bracket, right	41137195378 Microfilter bracket, right	-	-	Enquire
22	41117079545	Threaded plate, bonnet hinge, left.	41117079545 Threaded plate, bonnet hinge, left.	-	-	Enquire
22	41117079546	Threaded plate, bonnet hinge, right	41117079546 Threaded plate, bonnet hinge, right	-	-	Enquire
23	41117079547	Holder, hinge, bonnet, left	41117079547 Holder, hinge, bonnet, left	-	-	Enquire
23	41117079548	Holder, hinge, bonnet, right	41117079548 Holder, hinge, bonnet, right	-	-	Enquire
24	41137195309	Bracket, B+ lead	41137195309 Bracket, B+ lead	-	-	Enquire
25	41117116171	LEFT ENGINE SUPPORT REINFORCEMENT	41117116171 LEFT ENGINE SUPPORT REINFORCEMENT	-	-	Enquire
25	41117116172	Reinforcement, engine support right	41117116172 Reinforcement, engine support right	-	-	Enquire
26	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	-	Enquire
27	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	-	Enquire
28	64318370067	WATER OUTLET VALVE	64318370067 WATER OUTLET VALVE	-	-	Enquire
