Rolls Royce Ghost Series I (2009-2014) - UPPER TIMING CASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11147578945 Timing case cover, top Enquire To Order
Photo Part No Description Price (each) Stock
11147578949 Gasket Steel Enquire To Order
Photo Part No Description Price (each) Stock
11147578947 Timing case cover, top Enquire To Order
Photo Part No Description Price (each) Stock
11147578949 Gasket Steel Enquire To Order
Photo Part No Description Price (each) Stock
7129905571 ASA-Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7129905568 Torx bolt Enquire To Order
Photo Part No Description Price (each) Stock
11147584157 Stud bolt Enquire To Order
Photo Part No Description Price (each) Stock
11368605123 Solenoid valve (SOLV) Enquire To Order
Photo Part No Description Price (each) Stock
11367548320 O-ring Enquire To Order
Photo Part No Description Price (each) Stock
11367561852 O-ring Enquire To Order
Photo Part No Description Price (each) Stock
7119904524 Hex Bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
7129905598 ASA-Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7129905516 Torx-bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
61133333333 Plug, see part info in 'ZI' column Enquire To Order
View All

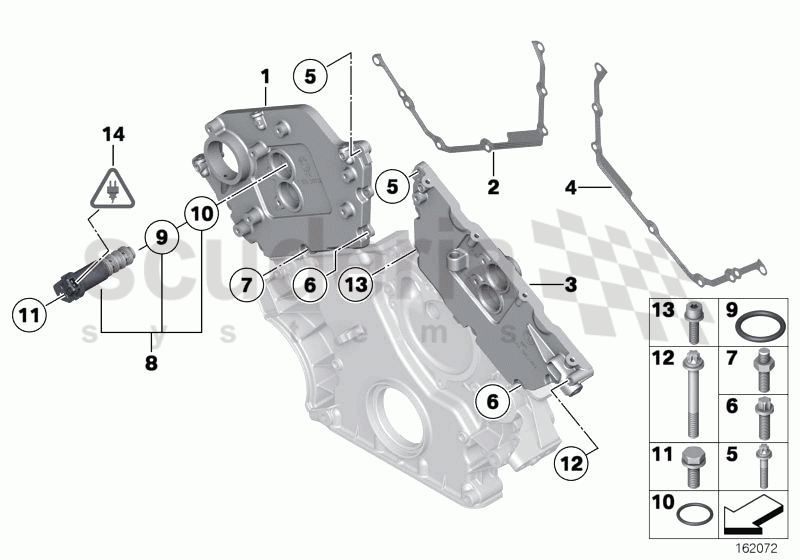

UPPER TIMING CASE of Rolls Royce Rolls Royce Ghost Series I (2009-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 11147578945
Timing case cover, top 		- - Enquire
2 11147578949
Gasket Steel 		- - Enquire
3 11147578947
Timing case cover, top 		- - Enquire
4 11147578949
Gasket Steel 		- - Enquire
5 7129905571
ASA-Bolt
M6X30-U1 		- - Enquire
6 7129905568
Torx bolt
M6X20-ZNNIV SI 		- - Enquire
7 11147584157
Stud bolt
M6/M5 		- - Enquire
8 11368605123
Solenoid valve (SOLV) 		- - Enquire
9 11367548320
O-ring
24X4,5 		- - Enquire
10 11367561852
O-ring
20X1,5 		- - Enquire
11 7119904524
Hex Bolt with washer
M6X16-U1-8.8 		- - Enquire
12 7129905598
ASA-Bolt
M6X50-U1 		- - Enquire
13 7129905516
Torx-bolt with washer
M6X20-U1-8.8 		- - Enquire
14 61133333333
Plug, see part info in 'ZI' column 		- - Enquire
