Find Your Part

View All

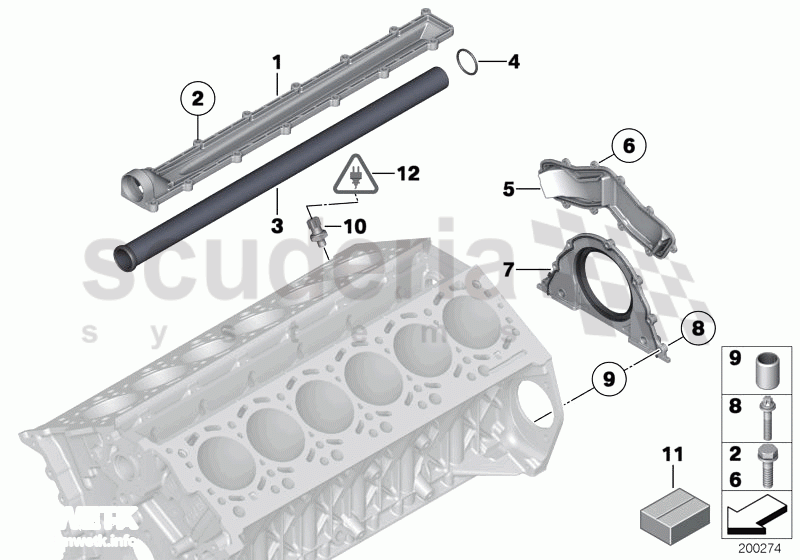

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11147506384	cap with seal	$99.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7119905400	Hex Bolt with washer	$1.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11147500355	Coolant Pipe, Flow	$113.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11531710048	O-ring	$2.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11147505235	Cover, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905399	Hex Bolt with washer	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	11147583221	Cap with shaft seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905571	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11121715657	Dowel	$2.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12617568480	OIL PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11112162453	Gasket Set Engine Block Asbesto Free	$482.42	To Order

Photo	Part No	Description	Price (each)	Stock
	61133333333	Plug, see part info in 'ZI' column	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	11147506384	cap with seal IN STOCK	11147506384 cap with seal IN STOCK	$99.18	-
2	7119905400	Hex Bolt with washer IN STOCK	7119905400 Hex Bolt with washer M6X25-ZNNIV SI IN STOCK	$1.14	-
3	11147500355	Coolant Pipe, Flow IN STOCK	11147500355 Coolant Pipe, Flow IN STOCK	$113.47	-
4	11531710048	O-ring IN STOCK	11531710048 O-ring 34,2X4,0MM IN STOCK	$2.48	-
5	11147505235	Cover, rear	11147505235 Cover, rear	-	-	Enquire
6	7119905399	Hex Bolt with washer	7119905399 Hex Bolt with washer M6X18-U1	$0.59	-
7	11147583221	Cap with shaft seal	11147583221 Cap with shaft seal	-	-	Enquire
8	7129905571	ASA-Bolt	7129905571 ASA-Bolt M6X30-U1	-	-	Enquire
9	11121715657	Dowel IN STOCK	11121715657 Dowel D=8,3MM IN STOCK	$2.28	-
10	12617568480	OIL PRESSURE SWITCH	12617568480 OIL PRESSURE SWITCH M12X1,5	-	-	Enquire
11	11112162453	Gasket Set Engine Block Asbesto Free	11112162453 Gasket Set Engine Block Asbesto Free	$482.42	-
12	61133333333	Plug, see part info in 'ZI' column	61133333333 Plug, see part info in 'ZI' column	-	-	Enquire
