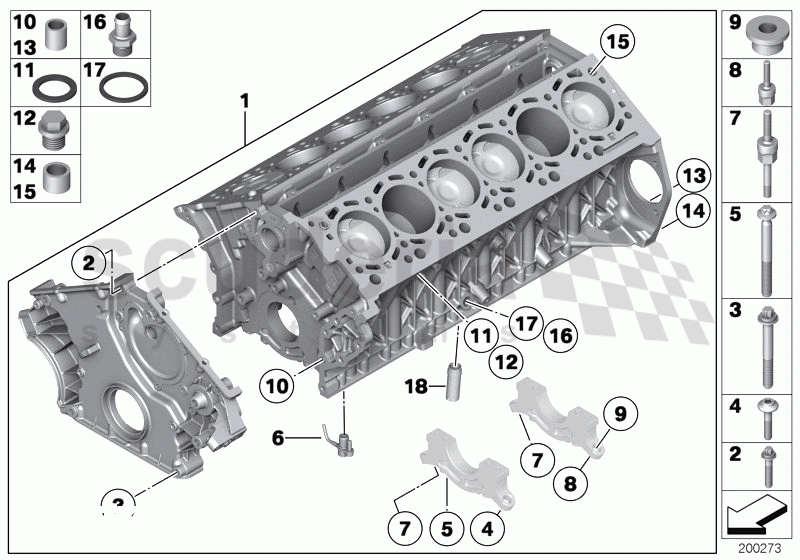

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11112158071	Engine block with piston	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904795	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905712	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11417508149	Collar screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117574347	Collar screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11427584759	Oil Spraying Nozzle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117568242	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117568243	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11111710132	Spacer bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11121726238	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119963225	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904539	Screw plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11121715657	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117524470	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11111743118	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117584776	Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119963300	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117587530	Oil pipe	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	11112158071	Engine block with piston	11112158071 Engine block with piston	-	-	Enquire
2	7129904795	ASA-Bolt	7129904795 ASA-Bolt M8X40-U1-8.8	-	-	Enquire
3	7129905712	ASA-Bolt	7129905712 ASA-Bolt M8X65-U1	-	-	Enquire
4	11417508149	Collar screw	11417508149 Collar screw M8X37	-	-	Enquire
5	11117574347	Collar screw	11117574347 Collar screw M11X102	-	-	Enquire
6	11427584759	Oil Spraying Nozzle	11427584759 Oil Spraying Nozzle	-	-	Enquire
7	11117568242	Spacer	11117568242 Spacer	-	-	Enquire
8	11117568243	Screw	11117568243 Screw	-	-	Enquire
9	11111710132	Spacer bush	11111710132 Spacer bush	-	-	Enquire
10	11121726238	Dowel	11121726238 Dowel D=10,5MM	-	-	Enquire
11	7119963225	Gasket ring	7119963225 Gasket ring A14X20-AL	-	-	Enquire
12	7119904539	Screw plug	7119904539 Screw plug M14X1,5-ZNNIV	-	-	Enquire
13	11121715657	Dowel	11121715657 Dowel D=8,3MM	-	-	Enquire
14	11117524470	Dowel	11117524470 Dowel D=14,5MM	-	-	Enquire
15	11111743118	Dowel	11111743118 Dowel D=14,5MM	-	-	Enquire
16	11117584776	Connector	11117584776 Connector	-	-	Enquire
17	7119963300	Gasket ring	7119963300 Gasket ring A18X22	-	-	Enquire
18	11117587530	Oil pipe	11117587530 Oil pipe	-	-	Enquire
