21 - ENGINE - 21.9 - POWER UNIT ASSEMBLY & CYLINDER BLOCK HARDWARE of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 21 - ENGINE - 21.9 - POWER UNIT ASSEMBLY & CYLINDER BLOCK HARDWARE

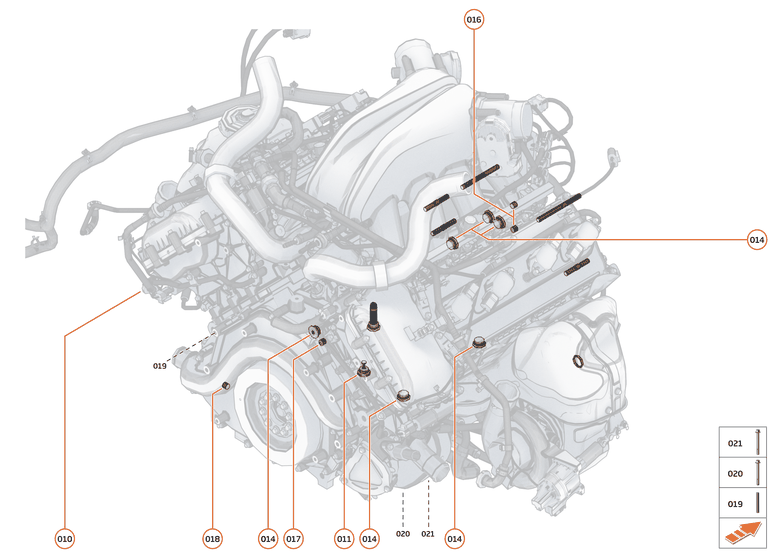

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11F1262CP	STUD-M8X1.25X41 - ENGINE	11F1262CP STUD-M8X1.25X41 - ENGINE Row ID: ID__11F1262CP_ContPgHS;	-	12	Enquire
000	11F2471CP	PLUGAVDEL 6	11F2471CP PLUGAVDEL 6 Row ID: ID__11F2471CP_ContPgHS;	-	4	Enquire
000	11F2473CP	PLUGAVDEL 10	11F2473CP PLUGAVDEL 10 Row ID: ID__11F2473CP_ContPgHS;	-	1	Enquire
000	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS;	-	1	Enquire
000	00RB035	Cable Tie - Female - Dia 8-20	00RB035 Cable Tie - Female - Dia 8-20 Row ID: ID__00RB035_ContPgHS;	-	1	Enquire
010	15FA327CP	ENGINE - V8 4.0L PP1 AC	15FA327CP ENGINE - V8 4.0L PP1 AC Row ID: ID__15FA327CP_ContPgHS;	-	1	Enquire
011	11F1942CP	WASHER - LADDERFRAME - M18 - COPPER	11F1942CP WASHER - LADDERFRAME - M18 - COPPER Row ID: ID__11F1942CP_ContPgHS;	-	1	Enquire
014	11F2209CP	CRANK TIMING PLUG - ENGINE - INC. O-RING	11F2209CP CRANK TIMING PLUG - ENGINE - INC. O-RING Row ID: ID__11F2209CP_ContPgHS;	-	1	Enquire
016	11F2577CP	GRUB SCREW - OIL CHANNEL - ENGINE	11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE Row ID: ID__11F2577CP_ContPgHS;	-	1	Enquire
017	11F2199CP	BEARING - ENGINE STARTER MOTOR	11F2199CP BEARING - ENGINE STARTER MOTOR Row ID: ID__11F2199CP_ContPgHS;	-	1	Enquire
018	11F2203CP	PLUG- AVDEL- DIA 8MM	11F2203CP PLUG- AVDEL- DIA 8MM Row ID: ID__11F2203CP_ContPgHS;	-	1	Enquire
019	14F0453CP	STUD - TRANSMISSION - 108MM	14F0453CP STUD - TRANSMISSION - 108MM Row ID: ID__14F0453CP_ContPgHS;	-	1	Enquire
020	11F1917CP	BOLT- LADDERFRAME- M12X115	11F1917CP BOLT- LADDERFRAME- M12X115 Row ID: ID__11F1917CP_ContPgHS;	-	10	Enquire
021	11F1918CP	BOLT- LADDERFRAME- M10X110	11F1918CP BOLT- LADDERFRAME- M10X110 Row ID: ID__11F1918CP_ContPgHS;	-	10	Enquire
