21 - ENGINE - 21.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 21 - ENGINE - 21.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

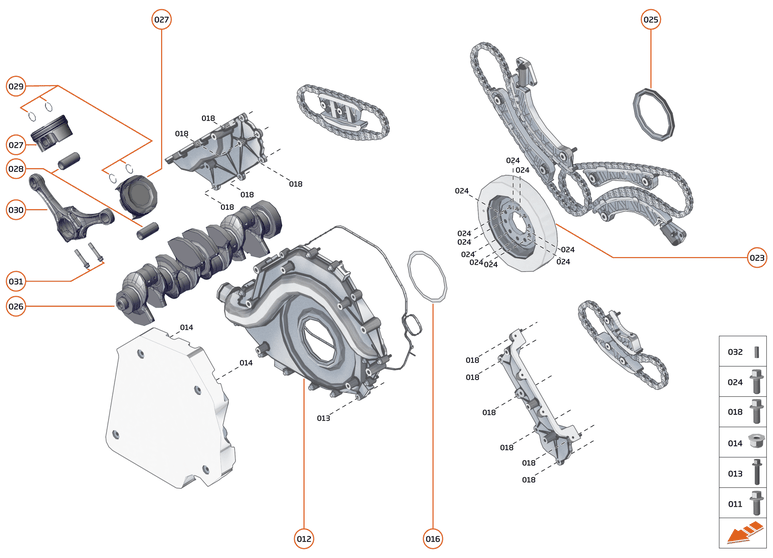

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
012	14F0851CP	FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL	14F0851CP FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL Row ID: ID__14F0851CP_ContPgHS;	-	1	Enquire
013	11F1776CP	BOLT - M6X30 - HEX	11F1776CP BOLT - M6X30 - HEX Row ID: ID__11F1776CP_ContPgHS;	-	14	Enquire
013	11F0824CP	BOLT - M6X30 - ENGINE	11F0824CP BOLT - M6X30 - ENGINE Row ID: ID__11F0824CP_ContPgHS;	-	4	Enquire
014	11F1904CP		11F1904CP NUT - M6; Row ID: ID__11F1904CP_ContPgHS;	-	2	Enquire
016	11F2579CP	FRONT CRANK SEAL IN STOCK	11F2579CP FRONT CRANK SEAL Row ID: ID__11F2579CP_ContPgHS; IN STOCK	$101.53	1
018	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID__11F1793CP_ContPgHS;	-	16	Enquire
024	11F1920CP	BOLT - M16X90 - TVD	11F1920CP BOLT - M16X90 - TVD Row ID: ID__11F1920CP_ContPgHS;	-	1	Enquire
025	11F2344CP	SEAL - ENGINE CRANK - REAR	11F2344CP SEAL - ENGINE CRANK - REAR Row ID: ID__11F2344CP_ContPgHS;	-	1	Enquire
026	14F0095CP	ASSY - CRANKSHAFT	14F0095CP ASSY - CRANKSHAFT Row ID: ID__14F0095CP_ContPgHS;	-	1	Enquire
027	15FA108CP	PISTON ASSY	15FA108CP PISTON ASSY Row ID: ID__15FA108CP_ContPgHS;	-	8	Enquire
028	15FA349CP	PIN GUDGEON DLC	15FA349CP PIN GUDGEON DLC Row ID: ID__15FA349CP_ContPgHS;	-	1	Enquire
029	14F0524CP	CIRCLIP PISTON	14F0524CP CIRCLIP PISTON Row ID: ID__14F0524CP_ContPgHS;	-	2	Enquire
030	14FA158CP	CONNECTING ROD ASSY	14FA158CP CONNECTING ROD ASSY Row ID: ID__14FA158CP_ContPgHS;	-	8	Enquire
031	14FA161CP	BOLT - CONNECTING ROD	14FA161CP BOLT - CONNECTING ROD Row ID: ID__14FA161CP_ContPgHS;	-	2	Enquire
032	11F1914CP	DOWEL- PIN- 6 X 14 LG	11F1914CP DOWEL- PIN- 6 X 14 LG Row ID: ID__11F1914CP_ContPgHS;	-	4	Enquire
