21 - Engine - 21.11 - Engine Water Pump & Water Circuit

McLaren Ultimate Series McLaren Elva

Find Your Part

McLaren Ultimate Series McLaren Elva - 21 - ENGINE - 21.11 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

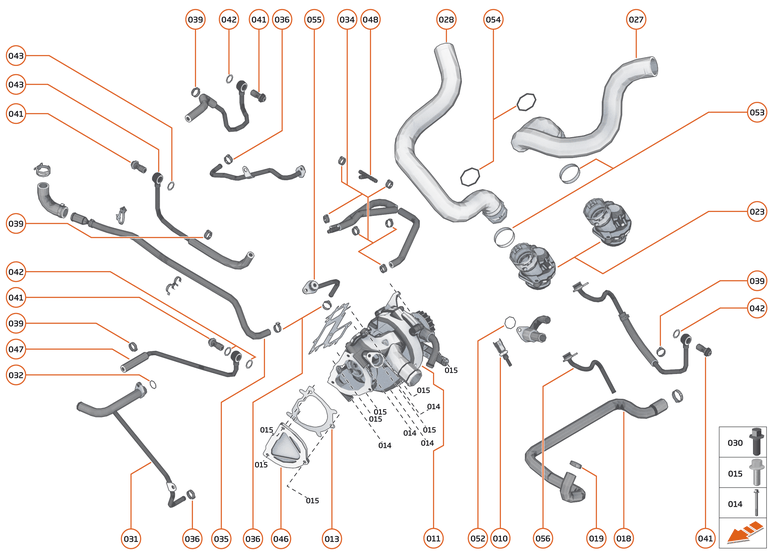

21 - ENGINE - 21.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F2412CP
P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE
Row ID: ID__11F2412CP_ContPgHS; 		- 2 Enquire
010 11F2418CP
SENSOR - HEAD TEMPERATURE
Row ID: ID__11F2418CP_ContPgHS; 		- 1 Enquire
011 14FA182CP
WATER PUMP
Row ID: ID__14FA182CP_ContPgHS;
IN STOCK 		$1,611.30 1
013 11F2434CP
GASKET SERVICE COVER WATER PUMP
Row ID: ID__11F2434CP_ContPgHS;
IN STOCK 		$15.21 1
014 11FA031CP
BOLT - M6X80 - HEX - 02482939-1
Row ID: ID__11FA031CP_ContPgHS; 		- 4 Enquire
015 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID__11F1793CP_ContPgHS; 		- 16 Enquire
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER
Row ID: ID__13F0866CP_ContPgHS; 		- 1 Enquire
019 11F1859CP
OETIKER CLAMP - 24.1MM
Row ID: ID__11F1859CP_ContPgHS; 		- 1 Enquire
022 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10
Row ID: ID__11F1791CP_ContPgHS; 		- 2 Enquire
023 13FA050CP
THERMOSTAT
Row ID: ID__13FA050CP_ContPgHS;
IN STOCK 		$243.70 2
027 15FA067CP
TOP HOSE - ENGINE RADIATOR - LH
Row ID: ID__15FA067CP_ContPgHS; 		- 1 Enquire
028 15FA068CP
TOP HOSE - ENGINE RADIATOR - RH
Row ID: ID__15FA068CP_ContPgHS; 		- 1 Enquire
030 11F1782CP
BOLT - M6X10 - HEX
Row ID: ID__11F1782CP_ContPgHS; 		- 2 Enquire
031 15FA158CP
HEATER FEED PIPE - ENGINE
Row ID: ID__15FA158CP_ContPgHS; 		- 1 Enquire
032 11F1954CP
O-RING - 16-0X2-0
Row ID: ID__11F1954CP_ContPgHS; 		- 1 Enquire
034 11F1863CP
OETIKER CLIP - 14.1-16.6
Row ID: ID__11F1863CP_ContPgHS; 		- 1 Enquire
035 15FA070CP
ASSY - HOSE - COOLANT DEGAS - ENGINE
Row ID: ID__15FA070CP_ContPgHS; 		- 1 Enquire
036 00RB093
OETIKER CLIP - 16.6
Row ID: ID__00RB093_ContPgHS; 		- 1 Enquire
039 14F0371CP
CLAMP OETIKER 00076445 16 - 19.2MM
Row ID: ID__14F0371CP_ContPgHS; 		- 1 Enquire
041 12F0684CP
Banjo Bolt - M14x1.5
Row ID: ID__12F0684CP_ContPgHS; 		- 1 Enquire
042 12F0685CP
Washer - Sealing - M14
Row ID: ID__12F0685CP_ContPgHS; 		- 1 Enquire
043 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH
Row ID: ID__14F0569CP_ContPgHS; 		- 1 Enquire
046 11F2433CP
COVER - WATER PUMP - ENGINE
Row ID: ID__11F2433CP_ContPgHS; 		- 1 Enquire
047 15FA161CP
PIPE - WATER RETURN - LH - 01948991-3
Row ID: ID__15FA161CP_ContPgHS; 		- 1 Enquire
048 11F1674CP
T PIECE - DEGAS
Row ID: ID__11F1674CP_ContPgHS; 		- 1 Enquire
052 11F1955CP
SEAL - O-RING - 23.2
Row ID: ID__11F1955CP_ContPgHS; 		- 1 Enquire
054 15FA274CP
SEAL - O-RING 39.7X3.53
Row ID: ID__15FA274CP_ContPgHS; 		- 1 Enquire
055 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH
Row ID: ID__13F0828CP_ContPgHS; 		- 1 Enquire
056 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH
Row ID: ID__13F0829CP_ContPgHS; 		- 1 Enquire
