39 - Electrical Hardware - 39.2 - Brackets, Grommets & Fixings

McLaren Ultimate Series McLaren Elva

Find Your Part

McLaren Ultimate Series McLaren Elva - 39 - ELECTRICAL HARDWARE - 39.2 - BRACKETS, GROMMETS & FIXINGS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

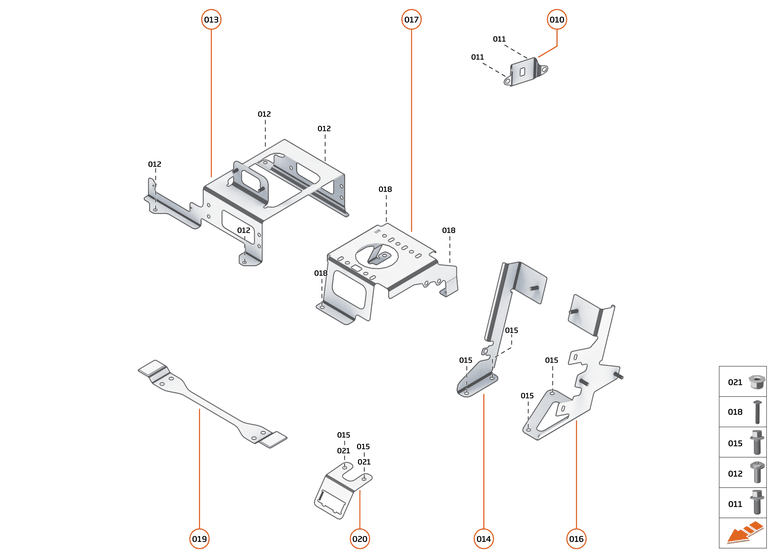

39 - ELECTRICAL HARDWARE - 39.2 - BRACKETS, GROMMETS & FIXINGS of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15MA328CP
BRACKET - ENGINE INLINE
Row ID: ID__15MA328CP_ContPgHS; 		- 1 Enquire
011 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID__00RX003_ContPgHS; 		- 2 Enquire
012 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; 		- 4 Enquire
013 26MA383SP
BRKT-INFOTAINMENT ECU
Row ID: ID__26MA383SP_ContPgHS; 		- 1 Enquire
014 15MA171CP
BRACKET - INTERIOR FUSEBOX - RH
Row ID: ID__15MA171CP_ContPgHS; 		- 1 Enquire
015 00RA064
BOLT - M5X12 - HEX
Row ID: ID__00RA064_ContPgHS; 		- 6 Enquire
016 15MA169CP
BRACKET - HARNESS CARRIER - REAR
Row ID: ID__15MA169CP_ContPgHS; 		- 1 Enquire
017 22MA276GP
ORC WIRING SUPPORT BRACKET
Row ID: ID__22MA276GP_ContPgHS; 		- 1 Enquire
018 00RA605
SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8
Row ID: ID__00RA605_ContPgHS; 		- 3 Enquire
019 14M1087CP
BRACKET - CROSS CAR HARNESS
Row ID: ID__14M1087CP_ContPgHS; 		- 1 Enquire
020 11M2477CP
BRACKET - OBD SOCKET MOUNTING
Row ID: ID__11M2477CP_ContPgHS; 		- 1 Enquire
021 00RA582
NUT - M5 - HEX
Row ID: ID__00RA582_ContPgHS; 		- 2 Enquire
