McLaren Ultimate Series McLaren Elva - 37 - WIRING HARNESS - 37.2 - BODY WIRING HARNESS

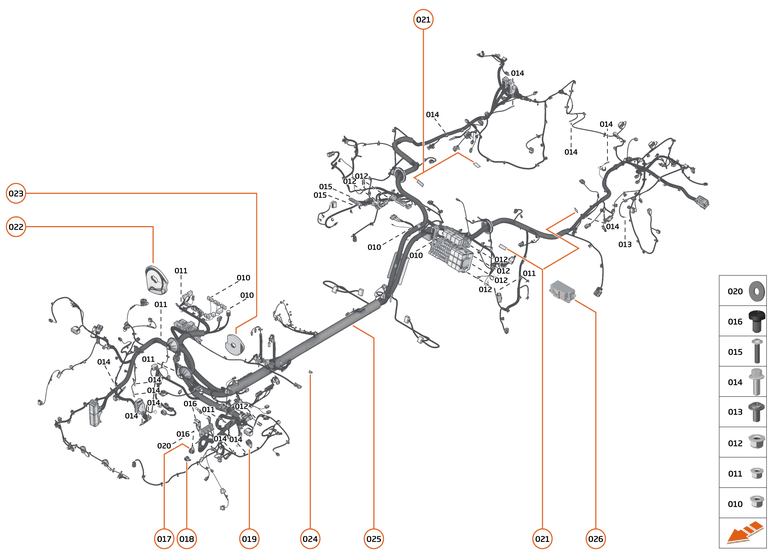

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID__00RL012_ContPgHS;	-	4	Enquire
000	00RA717	THD-INS-M6X1.0X10-M4X0.7-SS-00	00RA717 THD-INS-M6X1.0X10-M4X0.7-SS-00 Row ID: ID__00RA717_ContPgHS;	-	1	Enquire
000	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	1	Enquire
010	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	4	Enquire
011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
012	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	9	Enquire
013	00RA179	SCREW - M6X10-10.9 - BUTTON	00RA179 SCREW - M6X10-10.9 - BUTTON Row ID: ID__00RA179_ContPgHS;	-	1	Enquire
014	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	15	Enquire
015	00RA595	SCREW - BUTTON HEAD - TORX FLANGED - M3X16	00RA595 SCREW - BUTTON HEAD - TORX FLANGED - M3X16 Row ID: ID__00RA595_ContPgHS;	-	2	Enquire
015	26MA330SP	HARNESS BODY COUPE RHD	26MA330SP HARNESS BODY COUPE RHD Row ID: ID__26MA330SP_ContPgHS;	-	1	Enquire
019	00RB100	P-CLIP - DIA 30 - M6	00RB100 P-CLIP - DIA 30 - M6 Row ID: ID__00RB100_ContPgHS;	-	1	Enquire
021	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	2	Enquire
021	00RL024	TAPE - DB6002 - PERMELASTIC	00RL024 TAPE - DB6002 - PERMELASTIC Row ID: ID__00RL024_ContPgHS;	-	4	Enquire
022	11M1285CP	NVH PAD - GROMMET - UPPER	11M1285CP NVH PAD - GROMMET - UPPER Row ID: ID__11M1285CP_ContPgHS;	-	1	Enquire
023	11M2517CP	NVH PAD - GROMMET - LOWER - LHD	11M2517CP NVH PAD - GROMMET - LOWER - LHD Row ID: ID__11M2517CP_ContPgHS;	-	1	Enquire
023	11M2530CP	NVH PAD - GROMMET - LOWER - RHD	11M2530CP NVH PAD - GROMMET - LOWER - RHD Row ID: ID__11M2530CP_ContPgHS;	-	1	Enquire
025	26MA314SP	BODY HARNESS COUPE LHD	26MA314SP BODY HARNESS COUPE LHD Row ID: ID__26MA314SP_ContPgHS;	-	1	Enquire
025	26MA031CP	HARNESS BODY COUPE LHD HIGH	26MA031CP HARNESS BODY COUPE LHD HIGH Row ID: ID__26MA031CP_ContPgHS;	-	1	Enquire
025	26MA056CP	HARNESS BODY COUPE RHD HIGH	26MA056CP HARNESS BODY COUPE RHD HIGH Row ID: ID__26MA056CP_ContPgHS;	-	1	Enquire
