38 - ELECTRICAL SYSTEMS - 38.4 - ALARM SYSTEM of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 38 - ELECTRICAL SYSTEMS - 38.4 - ALARM SYSTEM

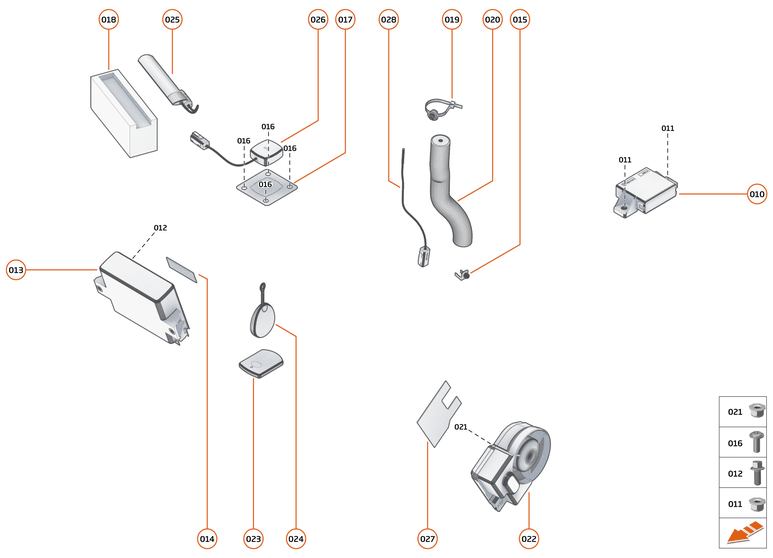

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11M1077CP	SENSOR - ALARM ANTI-TOW	11M1077CP SENSOR - ALARM ANTI-TOW Row ID: ID__11M1077CP_ContPgHS;	-	1	Enquire
011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
012	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
013	14MA885CP	CONTROL UNIT SAT TRACK 4G	14MA885CP CONTROL UNIT SAT TRACK 4G Row ID: ID__14MA885CP_ContPgHS;	-	1	Enquire
014	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
015	12M0555CP	CONNECTOR HOLDER - SINGLE	12M0555CP CONNECTOR HOLDER - SINGLE Row ID: ID__12M0555CP_ContPgHS;	-	1	Enquire
016	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	4	Enquire
017	26MA230SP	GPS MOUNTING BRACKET	26MA230SP GPS MOUNTING BRACKET Row ID: ID__26MA230SP_ContPgHS;	-	1	Enquire
018	26MA231SP	GSM ANTENNA FOAM PAD	26MA231SP GSM ANTENNA FOAM PAD Row ID: ID__26MA231SP_ContPgHS;	-	1	Enquire
019	00RL008	CABLE TIE-SF100-18X	00RL008 CABLE TIE-SF100-18X Row ID: ID__00RL008_ContPgHS;	-	1	Enquire
020	23MA444CP	FOAM FOR RF ANTENNA	23MA444CP FOAM FOR RF ANTENNA Row ID: ID__23MA444CP_ContPgHS;	-	1	Enquire
021	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	1	Enquire
022	11M1927CP	CONTROL UNIT - ALARM & SIREN	11M1927CP CONTROL UNIT - ALARM & SIREN Row ID: ID__11M1927CP_ContPgHS;	-	1	Enquire
023	11M0777CP	DRIVER CARD - SATELLITE TRACKING - RF	11M0777CP DRIVER CARD - SATELLITE TRACKING - RF Row ID: ID__11M0777CP_ContPgHS;	-	1	Enquire
024	11M1079CP	KEY FOB - TRACKER - BELGIUM	11M1079CP KEY FOB - TRACKER - BELGIUM Row ID: ID__11M1079CP_ContPgHS;	-	1	Enquire
025	11M0776CP	ANTENNA - SATELLITE TRACKING - RF	11M0776CP ANTENNA - SATELLITE TRACKING - RF Row ID: ID__11M0776CP_ContPgHS;	-	1	Enquire
026	11M0066CP	ANTENNA - SATELLITE TRACKING - VDL - GPS	11M0066CP ANTENNA - SATELLITE TRACKING - VDL - GPS Row ID: ID__11M0066CP_ContPgHS;	-	1	Enquire
027	13M1514CP	NVH - CONTROL UNIT - ALARM & SIREN	13M1514CP NVH - CONTROL UNIT - ALARM & SIREN Row ID: ID__13M1514CP_ContPgHS;	-	1	Enquire
028	14MA886CP	ANTENNA SATELLITE TRACKING - 4	14MA886CP ANTENNA SATELLITE TRACKING - 4 Row ID: ID__14MA886CP_ContPgHS;	-	1	Enquire
