22 - ENGINE - 22.8 - ELECTRICAL SYSTEM of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 22 - ENGINE - 22.8 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

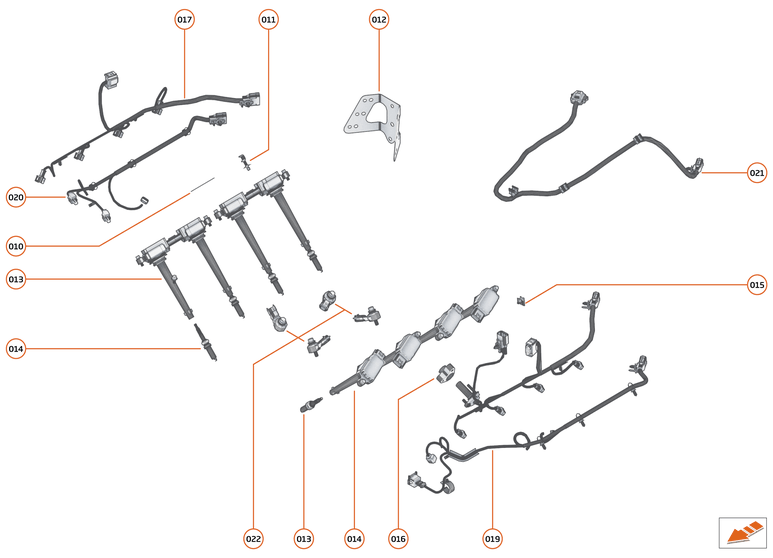

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11F1034CP	Clip - Fuel Injector - Engine	11F1034CP Clip - Fuel Injector - Engine Row ID: ID__11F1034CP_ContPgHS;	-	8	Enquire
000	11F1777CP	BOLT - M6X40 - HEX	11F1777CP BOLT - M6X40 - HEX Row ID: ID__11F1777CP_ContPgHS;	-	31	Enquire
000	11F2008CP	HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE	11F2008CP HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE Row ID: ID__11F2008CP_ContPgHS;	-	1	Enquire
000	11F2030CP	BRACKET - CAM COVER - LH - CCV - VAC	11F2030CP BRACKET - CAM COVER - LH - CCV - VAC Row ID: ID__11F2030CP_ContPgHS;	-	2	Enquire
000	12F0501CP	BREATHER ASSY - ENGINE	12F0501CP BREATHER ASSY - ENGINE Row ID: ID__12F0501CP_ContPgHS;	-	1	Enquire
000	13F0858CP	FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE	13F0858CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE Row ID: ID__13F0858CP_ContPgHS;	-	1	Enquire
000	00RB094	OETIKER CLIP - 21.0	00RB094 OETIKER CLIP - 21.0 Row ID: ID__00RB094_ContPgHS;	-	2	Enquire
000	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR Row ID: ID__00RB139_ContPgHS;	-	1	Enquire
000	00RB093	OETIKER CLIP - 16.6	00RB093 OETIKER CLIP - 16.6 Row ID: ID__00RB093_ContPgHS;	-	1	Enquire
000	00RB095	Oetiker Clip - 16.2	00RB095 Oetiker Clip - 16.2 Row ID: ID__00RB095_ContPgHS;	-	1	Enquire
010	12F0709CP	BRACKET - OIL DRAIN HOSE	12F0709CP BRACKET - OIL DRAIN HOSE Row ID: ID__12F0709CP_ContPgHS;	-	1	Enquire
011	12F0710CP	CLIP - ONE WAY - RAYMOND	12F0710CP CLIP - ONE WAY - RAYMOND Row ID: ID__12F0710CP_ContPgHS;	-	1	Enquire
012	14F0478CP	BRACKET - ENGINE HARNESS	14F0478CP BRACKET - ENGINE HARNESS Row ID: ID__14F0478CP_ContPgHS;	-	1	Enquire
013	11F1892CP	COIL- IGNITION IN STOCK	11F1892CP COIL- IGNITION Row ID: ID__11F1892CP_ContPgHS; IN STOCK	$223.39	8
014	11F1893CP	PLUG- SPARK- NGK T20231A HR8 IN STOCK	11F1893CP PLUG- SPARK- NGK T20231A HR8 Row ID: ID__11F1893CP_ContPgHS; IN STOCK	$39.97	8
015	12F0757CP	CONNECTOR MOUNT - TYCO = 368260	12F0757CP CONNECTOR MOUNT - TYCO = 368260 Row ID: ID__12F0757CP_ContPgHS;	-	1	Enquire
016	12F0726CP	SPACER - CRANK POSITION SENSOR	12F0726CP SPACER - CRANK POSITION SENSOR Row ID: ID__12F0726CP_ContPgHS;	-	1	Enquire
017	13F0769CP	HARNESS - ENGINE LINK - INJECTORS - RH	13F0769CP HARNESS - ENGINE LINK - INJECTORS - RH Row ID: ID__13F0769CP_ContPgHS;	-	1	Enquire
018	13F0770CP	HARNESS - ENGINE LINK - INJECTORS - LH	13F0770CP HARNESS - ENGINE LINK - INJECTORS - LH Row ID: ID__13F0770CP_ContPgHS;	-	1	Enquire
019	13FA018SP	HARNESS - VEE LINK - LH	13FA018SP HARNESS - VEE LINK - LH Row ID: ID__13FA018SP_ContPgHS;	-	1	Enquire
020	13FA019SP	HARNESS - VEE KINK - RH	13FA019SP HARNESS - VEE KINK - RH Row ID: ID__13FA019SP_ContPgHS;	-	1	Enquire
021	13F0768CP	HARNESS - INTAKE	13F0768CP HARNESS - INTAKE Row ID: ID__13F0768CP_ContPgHS;	-	1	Enquire
022	12F0725CP	SENSOR - ENGINE - CRANK POSITION	12F0725CP SENSOR - ENGINE - CRANK POSITION Row ID: ID__12F0725CP_ContPgHS;	-	1	Enquire
