22 - Engine - 22.11 - Engine Water Pump And Water Circuit

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 22 - ENGINE - 22.11 - ENGINE WATER PUMP AND WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

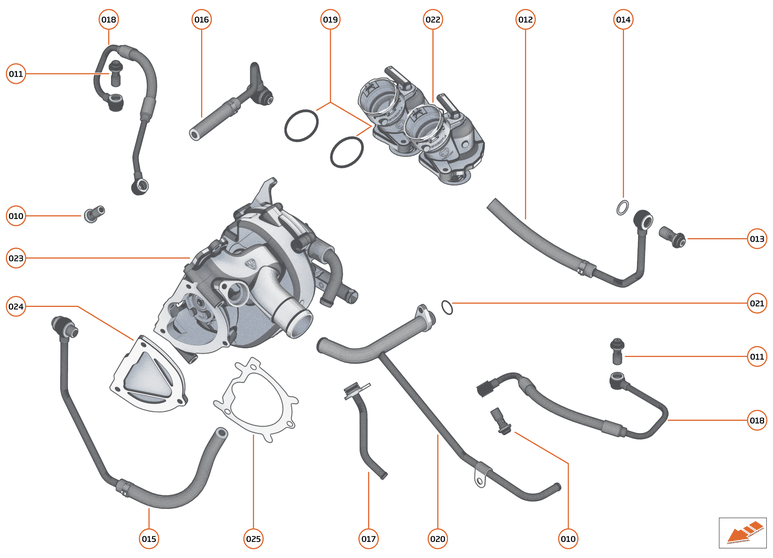

22 - ENGINE - 22.11 - ENGINE WATER PUMP AND WATER CIRCUIT of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1783CP
BOLT - M8X30 - HEX
Row ID: ID__11F1783CP_ContPgHS; 		- 4 Enquire
010 12F0671CP
BANJO BOLT - M12X1.5
Row ID: ID__12F0671CP_ContPgHS; 		- 1 Enquire
011 12F0672CP
BANJO BOLT - M12X1.25
Row ID: ID__12F0672CP_ContPgHS; 		- 1 Enquire
012 12F0487CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH
Row ID: ID__12F0487CP_ContPgHS; 		- 1 Enquire
013 12F0684CP
Banjo Bolt - M14x1.5
Row ID: ID__12F0684CP_ContPgHS; 		- 1 Enquire
014 12F0685CP
Washer - Sealing - M14
Row ID: ID__12F0685CP_ContPgHS; 		- 2 Enquire
015 12F0489CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH
Row ID: ID__12F0489CP_ContPgHS; 		- 1 Enquire
016 12F0490CP
PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH
Row ID: ID__12F0490CP_ContPgHS; 		- 1 Enquire
017 12F0680CP
STUB PIPE ASSEMBLY - TURBO WATER FEED - LH
Row ID: ID__12F0680CP_ContPgHS; 		- 1 Enquire
018 12F0488CP
PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH
Row ID: ID__12F0488CP_ContPgHS; 		- 1 Enquire
019 15FA274CP
SEAL - O-RING 39.7X3.53
Row ID: ID__15FA274CP_ContPgHS; 		- 2 Enquire
020 11F2167CP
Pipe - Heater Feed Stub
Row ID: ID__11F2167CP_ContPgHS; 		- 1 Enquire
021 11F1954CP
O-RING - 16-0X2-0
Row ID: ID__11F1954CP_ContPgHS; 		- 1 Enquire
022 13FA050CP
THERMOSTAT
Row ID: ID__13FA050CP_ContPgHS;
IN STOCK 		$243.70 2
023 12FA004CP
WATER PUMP - ENGINE - NO AC
Row ID: ID__12FA004CP_ContPgHS; 		- 1 Enquire
024 11F2433CP
COVER - WATER PUMP - ENGINE
Row ID: ID__11F2433CP_ContPgHS; 		- 1 Enquire
025 11F2434CP
GASKET SERVICE COVER WATER PUMP
Row ID: ID__11F2434CP_ContPgHS;
IN STOCK 		$15.21 1
